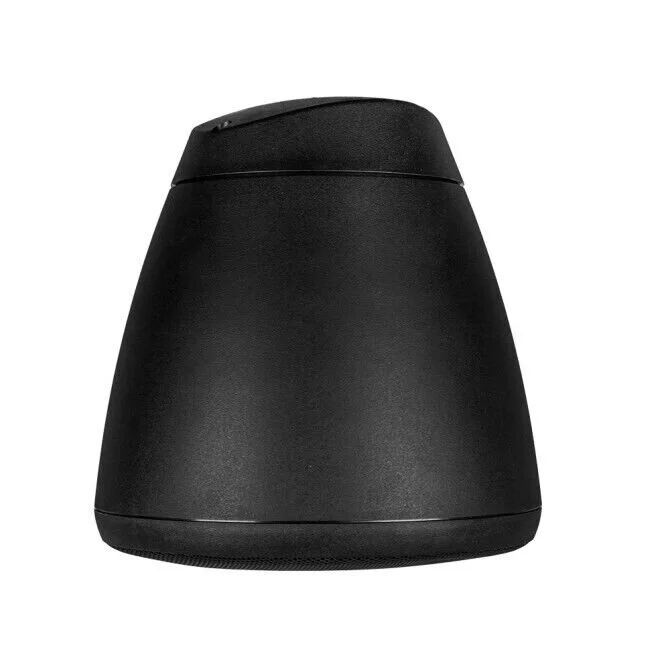

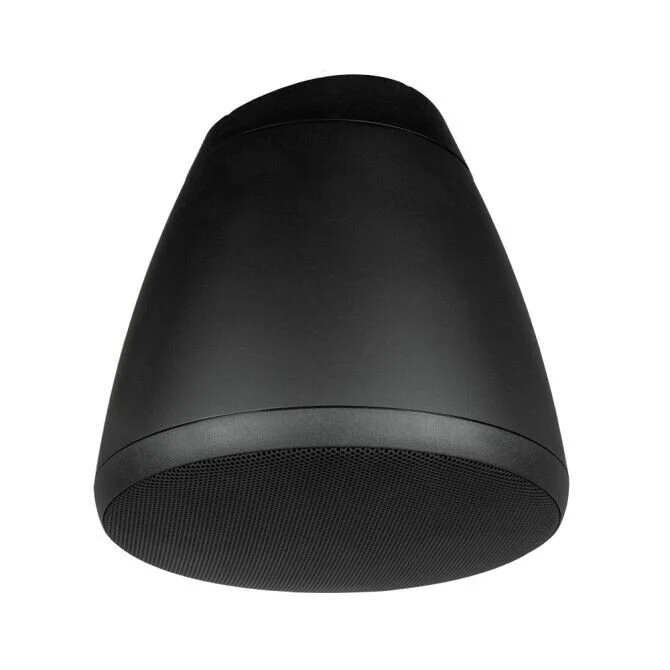

SoundTube IPD-RS62-EZ-BK 6.5" Open Ceiling Hanging Pendant Speaker w/ BroadBeam

SoundTube IPD-RS62-EZ-BK 6.5" Open Ceiling Hanging Pendant Speaker w/ BroadBeam

SoundTube IPD-RS62-EZ Dante®-enabled coaxial pendant speaker incorporates one 6.5 inch (165 mm) coaxial driver with BroadBeam Ring™ technology for consistently smooth high frequency. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications. Includes an aluminum grille with protective powder coated finish. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.

Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)

Features:

• IP addressable, self powered (PoE) speaker

• Dante I/O for interconnectivity with Dante-enabled audio systems

• One 6.5" (165mm) coaxial driver with BroadBeam Ring technology for high frequency dispersion and one 25mm (1") silk dome tweeter

• Fast connection of power, audio and control functions via one CAT5 or CAT6 cable

• 40W PoE provided by SoundTube STNet-Switch; also works with standard PoE plus and PoE switches

• Provides report-back on any problems via SoundTube software

• Weatherized components for indoor and outdoor applications

• Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate

• Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications

• Aluminum grille with protective powdercoated finish

• Unit ships in eco-friendly, recyclable packaging

• High-quality black paint finish. Speaker is paintable

Specifications:

Color: Black

UPC: 748252177186

Manufacturer: SoundTube

Manufacturer's Category: STNet IP-Addressable and Dante Series

Height: 10.4 in / 264.2 mm

Width/Diameter: 10.08 in / 256 mm

Shipping Weight: 8.9 lbs / 4.04 kg

Carton Height: 13.5 in / 342.9 mm

Carton Length: 12.25 in / 311.15 mm

Carton Width: 12 in / 304.8 mm

Certifications: CE, RoHS, UL60065, FCC

Enclosure Properties: ABS Glass Fiber Reinforced

Included Accessories: Cover Plate, Hanging Hardware, Weather Plug

Optional Accessories: Black Grille (GRL-RS62-EZ-BK)|10' Hanging Cable (AC-RS-HH-10) | 20' Hanging Cable (AC-RS-HH-20) | 50' Hanging Cable (AC-RS-HH-50) | Black Mounting Bracket (AC-RS-SM5-BK) | Beam Clamp (AC-BC1) | Forged Eye Bolt (AC-FE1) | Black Split Loom Tubing (AC-SLT-10-BK) | Snap Link (AC-SL1)

Source Inputs: RJ45 Ethernet Port

TAA Compliant (Trade America): No

BAA Compliant (Made in USA): No

Coverage Angle (±6dB @ 2kHz): 105°

Crossover Frequency: 3.0 kHz

Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz): 3.6 and 7.1

Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz): 5.5 dB and 8.5 dB

Frequency Response (± 10 dB): 80 Hz - 22 kHz

Frequency Response (± 3 dB): 100 Hz - 20 kHz

Grille Properties: Aluminum, Powder-Coated

Low Frequency Voice Coil: 1 in / 25.4 mm

Low Pass Crossover: 12 dB per octave 2nd order

Max SPL @ 1M: 104 dB

Max. Program Power: 64 W

Network Type: High Pass: 6 dB per octave 1st order

Tweeter Driver: 1" Silk Dome w/ BroadBeam Ring®

Woofer Driver: 6.5" Polypropylene Cone w/ Butyl Rubber Surround

Tap Selector: Rotary Switch
