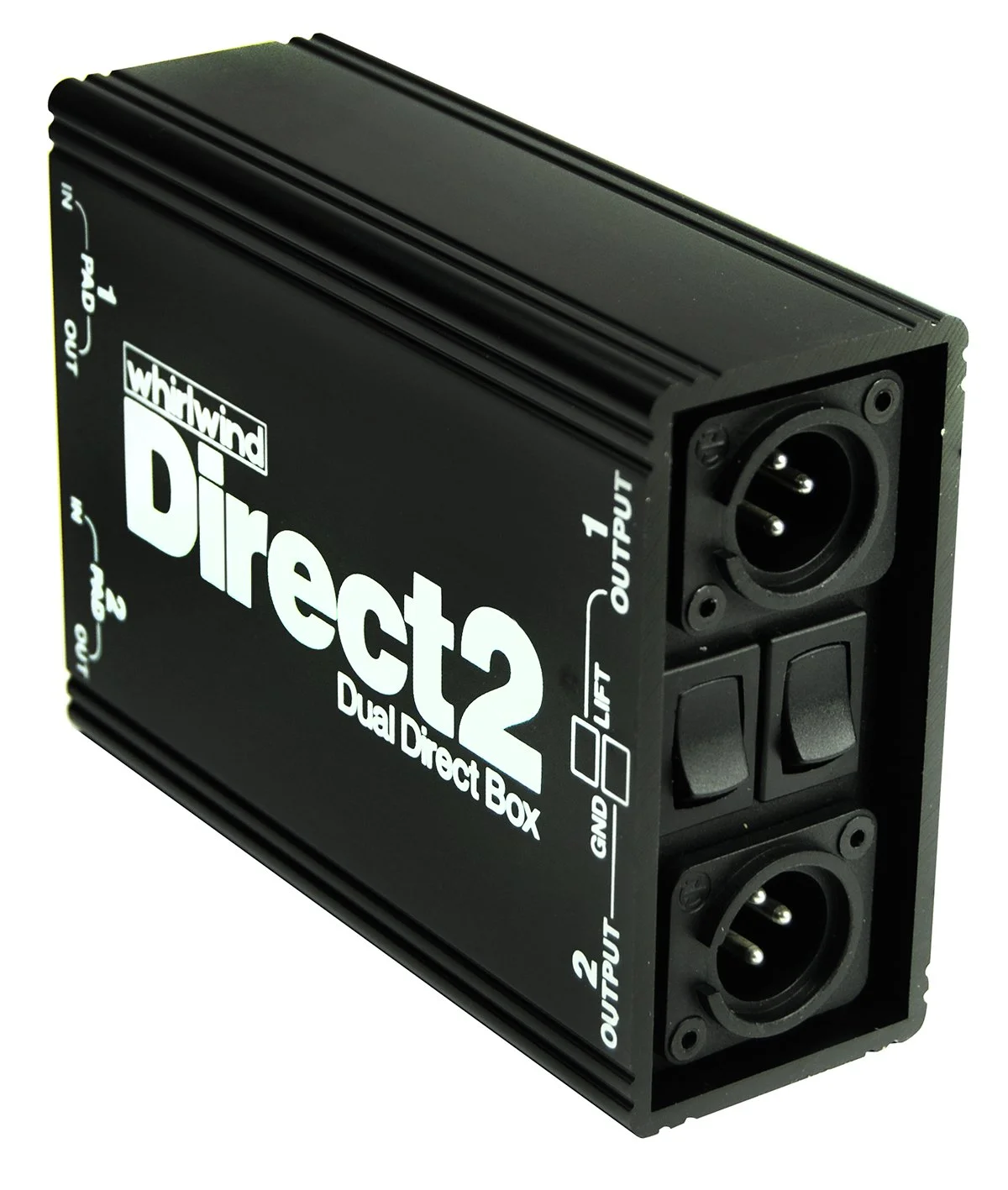

Whirlwind Direct2 DI Box Convert Computer Keyboard, Acoustic Preamp to balanced
Made in USA
The DIRECT2 combines features found on two of our DIRECTOR ® direct boxes in one unit.
Perfect for converting unbalanced signals from stereo keyboards, acoustic guitar preamps, CD and tape players, computer sound cards, etc.
Description
Each section features:
1/4" parallel wired in/out jacks
Ground Lift switch to help eliminate hum and buzz
-20dB pad switch for connection to "hot" input signals
Uses Whirlwind's TRHL-M transformer with metal shield
The input and output grounds of each section are isolated from each other. This allows the DIRECT2 to be used as if it were two completely separate DIs without fear of creating ground loop interaction.
Model # - DIRECT2
Impedance Ratio (input to output per channel): 133:1 Frequency Response: 20Hz-20kHz ±1dB
Level Change (input to output): -20dB (pad out), -40dB (pad in)
