Adaptive Technologies ATM FLY-WA BC3-8 Beam Clamp

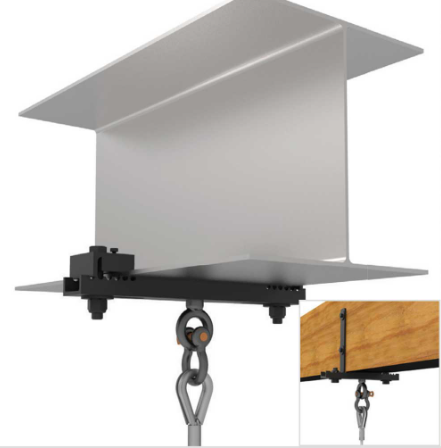

Standard, pre-engineered channel style beam clamps anchor to a building’s beam structure and offer a safe and predictable method for suspending objects from overhead. This channel style beam clamp is adjustable, mounts flush underneath the beam’s flange and provides a centrally located mounting hole for use with many types of connections, including all-thread, yokes and U-Brackets, truss clamps, Unistrut, etc.

Use the BC3-8 channel style beam clamp to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 3” and 8” (76-203mm). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.

Key Features

• Single center hang points

• Provides safe load-rated hang points

• Clamps securely to beam flanges ranging from 3” – 8”

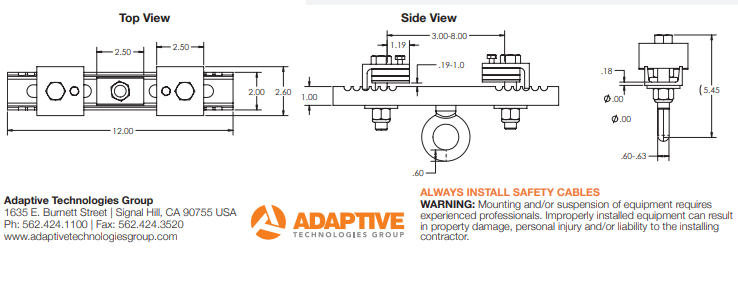

  Specifications

  SPECIFICATIONS PACKAGE CONTENTS

  Material: Structural C-Channel 1 pc 3”-8” Beam Clamp Channel

  Finish: Powder Coat 2 pcs Locking Angle Plate

  Color: Black 2 pcs Flat Washer, 5/8”

  Design Factor:5:1 2 pcs Nyloc Nut, 5/8-11

  WLL: 2100 lbs / 953 Kg. on metal beams and 300lb / 136kg max on wooden beams

  45 Degree WLL 1680 lb / 762.0352 Kg

  Shipping Weight: 3.2 lbs / 1.45 Kg.

  Optional Accessories

  See Gimballed Beam Clamp

  BC-LAM-KIT for wooden beams
