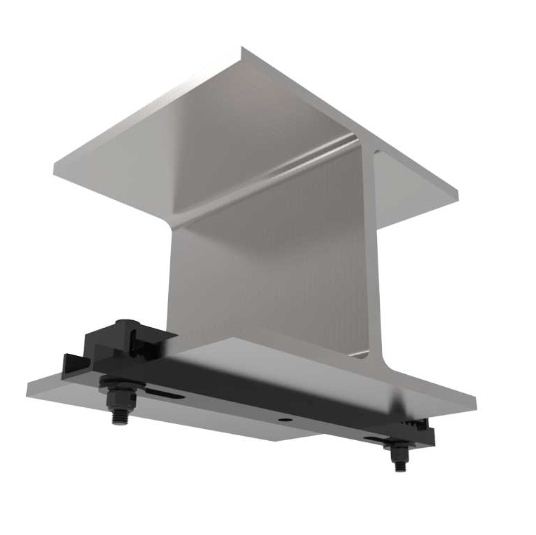

Provides a load rated overhead rigging point from structural I-Beams with flange widths ranging between 12” and 17” (304-431mm ). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.
NOTE: Recommended torque = 40-50 ft/lb
Standard Features
Single center hang points for 1/2″ to 5/8″ dia. threaded rod.
Provides safe load-rated hang points
Clamps securely to beam flanges ranging from 12″ – 17″
Specifications
SPECIFICATIONS PACKAGE CONTENTS
Material: All Steel Components 1 pc 12”-17” Beam Clamp Channel
Width: 12” to 17” 2 pcs Locking Angle Plate
WLL:980 lbs / 445 Kg. 2 pcs Flat Washer, 5/8”
Finish: Powder Coat 2 pcs Nyloc Nut, 5/8-11
Color: Black
Design Factor: 5:1
Shipping Weight:7.29 lb / 3.3 Kg
Provides a load rated overhead rigging point from structural I-Beams with flange widths ranging between 12” and 17” (304-431mm ). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.
NOTE: Recommended torque = 40-50 ft/lb
Standard Features
Single center hang points for 1/2″ to 5/8″ dia. threaded rod.
Provides safe load-rated hang points
Clamps securely to beam flanges ranging from 12″ – 17″
Specifications
SPECIFICATIONS PACKAGE CONTENTS
Material: All Steel Components 1 pc 12”-17” Beam Clamp Channel
Width: 12” to 17” 2 pcs Locking Angle Plate
WLL:980 lbs / 445 Kg. 2 pcs Flat Washer, 5/8”
Finish: Powder Coat 2 pcs Nyloc Nut, 5/8-11
Color: Black
Design Factor: 5:1
Shipping Weight:7.29 lb / 3.3 Kg
