Provides two offset load rated rigging points from structural I-Beams with flange widths ranging between 12” and 17” (304-431 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches. A hand wrench is all that is required to secure the clamp to the beam. *IMPORTANT – Beam flanges must be parallel to the floor to achieve the stated safe working loads.
Standard Features
For Beam Flanges 12″-17″
Two load-rated suspension points
Clamps quickly / permanently to I-Beams
Specifications
SPECIFICATIONS PACKAGE CONTENTS
Material: All Steel Components 2 pcs 5/8” eye nut
Width:(BC12-17-2) 12” to 17” / 304mm to 406mm 1 pc Channel Clamp
WLL:980 lb / 445 Kg WLL (VERTICAL)
Finish: Powder Coat
Color: Black
Design Factor: 5:1
45 DEG. 578 lb / 261 Kg
Provides two offset load rated rigging points from structural I-Beams with flange widths ranging between 12” and 17” (304-431 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches. A hand wrench is all that is required to secure the clamp to the beam. *IMPORTANT – Beam flanges must be parallel to the floor to achieve the stated safe working loads.
Standard Features
For Beam Flanges 12″-17″
Two load-rated suspension points
Clamps quickly / permanently to I-Beams
Specifications
SPECIFICATIONS PACKAGE CONTENTS
Material: All Steel Components 2 pcs 5/8” eye nut
Width:(BC12-17-2) 12” to 17” / 304mm to 406mm 1 pc Channel Clamp
WLL:980 lb / 445 Kg WLL (VERTICAL)
Finish: Powder Coat
Color: Black
Design Factor: 5:1
45 DEG. 578 lb / 261 Kg
(585) 405-4375
contact@echotonemusic.net

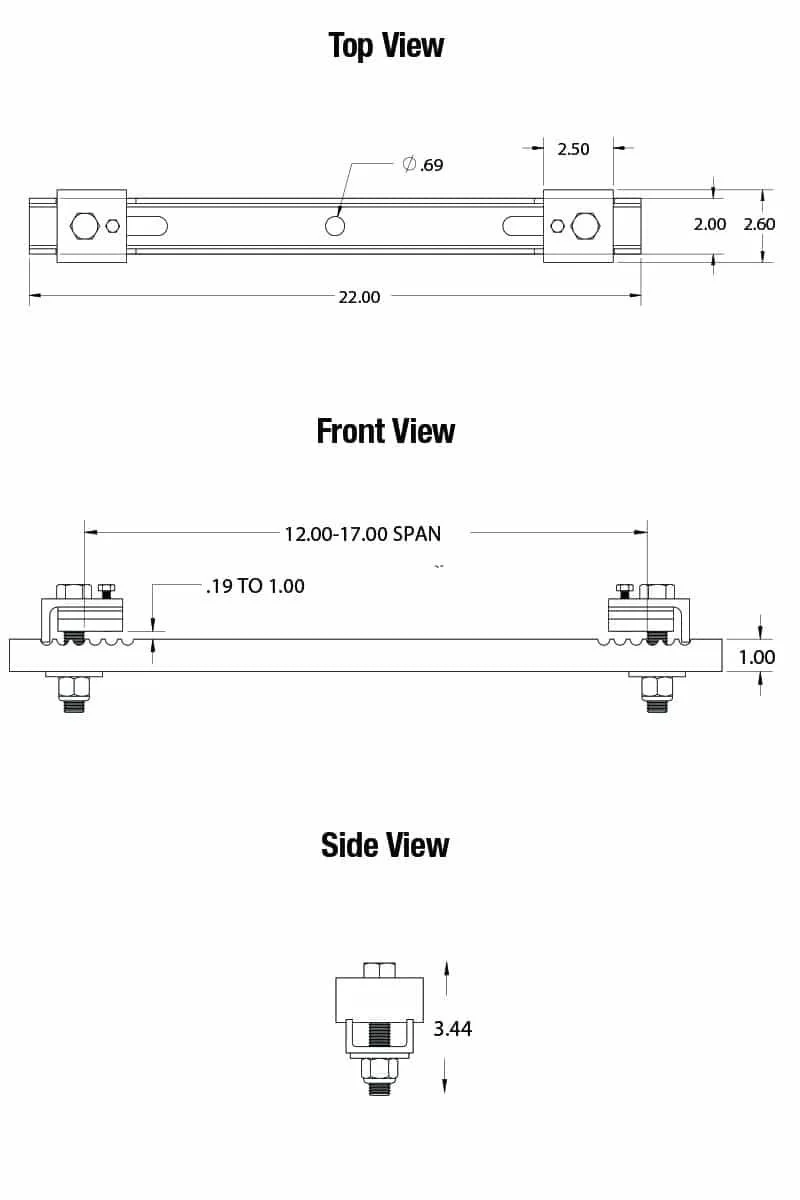

Image 1 of 2
