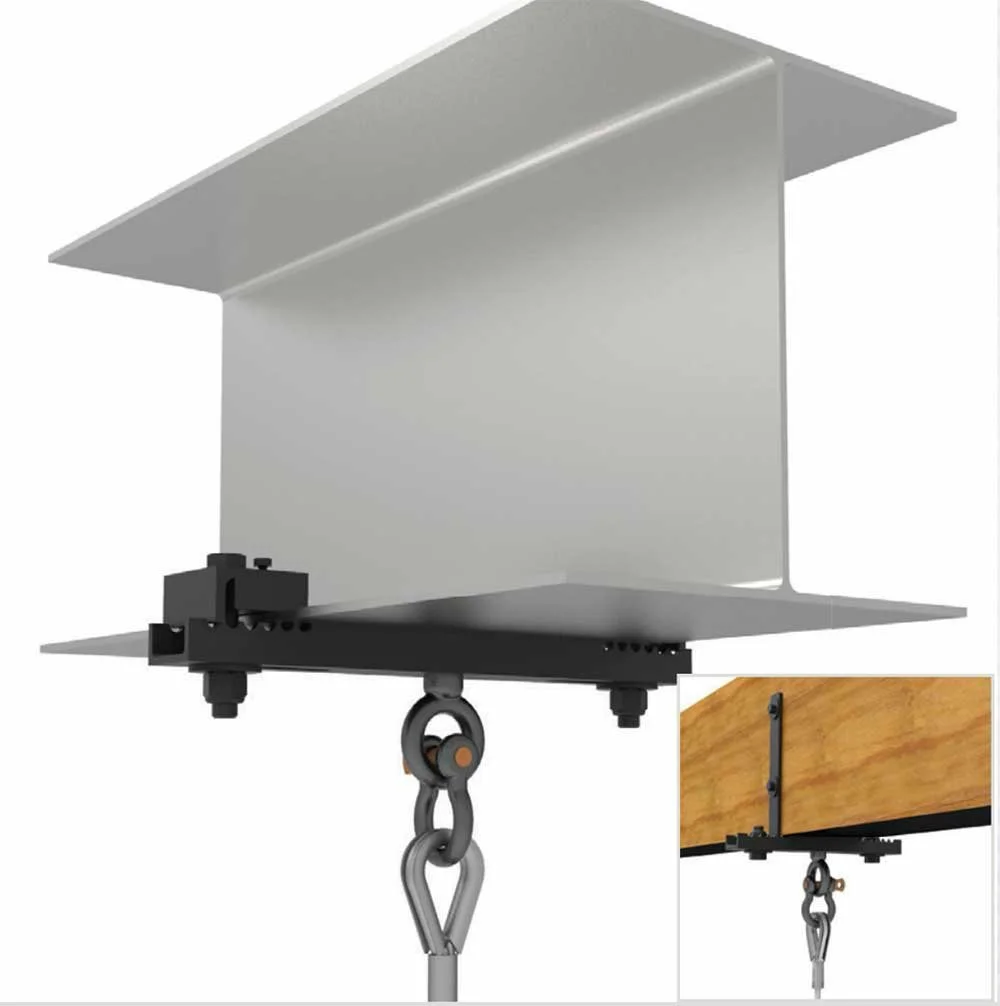

Standard, pre-engineered channel style beam clamps anchor to a building’s structure and offer a safe and predictable method of rigging grids, clusters, arrays and other objects from overhead. This channel style beam clamp is adjustable and mounts flush underneath the building’s I-Beams flanges. It comes equipped with a centrally located rigging point for suspending objects from wire rope, rigging chain, spansets, etc.
Use one of two channel style beam clamps to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 12” 17”(305mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor to achieve the stated working loads.
Key Features
Single load-rated center hang point
Provides safe load-rated hang point to 45° off center.
Two models secure to beam flanges ranging from 12” – 17” / 305mm to 432mm
SPECIFICATIONS PACKAGE CONTENTS
Materials: All Steel Components 1 pc Beam Clamp Channel
Width: (BC12-17) 12” to 17” / 305mm to 432mm 1 pc Locking Angle Plate
Finish: Powder Coat 2 pcs Flat Washer, 5/8”
Color: Black 2 pcs Nyloc Nut, 5/8-11
WLL: 980 lb / 445 Kg WLL (VERTICAL) on metal beams and 300lb / 136kg max on wooden beams 2 pcs 1/4” spacer
Standard, pre-engineered channel style beam clamps anchor to a building’s structure and offer a safe and predictable method of rigging grids, clusters, arrays and other objects from overhead. This channel style beam clamp is adjustable and mounts flush underneath the building’s I-Beams flanges. It comes equipped with a centrally located rigging point for suspending objects from wire rope, rigging chain, spansets, etc.
Use one of two channel style beam clamps to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 12” 17”(305mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor to achieve the stated working loads.
Key Features
Single load-rated center hang point
Provides safe load-rated hang point to 45° off center.
Two models secure to beam flanges ranging from 12” – 17” / 305mm to 432mm
SPECIFICATIONS PACKAGE CONTENTS
Materials: All Steel Components 1 pc Beam Clamp Channel
Width: (BC12-17) 12” to 17” / 305mm to 432mm 1 pc Locking Angle Plate
Finish: Powder Coat 2 pcs Flat Washer, 5/8”
Color: Black 2 pcs Nyloc Nut, 5/8-11
WLL: 980 lb / 445 Kg WLL (VERTICAL) on metal beams and 300lb / 136kg max on wooden beams 2 pcs 1/4” spacer
