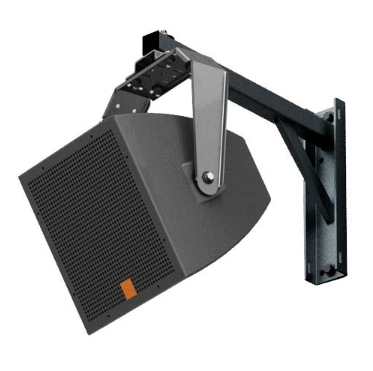

The SAS-200-24 is an efficient, load rated universal wall arm system for mounting objects, such as loudspeakers weighing up to 200 lb/91 kg to walls & other vertical structures. Loudspeaker can easily be attached and aimed from walls and other vertical structures by way of the U-bracket or Yoke with ease of installation and flexibility in adjustment.
This all structural steel alloy assembly is ready to accomodate most Yoke or U-brackets mounts. The SAS-200-24 comes with hardware and is available in a black, powder coat finish for indoor use or galvanized finish for outdoor use.
Standard Features
Accomodates loudspeaker, lighting and theatrical
Yoke mounts
Mounts to walls and other vertical structural surfaces
Significant reductions in installation and planning time
Minimal wall surface area required
Accomodates standard Yoke and U-Series assemblies
Specifications
Material: Structural Steel only 1 pc Wall arm
Finish: Powder Coat 1 pc Hardware Kit
Color: Black Hardware for mounting to the wall
structure
is not included.
Tilt mechanism is sold separately.
WLL: 200 lb. / 91 kg
Design Factor: 7:1 ratio
Net Weight: 16 lb. / 7.3 Kg
Shipping Weight: 18 lb. / 8.2 Kg
Pack Count: 1 per carton
The SAS-200-24 is an efficient, load rated universal wall arm system for mounting objects, such as loudspeakers weighing up to 200 lb/91 kg to walls & other vertical structures. Loudspeaker can easily be attached and aimed from walls and other vertical structures by way of the U-bracket or Yoke with ease of installation and flexibility in adjustment.
This all structural steel alloy assembly is ready to accomodate most Yoke or U-brackets mounts. The SAS-200-24 comes with hardware and is available in a black, powder coat finish for indoor use or galvanized finish for outdoor use.
Standard Features
Accomodates loudspeaker, lighting and theatrical
Yoke mounts
Mounts to walls and other vertical structural surfaces
Significant reductions in installation and planning time
Minimal wall surface area required
Accomodates standard Yoke and U-Series assemblies
Specifications
Material: Structural Steel only 1 pc Wall arm
Finish: Powder Coat 1 pc Hardware Kit
Color: Black Hardware for mounting to the wall
structure
is not included.
Tilt mechanism is sold separately.
WLL: 200 lb. / 91 kg
Design Factor: 7:1 ratio
Net Weight: 16 lb. / 7.3 Kg
Shipping Weight: 18 lb. / 8.2 Kg
Pack Count: 1 per carton
