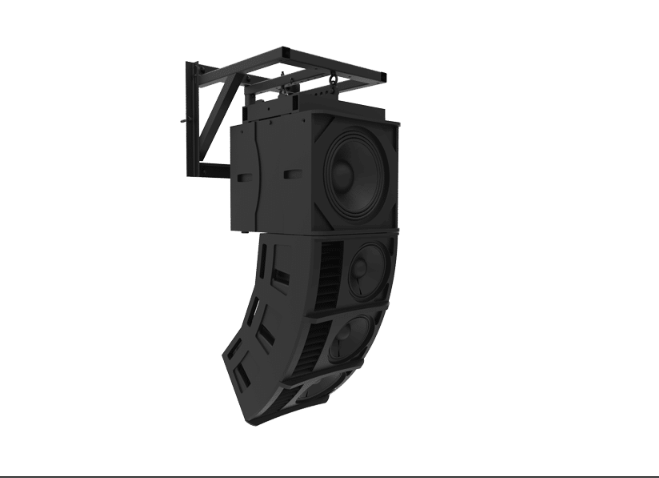

Adaptive Technologies SAS-500-WM Steerables Line Array Wall Mount

The Steerables® Line Array Wall Mount installs and aims line arrays on either side of a stage or building. It’s heavy black powder-coated steel framework assures safe installations and installs permanently. Line Arrays suspend from their own overhead rigging points, which allows for the desired tilt angle. Pan angles, up to 45 degrees left or right are achieved by way of an upper cross arm to aim the line array into the desired angle. An outdoor version, the SAS-500-WM-G, comes in a weather rated galvanized finish.


Standard Features

• Permanently supports small & mid-size line arrays

• Easy installation – goes up in minutes

• Provides up to 45 degrees of pan angle

• Utilizes the Line Array’s grid for down tilt

• Rugged black powder coat finish

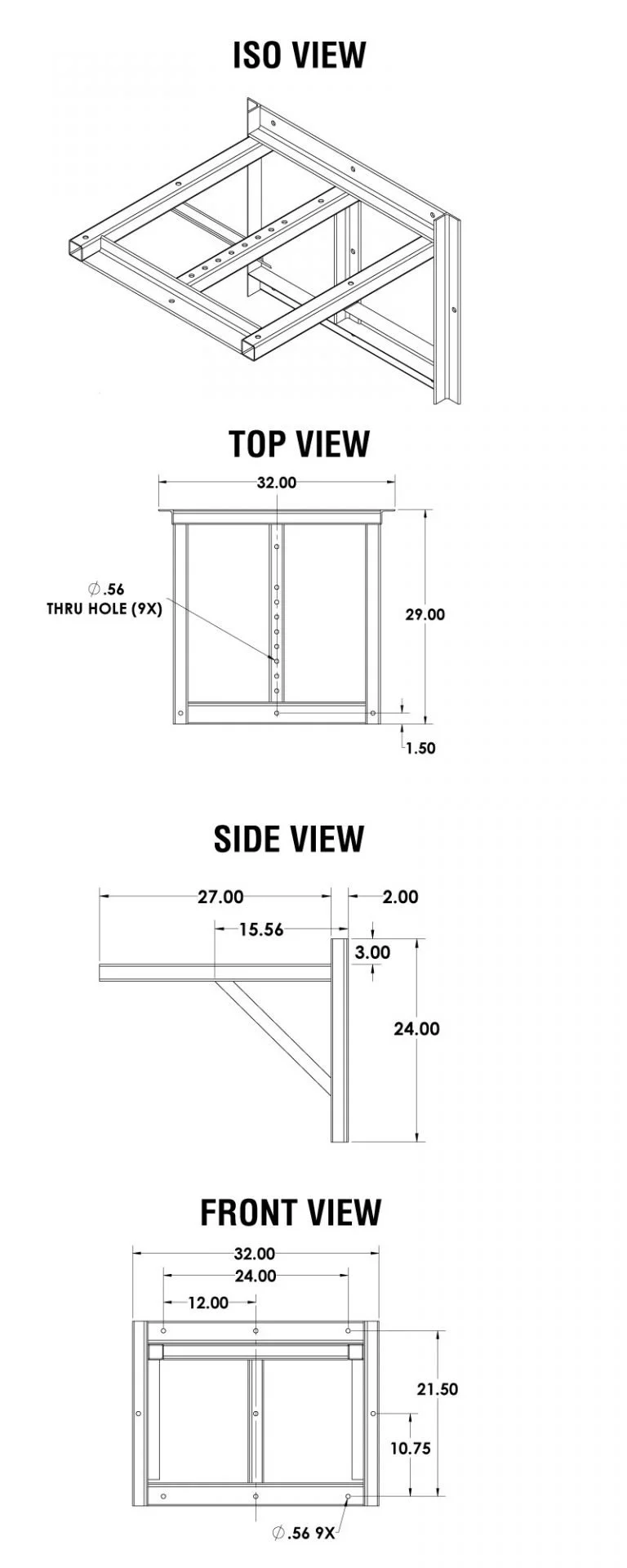

  Specifications

  Material: Structural alloy steel shapes1 pc Steerables Wall Mount FrameFinish:Black Powder Coat1 pc Cross Arm KitColor: BlackPan Angle: Up to +/- 45 degreesTilt Angle: See line array specificationsWLL: 500 lb./227 KgDesign Factor: 5:1Content: 1/carton
