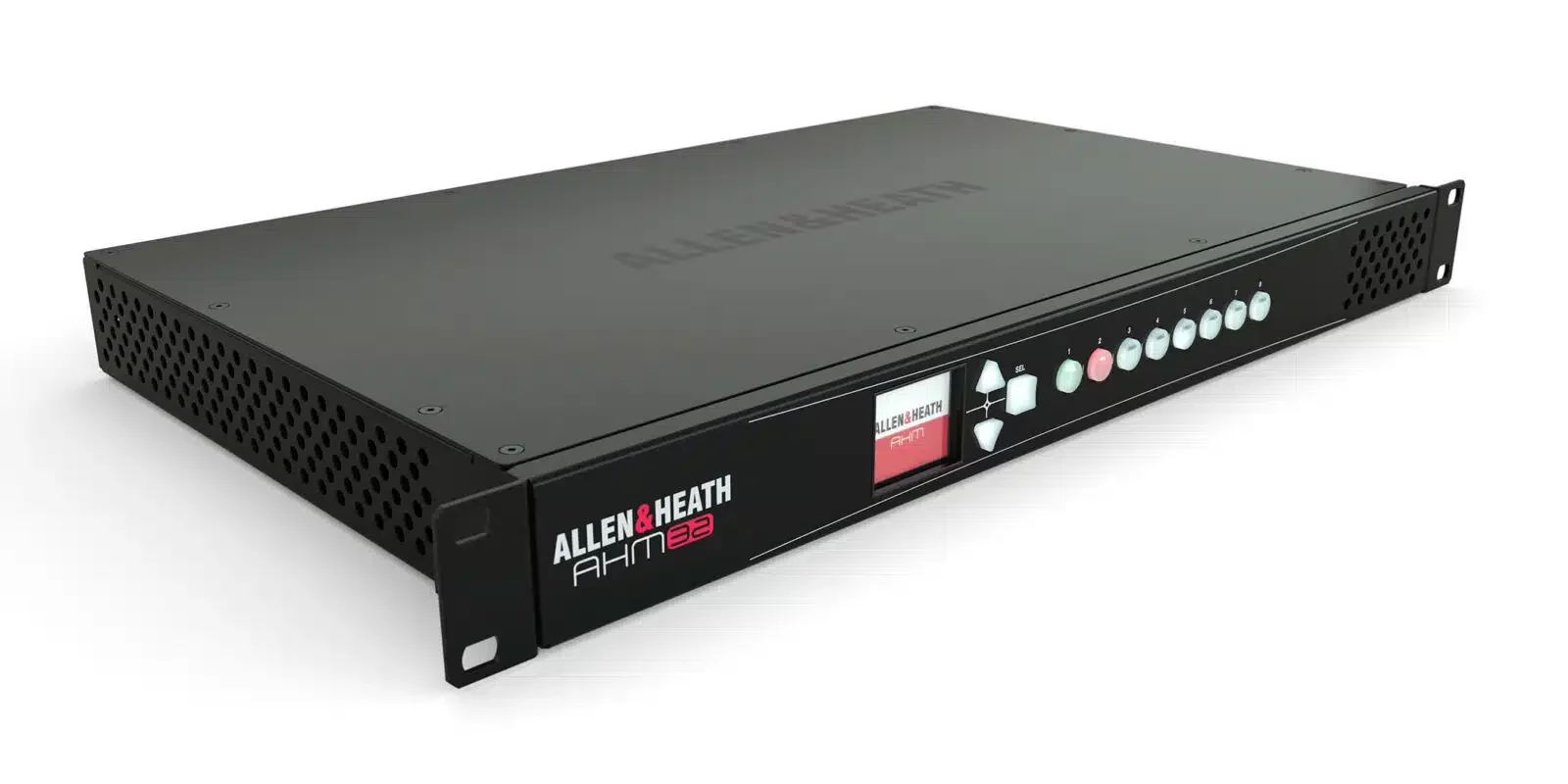

Allen & Heath AHM-32 Audio Matrix Processor
With 32 zone outputs, built-in echo cancelling, and flexible audio networking options, the AHM-32 is ideal for multi-room installations in hospitality, corporate, and education environments. Designed for ultimate sound management and control, it delivers exceptional flexibility, power, and performance.
Key Features
32×32 Processing Matrix: Flexible routing with configurable processing on all 32 outputs
12×12 Local Analogue I/O: 12 mic/line inputs and 12 relay-protected line outputs on Phoenix connectors
Audio Networking I/O Port: Card options include Dante, MADI, Waves, and SLink for up to 128×128 audio channels
Sound Management Tools
4× Automatic Mic Mixers
Ambient Noise Compensation (ANC)
Priority Ducking
8-band PEQ, dynamics, and delay on every input and zone
Advanced speaker processing with crossover filters, delay, limiter, PEQ, and All-Pass Filters
NTP support and EQ ganging (Relative, Absolute, and Mirrored)
Always In Control
The AHM-32 includes a front-panel screen and 8 programmable SoftKeys for intuitive volume control, source selection, and preset recall. Integration options include remote controllers, GPIO, and third-party control via TCP/IP with Crestron, AMX, and Extron drivers.
Acoustic Echo Cancellation (AEC)
The optional AEC module provides 12 channels of acoustic echo cancellation—ideal for teleconferencing and videoconferencing applications.
Additional Highlights
96 kHz FPGA Core with ultra-low latency
Integrated stereo playback
Compatible with IP1, IP6, and IP8 remote controllers
2×2 local GPIO plus networkable GPIO interface
Mac/Windows System Manager software
Custom Control app and editor for BYOD environments
16 user profiles and built-in event scheduler
