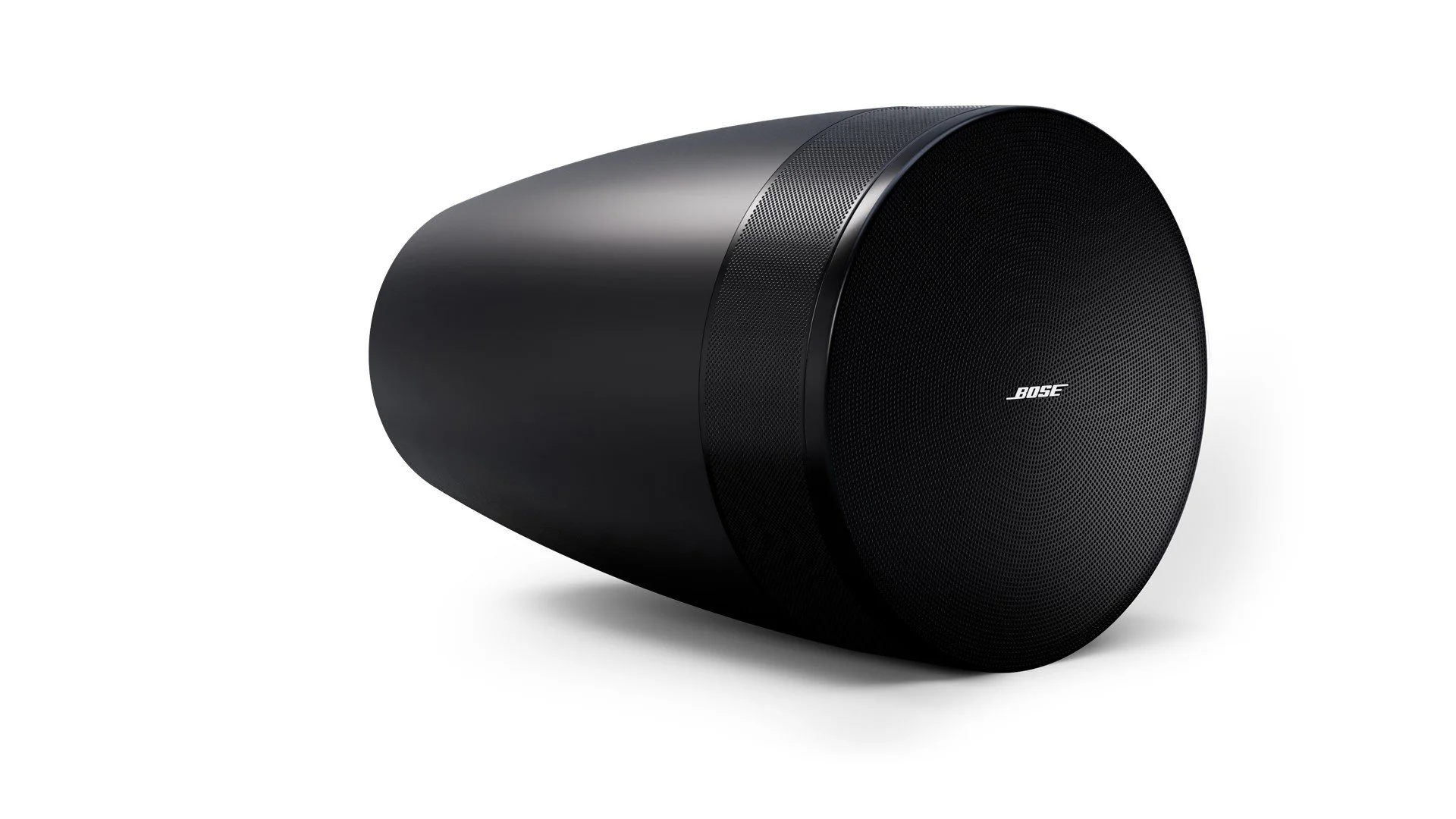

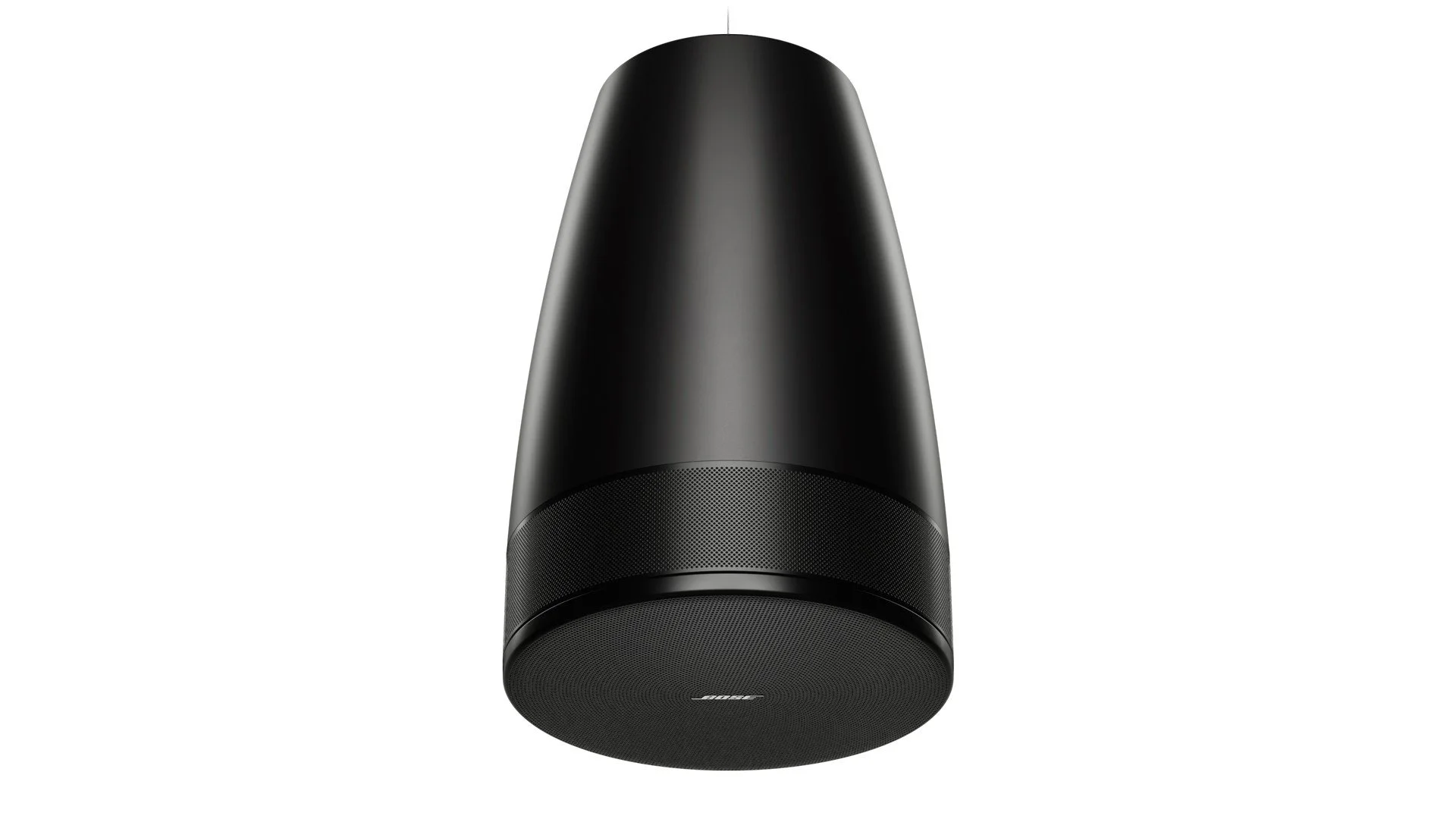

DesignMax Luna makes it easy to get great sound in open-ceiling spaces. The proprietary Ring Array™ configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs — even in challenging ceiling conditions — while concealed wiring keeps everything looking clean.
Luna marks a giant leap forward in pendant loudspeakers, raising the bar for what’s sonically possible in retail stores, restaurants, fitness studios, and other design-conscious spaces. Best in show at Infocomm.
Features
Proprietary Ring Array™ configuration delivers precise, balanced sound with no hot spots or dead zones
Integrated 8” woofer extends down to 40 Hz—no subs needed
Wide-throw 140° coverage reduces speaker count and installation costs

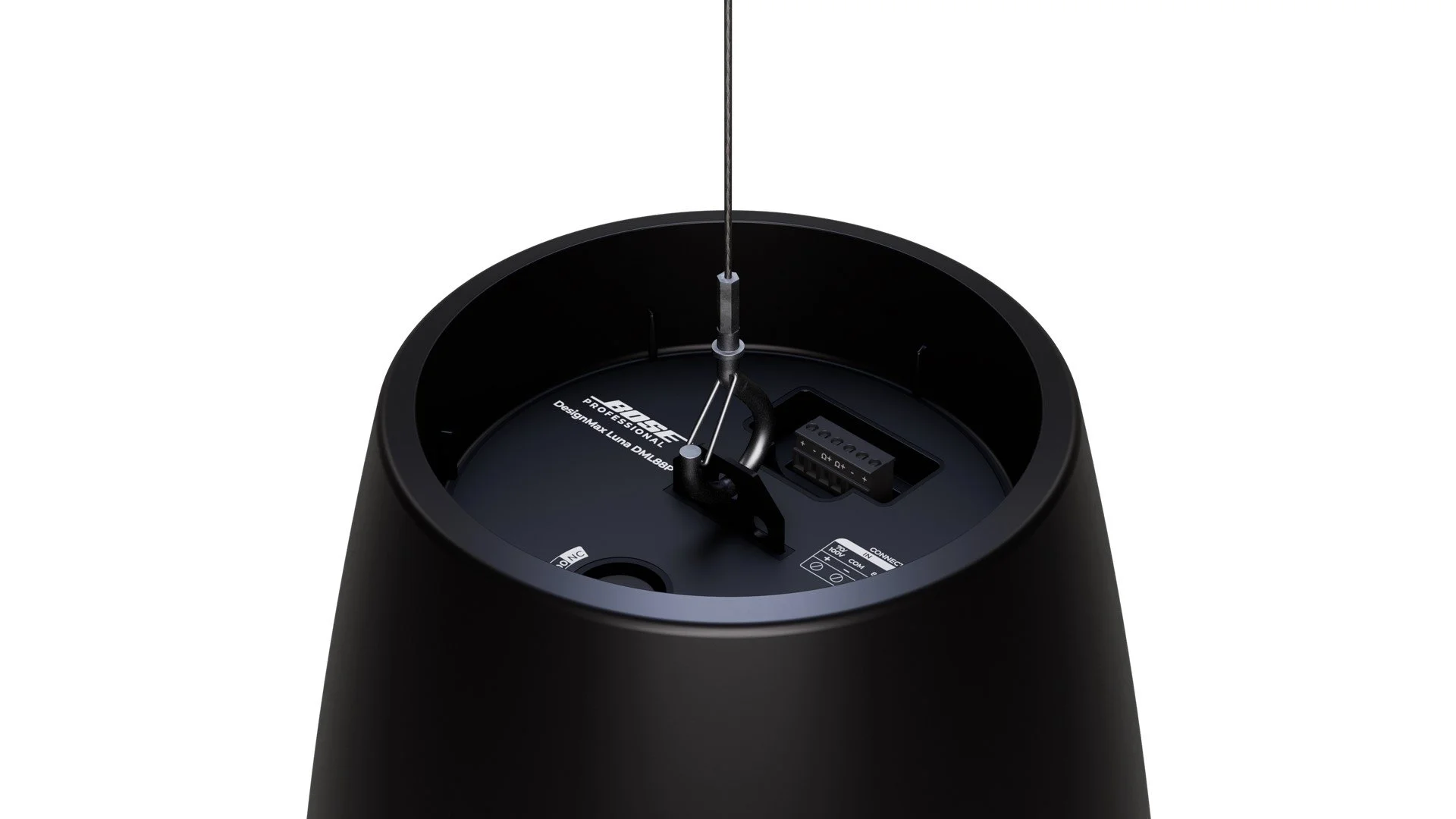

Flexible mounting lets you use a single cable—or two-point suspension—for fast installs and perfectly balanced hangs
Streamlined design with concealed wiring and premium finish options
Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
Compatible accessories include DesignMax Pendant Threaded Rod Adapter and Conduit Adapter
Designed for a wide range of applications, including:
Retail stores
Restaurants and breweries
Fitness clubs and studios
Amusement and recreation spaces
Education and gymnasiums
COMPLIANCE

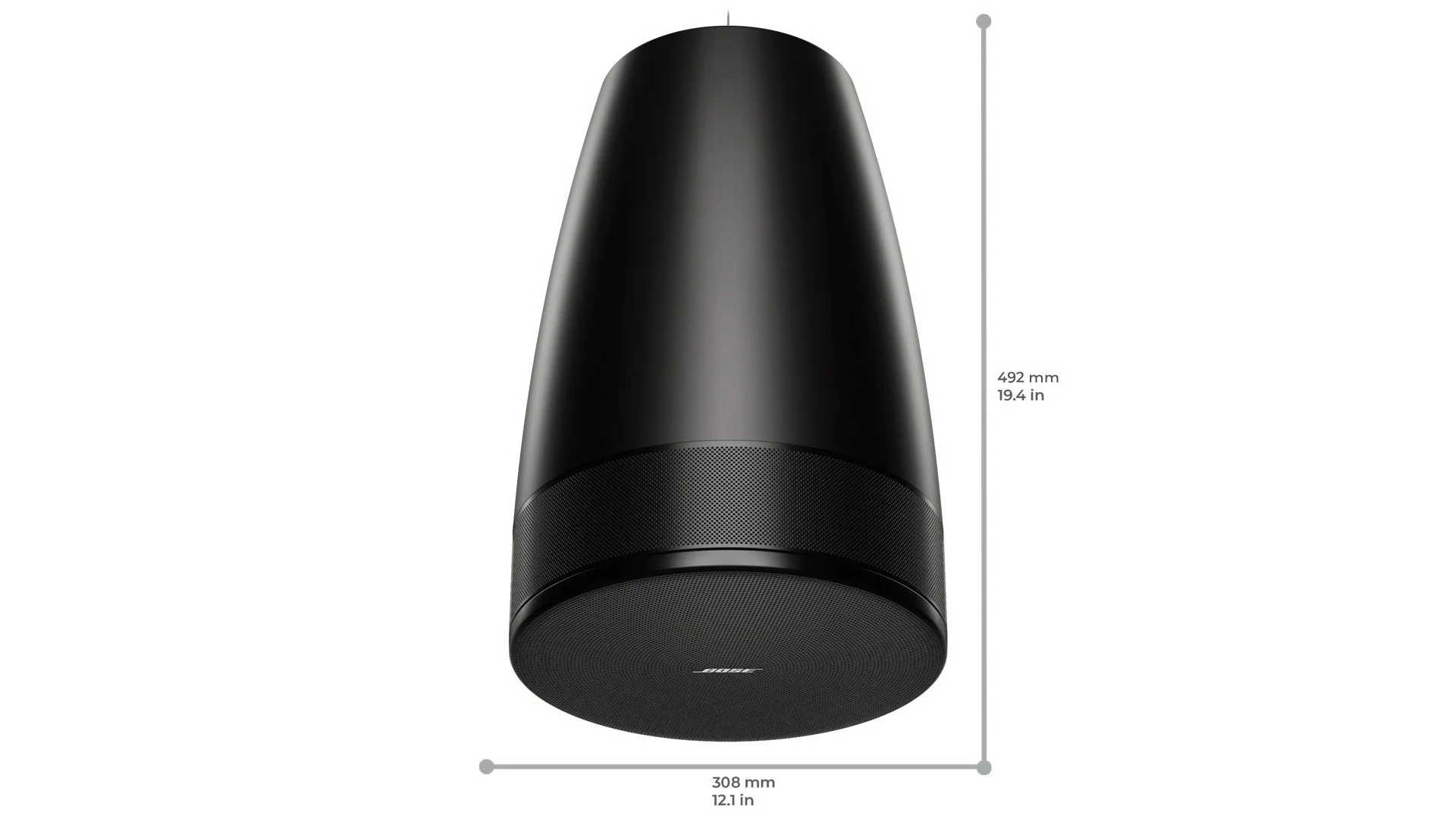

Product Dimensions (H×W×D)
308 mm × 492 mm (12.1 in × 19.4 in), loudspeaker diameter x depth
Net Weight
10.0 kg (22.0 lb)
PERFORMANCE
Frequency Range (-10 dB)
40 Hz – 20,000 Hz
Coverage, Horizontal
140° conical
Calculated Maximum SPL @ 1 m
107 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
140 W
Power Handling, Peak
560 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
85 dB

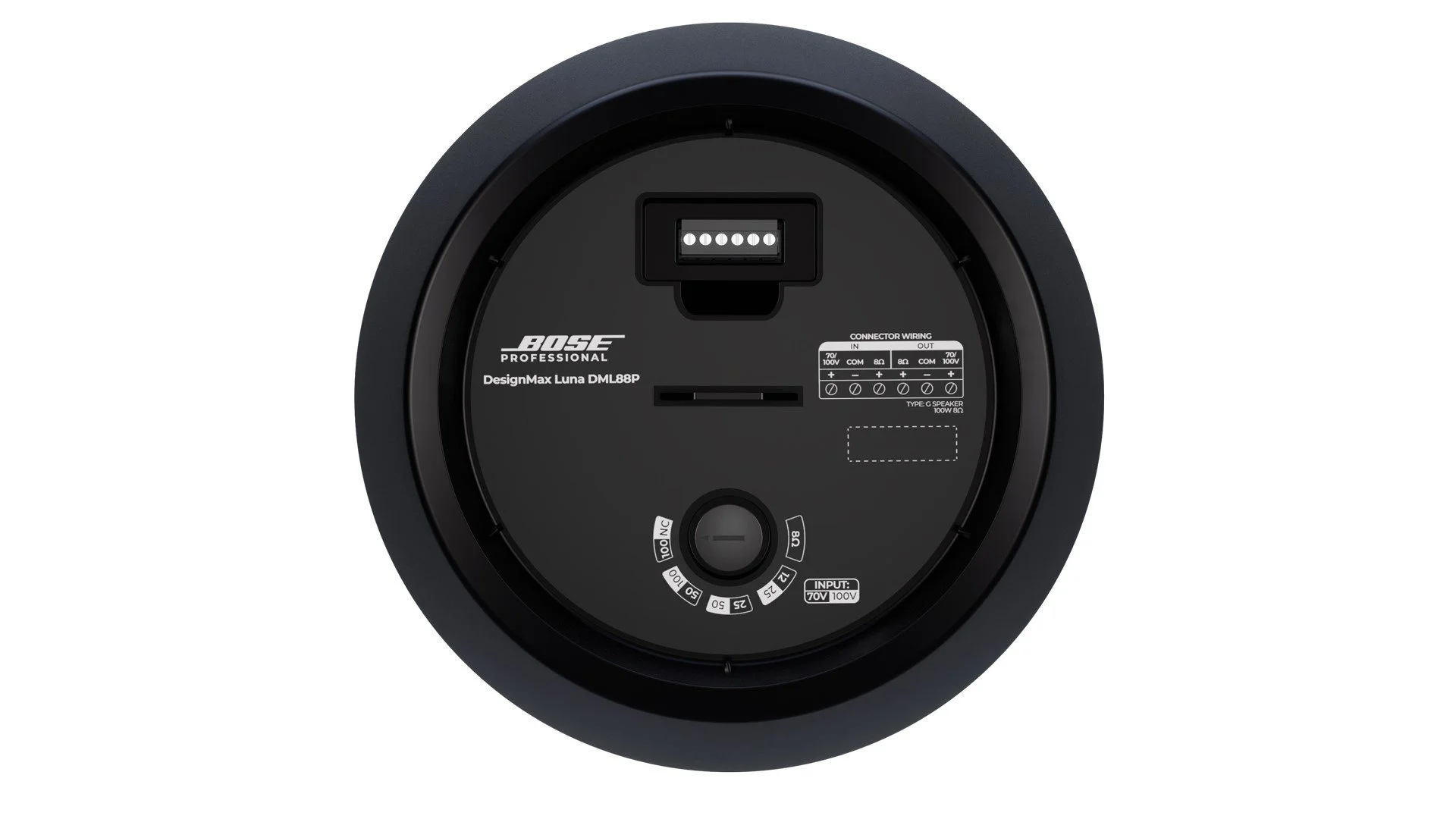

Transformer Taps, 100V
25 W, 50 W, 100 W, bypass
Transformer Taps, 70V
12 W, 25 W, 50 W, 100 W, bypass
TRANSDUCERS
High-Frequency
8 × 2.0-in (51 mm) drivers in circular array Low-Frequency
Low-Frequency
1 × 8 in (203 mm) woofer
Included in Packaging
(1) DesignMax Luna DML88P
(1) connection panel cover
(1) adjustable suspension cable system
(4) cable ties
(1) installation guide
DesignMax Luna makes it easy to get great sound in open-ceiling spaces. The proprietary Ring Array™ configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs — even in challenging ceiling conditions — while concealed wiring keeps everything looking clean.
Luna marks a giant leap forward in pendant loudspeakers, raising the bar for what’s sonically possible in retail stores, restaurants, fitness studios, and other design-conscious spaces. Best in show at Infocomm.
Features
Proprietary Ring Array™ configuration delivers precise, balanced sound with no hot spots or dead zones
Integrated 8” woofer extends down to 40 Hz—no subs needed
Wide-throw 140° coverage reduces speaker count and installation costs
Flexible mounting lets you use a single cable—or two-point suspension—for fast installs and perfectly balanced hangs
Streamlined design with concealed wiring and premium finish options
Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
Compatible accessories include DesignMax Pendant Threaded Rod Adapter and Conduit Adapter
Designed for a wide range of applications, including:
Retail stores
Restaurants and breweries
Fitness clubs and studios
Amusement and recreation spaces
Education and gymnasiums
COMPLIANCE
Product Dimensions (H×W×D)
308 mm × 492 mm (12.1 in × 19.4 in), loudspeaker diameter x depth
Net Weight
10.0 kg (22.0 lb)
PERFORMANCE
Frequency Range (-10 dB)
40 Hz – 20,000 Hz
Coverage, Horizontal
140° conical
Calculated Maximum SPL @ 1 m
107 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
140 W
Power Handling, Peak
560 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
85 dB
Transformer Taps, 100V
25 W, 50 W, 100 W, bypass
Transformer Taps, 70V
12 W, 25 W, 50 W, 100 W, bypass
TRANSDUCERS
High-Frequency
8 × 2.0-in (51 mm) drivers in circular array Low-Frequency
Low-Frequency
1 × 8 in (203 mm) woofer
Included in Packaging
(1) DesignMax Luna DML88P
(1) connection panel cover
(1) adjustable suspension cable system
(4) cable ties
(1) installation guide
