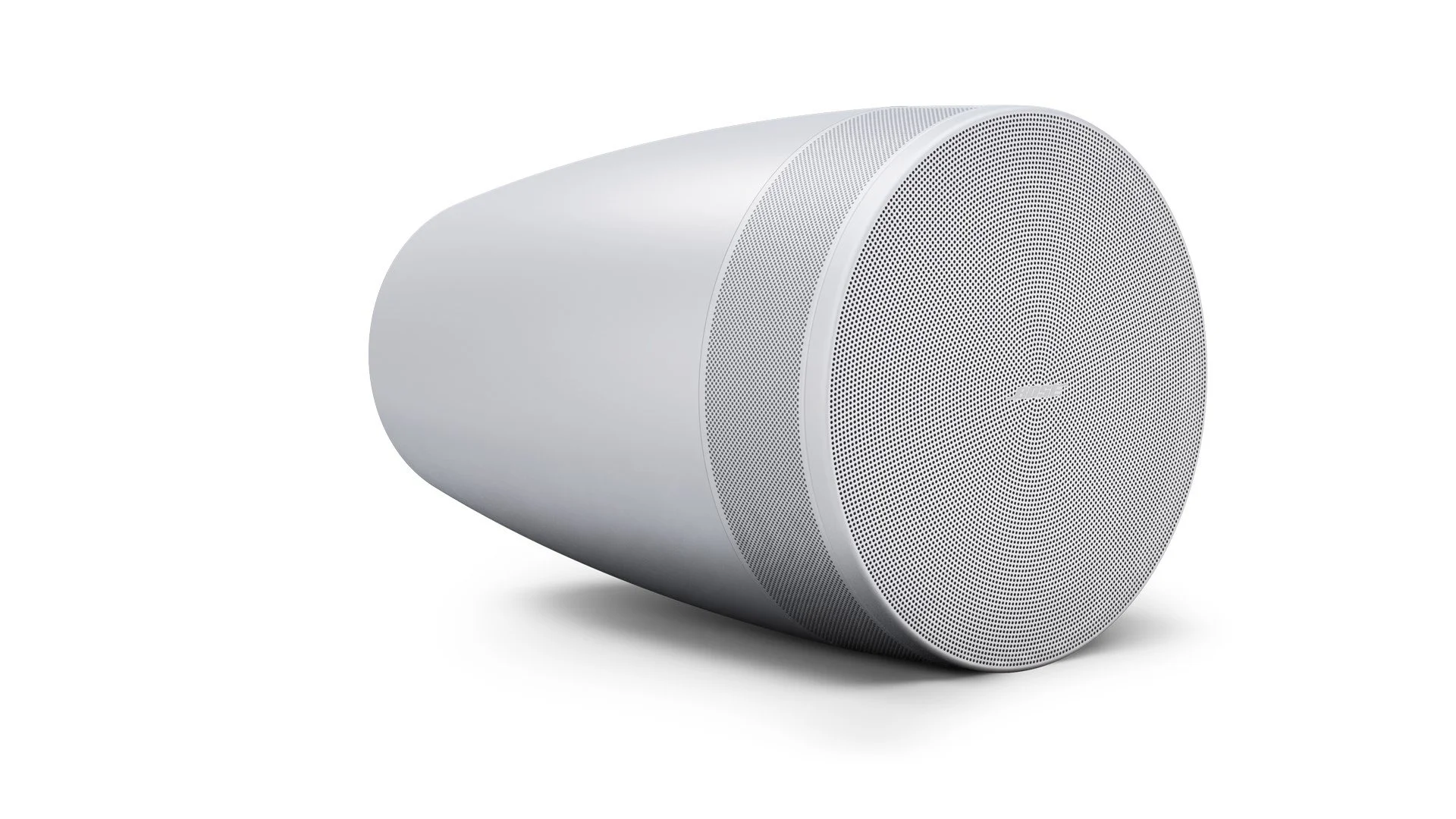

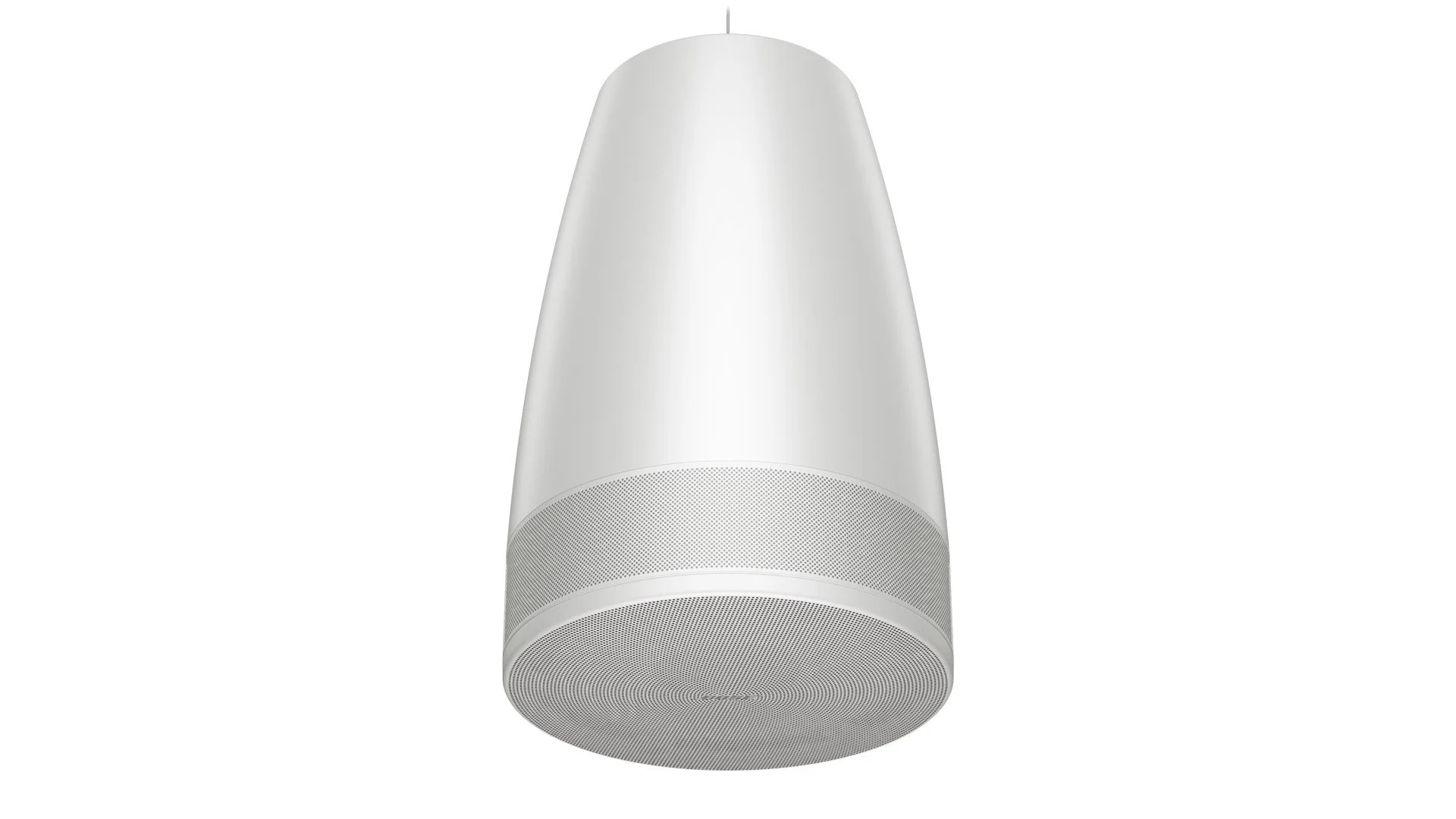

DesignMax Luna makes it easy to get great sound in open-ceiling spaces. The proprietary Ring Array™ configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs — even in challenging ceiling conditions — while concealed wiring keeps everything looking clean.
Luna marks a giant leap forward in pendant loudspeakers, raising the bar for what’s sonically possible in retail stores, restaurants, fitness studios, and other design-conscious spaces. Best in show at Infocomm.
Features
Proprietary Ring Array™ configuration delivers precise, balanced sound with no hot spots or dead zones
Integrated 8” woofer extends down to 40 Hz—no subs needed
Wide-throw 140° coverage reduces speaker count and installation costs

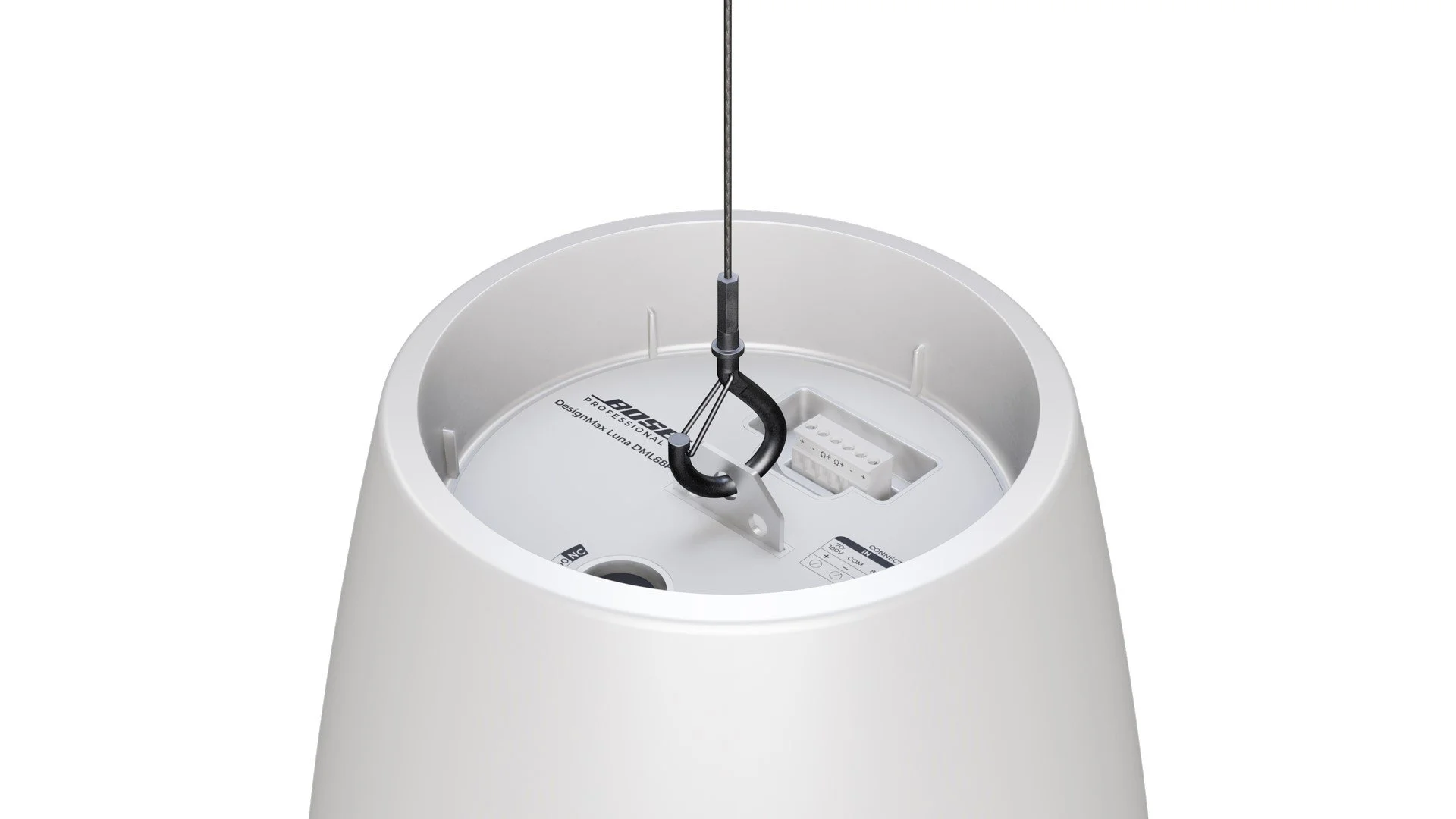

Flexible mounting lets you use a single cable—or two-point suspension—for fast installs and perfectly balanced hangs
Streamlined design with concealed wiring and premium finish options
Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
Compatible accessories include DesignMax Pendant Threaded Rod Adapter and Conduit Adapter
Designed for a wide range of applications, including:
Retail stores
Restaurants and breweries
Fitness clubs and studios
Amusement and recreation spaces
Education and gymnasiums
COMPLIANCE

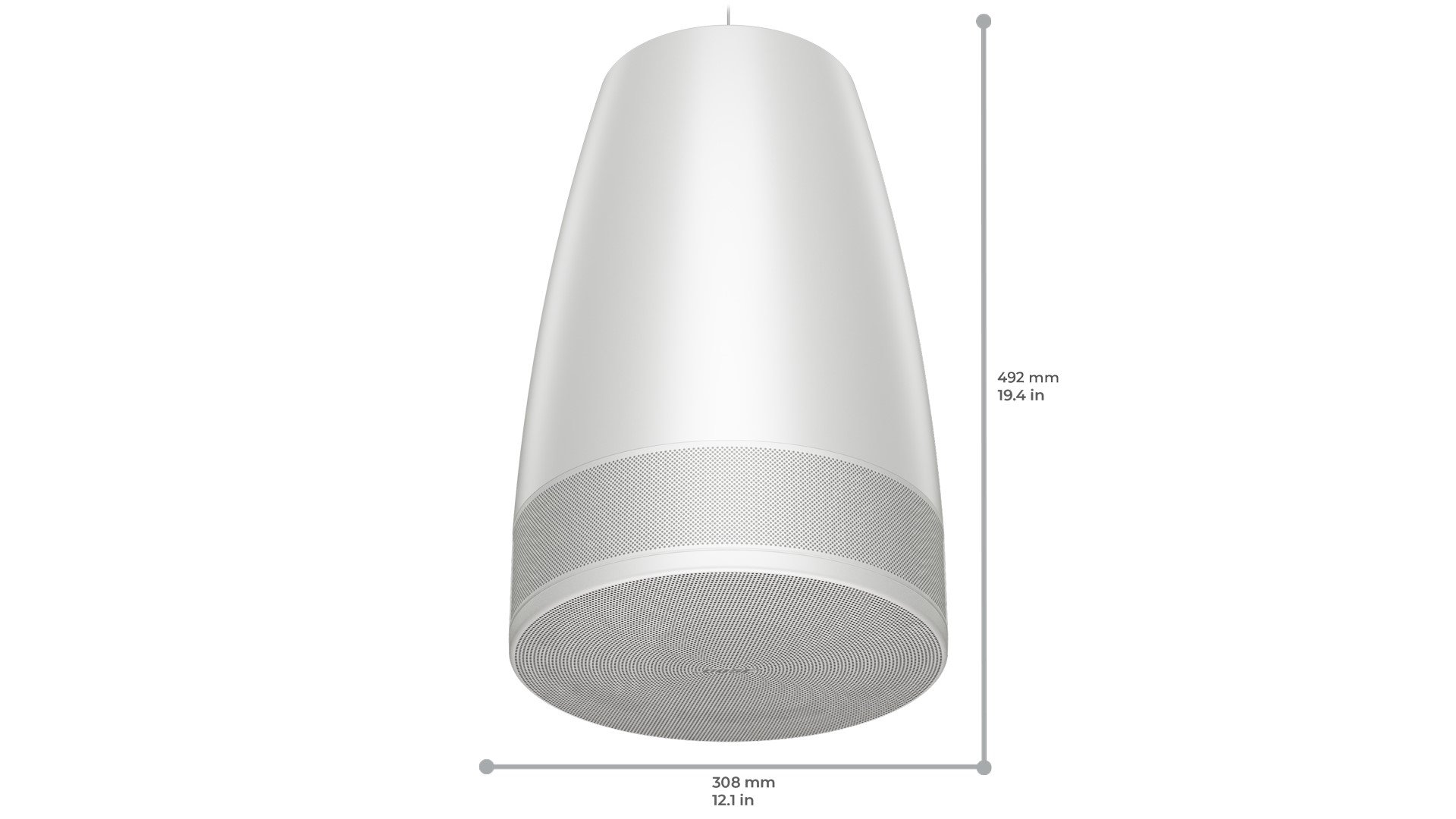

Product Dimensions (H×W×D)
308 mm × 492 mm (12.1 in × 19.4 in), loudspeaker diameter x depth
Net Weight
10.0 kg (22.0 lb)
PERFORMANCE
Frequency Range (-10 dB)
40 Hz – 20,000 Hz
Coverage, Horizontal
140° conical
Calculated Maximum SPL @ 1 m
107 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
140 W
Power Handling, Peak
560 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
85 dB
Transformer Taps, 100V
25 W, 50 W, 100 W, bypass
Transformer Taps, 70V
12 W, 25 W, 50 W, 100 W, bypass
TRANSDUCERS
High-Frequency
8 × 2.0-in (51 mm) drivers in circular array Low-Frequency
Low-Frequency
1 × 8 in (203 mm) woofer
Included in Packaging
(1) DesignMax Luna DML88P
(1) connection panel cover
(1) adjustable suspension cable system
(4) cable ties
(1) installation guide
