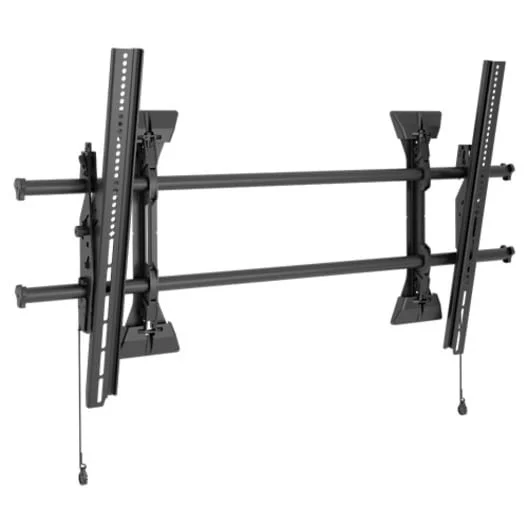

Chief XTM1U Universal Tilting Wall Mount for Large Displays

Chief Extra-Large Fusion® Micro-Adjustable Tilt Wall Mount

Chief’s Fusion tilt wall mounts are designed based on installer feedback and real installation challenges. Key Fusion features include Centerless shift, Centris tilt, ControlZone leveling adjustment, and ClickConnect latching. The design provides increased stability, fast installation, clean cable management, and added security. It offers flexible adjustments for large displays in a low-profile solution.

Specifications

Dimensions & Measurements

• Depth: 6.35 cm (2.5 in)

• Height: 62.23 cm (24.5 in)

• Manual Height Adjustment: 25.4 mm (1 in)

• Max Screen Size: 15.24 cm (6 in)

• Maximum Screen Thickness: 152.4 mm (6 in)

• Minimum Depth: 6.35 cm (2.5 in)

• Shipping Dimensions: 45.28" x 18.5" x 3.03" (1150.2 x 469.9 x 77 mm)

• Shipping Weight: 12.15 kg (26.8 lbs)

• Typical Screen Size: 55" - 100" (1397mm - 2540mm)

• Wall Stud Compatibility: 24" - 42" (610mm - 1067mm)

• Weight Capacity: 250 lbs (113.4 kg)

• Width: 108.58 cm (42.8 in)

Characteristics & Features

• Adjustability: Height Adjustable, Lateral Shift, Micro-Adjustable, Tilt

• Application: Wall

• Color: Black

• Number of Displays: 1

• Orientation: Landscape

• Solution Type: Universal

• TAA Compliant: No

• Tilt: +5° / -12°

• UPC: 841872163888

• VESA Mounting Pattern: 100 x 100 mm – 1070 x 600 mm

Certifications

• OSHPD

• TUV

• UL Listed
