Enhance Your Business Ambience with DM Commercial Audio’s 80-Watt Mixer Amplifier
Perfect for playing background music and paging at your place of business. Commercial-grade unit.
Come with 1 year Manufacturers Warranty*** Extended 5-year warranty sold separately

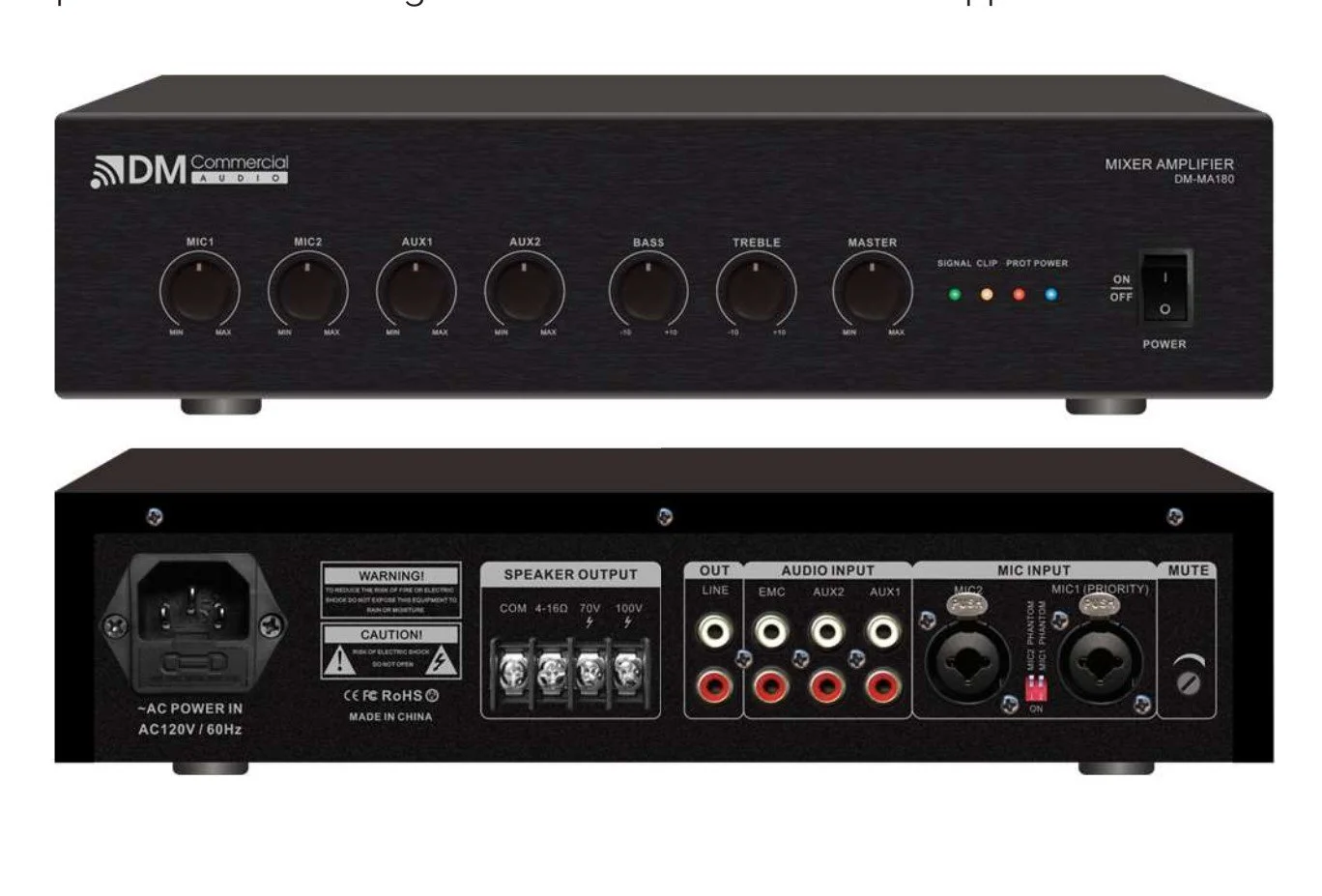

The DM 80Watt Mixer Amplifier ensures that every sound travels smoothly across your entire system. Regardless of the audio source—whether you are utilizing the two MIC inputs, two AUX inputs, or the EMC output—every connection is made with absolute precision. Complete with built-in phantom power and a prioritized muting system, this amplifier guarantees a seamless, professional audio experience where your most important announcements always come through loud and clear.
This unit is great for small shops, corner stores, salons, bars, cafes, and small businesses that are connecting 4 to 10 speakers, for example. Give your shop a big business atmosphere with this commercial-grade mixer amplifier. This can also be used in combination with the SiriusXM Radio Grace business player ( sold separately) to stream commercial-free music throughout your business.
You can also hook up your own music source that you want to.
Specification
Low Impedance: 4-16 Ohms
Line Voltage: 70V (61 Ohms) or 100V (125 Ohms)
Microphone Inputs
MIC1 / MIC2: 600 Ohms (10mV)
Connectors: XLR and 6.35mm (1/4") plug types
Aux InputsRCA: 10k Ohms @ 200-470mV, unbalancedLine OutputSingle RCA Connector: 0.775V (0dB)
Frequency Response60Hz – 5kHz (±3dB)
Total Harmonic Distortion (T.H.D.) Less than 1% at 1kHz, 1/3 rated power
Signal-to-Noise Ratio (S/N)Greater than 75dB
Tone Adjustment
Bass: 100Hz (±10dB)
Treble: 10kHz (±10dB)
Mute Sensitivity MIC1 overrides MIC2 / AUX1 / AUX2 with 0-30dB attenuation.
Controls Volume, Tone, Mute, Power
Indicators, Signal, Clip, Protection, Power
AC Power Supply: AC 120V / 60Hz (AC Fuse: T3.15A).
Dimensions
2.8" H x 11.8" W x 7.5" D (71mm H x 300mm W x 191mm D)
Weight 11.4 lbs. (5.20 kg)
