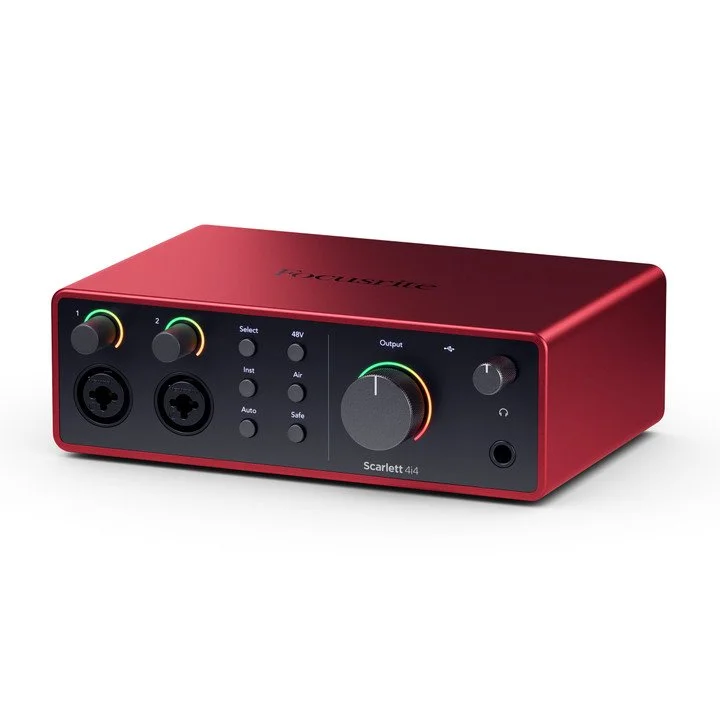

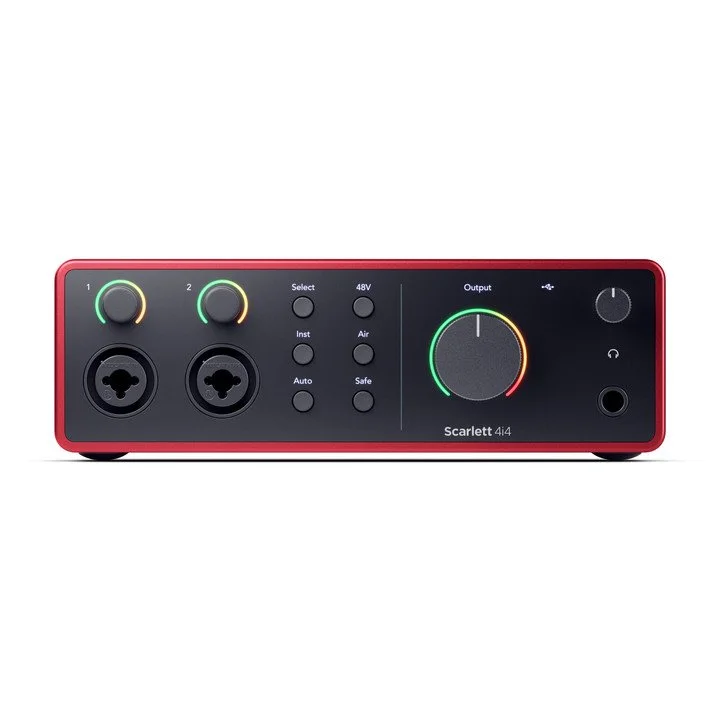

Focusrite Scarlett 4i4 4th Gen USB Audio Interface

Focusrite Scarlett 4i4 4th Gen USB Audio Interface

4i4 is a complete, compact studio hub for all your instruments. Get two of our most detailed, ultra-low-noise mic preamps, along with instrument, line, and MIDI connections for your keys, guitars, synths, grooveboxes, and controllers. Your headphones and line outputs each get their own mix, so you can adapt your studio setup to suit the session.

Key Features

• Two ultra-low-noise mic/line/instrument preamps

• Two additional line inputs

• Two Air preamp modes for classic console sound

• Clip Safe and Auto Gain modes

• MIDI In and Out

• Includes Hitmaker Expansion software bundle

• Plus Pro Tools Intro +, Ableton Live lite, and 6 months of FL Studio Producer Edition

Two of our most detailed, ultra-low-noise preamps.

Plug into 4i4’s 4th-Generation remote-controlled preamps — Scarlett’s clearest and most detailed ever, with a huge 69dB gain range to get the best from every mic.

Auto Gain and Clip Safe.

Let 4i4 handle your levels.

Auto Gain sets your levels and Clip Safe keeps them in the sweet spot, automatically tweaking the gain if you’re in danger of clipping. You'll never lose a take again.

All the I/O you’ll need.

Hook up an electric guitar to one of 4i4’s Hi-Z instrument inputs — it feels just like an amp. Plug synths and grooveboxes straight into the super-high-quality line inputs. Connect your favourite outboard gear to the additional line outputs. You’ve even got MIDI.

Get big console sound with two re-engineered Air modes.

Presence mode boosts your signal’s high-end, bringing the sound to the front of the mix. Create intimate vocal recordings, capture every detail of acoustic guitars, and hear your drum overheads shimmer.

Harmonic Drive mode boosts mid-range harmonics in your sound, making its unique character shine through the mix. Try it on guitars, vocals, or anything else that needs a little more punch.

All the software you need to make a hit record.

Once you've got started with Ableton Live Lite, Pro Tools Intro+, or six months of FL Studio Producer Edition recording software (all included), the Hitmaker Expansion bundle has everything you need to bring big studio sound to your songs, with an unbeatable range of record-making studio tools from the biggest names in the business.

Mix your way with 4i4’s independent outputs.

With 4i4, headphones, monitors, and line outs each get their own mix, so you can create the perfect studio setup for your speakers, the artist's headphones, and your outboard gear.

Huge 120dB dynamic range for incredible recordings.

Scarlett delivers incredible audio quality, with converters direct from our flagship RedNet interfaces — as found in high-end studios around the world.

The best playback you’ve ever heard.

A custom-designed headphone amp design sets the stage for the best playback you've ever heard from a Scarlett interface, driving high-impedance headphones louder and clearer than ever before.

Focusrite Control 2

Focusrite Control 2 is a powerful app that easily manages Scarlett 4th Gen interfaces on Windows and macOS devices. Pair the iOS and Android app to your desktop computer to remotely control your Scarlett from anywhere in your recording space.

Specifications:

Overview

• Number of Microphone Preamps2

• Phantom PowerYes

• Instrument Inputs2

• Line Inputs4

• Air ModeYes

• Auto GainYes

• Clip SafeYes

• Line Outputs4

• Headphone Outputs1

• LoopbackYes

• MIDIYes

• ConnectivityUSB Type-C

• ProtocolUSB 2.0

• Form FactorDesktop

• Simultaneous I/O6 x 6 (including Loopback inputs)

• A/D Resolution24-bit/192 kHz

• Bus PoweredYes (1.5A)

Dimensions

• Height60mm

• Width180mm

• Depth130mm

• Weight0.798kg

Supported sample rates

• 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone inputs

• Frequency Response20-20kHz ± 0.06dB

• Dynamic Range116dB (A-Weighted)

• THD+N-100dB @ 8dB gain

• Noise EIN-127dBu (A-Weighted)

• Maximum Input Level16dBu

• Gain Range69dB

• Impedance3kΩ

Variable Line inputs

• Frequency Response20-20kHz ± 0.05dB

• Dynamic Range115.5dB (A-Weighted)

• THD+N-100dB @ 8dB gain

• Maximum Input Level22dBu

• Gain Range69dB

• Impedance60kΩ

Fixed Line inputs

• Frequency Response20-20kHz ± 0.02dB

• Dynamic Range115.5dB (A-Weighted)

• THD+N-105dB

• Maximum Input Level22dBu

• Impedance60kΩ

Instrument inputs

• Frequency Response20-20kHz ± 0.15dB

• Dynamic Range113dB (A-Weighted)

• THD+N-80dB @ minimum gain

• Maximum Input Level12dBu

• Gain Range62dB

• Impedance1MΩ

Line outputs (Balanced)

• Frequency Response20-20kHz ± 0.02dB

• Dynamic Range120dB

• THD+N-112dB

• Maximum Output Level16dBu

• Impedance100Ω

Headphone outputs

• Frequency Response20-20kHz ± 0.1dB @ 33Ω / 300Ω

• Dynamic Range112dB @ 33Ω
  115dB @ 300Ω

• THD+N-99dB @ 33Ω
  -108dB @ 300Ω

• Maximum Output Level5dBu into 33Ω
  11dBu into 300Ω

• Maximum Output Power57mW into 33Ω
  27mW into 300Ω

• Impedance11Ω

Analogue to Digital Converter

• THD+N-115dB

• Dynamic Range130dB (A-Weighted)

Digital to Analogue Converter

• THD+N-115dB

• Dynamic Range130dB (A-Weighted)

Power

• USB1.5A

• External (Optional)7.5W

What's in the box

• Scarlett 4i4 audio interface

• 1m USB-C to USB-C cable

• USB-C to USB-A adaptor

• External power supply
