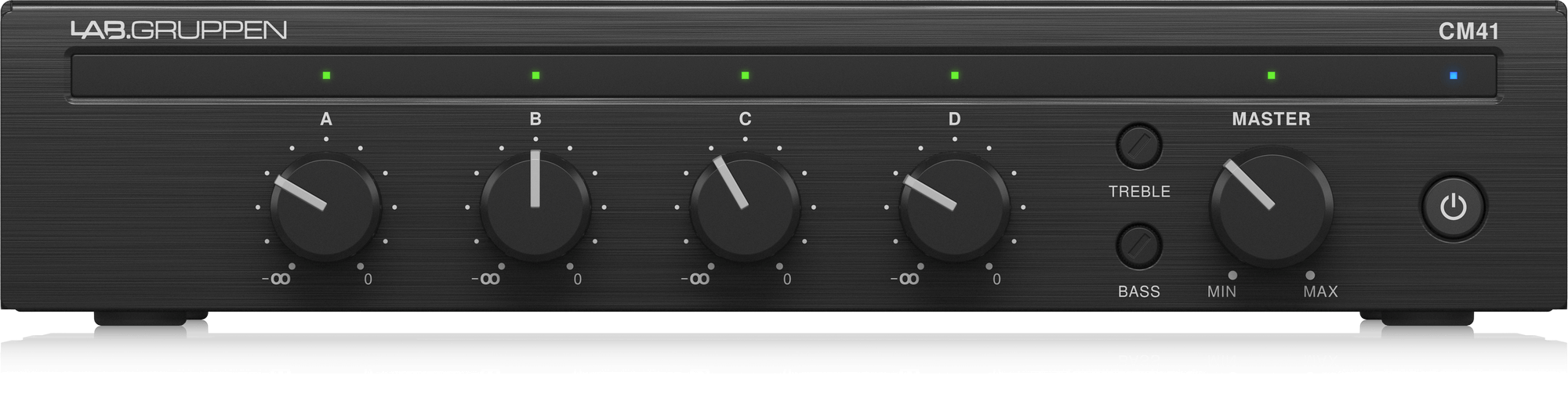

CM41 – Commercial Mixer with 4 Inputs and 1 Output

Overview
The CM41 Commercial Mixer provides a simple, reliable, and professional solution for distributed audio in commercial and industrial environments. Ideal for bars, restaurants, retail locations, hotels, corporate spaces, and educational facilities, the CM41 is easy to install and operate—even by non-technical personnel.

Key Features

• 4 mic/line inputs with individual volume controls

• 1 output with front panel master volume and bass/treble controls

• Configurable priority muting for background music override

• GPI remote volume control via RJ-45 Ethernet connector

• Front panel power control button

• Aux output for expansion to amplifiers

• Rack-mountable 1U half-rack width enclosure with joining brackets

• Euroblock type mic/line input and output connectors

Easy to Install & Flexible
The CM41 comes with rubber feet for desk, shelf, or table placement. Optional rack mounting hardware allows installation in half or full 19" racks, as well as wall or under-table mounting. This flexibility makes it ideal for both single-unit installations and scalable multi-unit setups.

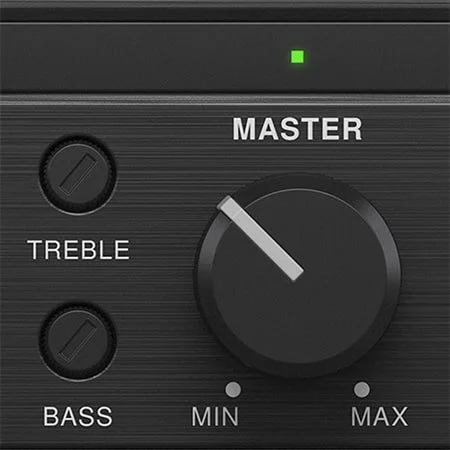

Sublimely Simple Controls
The CM41 front panel offers intuitive controls for quick adjustments. The master volume and power button are easily accessible, while bass and treble can be adjusted with a tool for fine-tuning.

Easy to Connect

• Balanced sources connect via 3-pin Euroblock input

• Unbalanced stereo sources connect via RCA (summed to mono)

• Standard 2-pin Euroblock output for loudspeakers

• Aux output for expansion to commercial amplifiers

Expandable Remote Control
The rear RJ-45 connector allows integration with wall controllers (CRC-V series) or tabletop controllers (LAB.LEVEL) via Ethernet cabling for flexible remote control.

System Scalability
CM41 is part of a scalable product family, supporting single- or dual-zone configurations. Its individual zone volume and remote capabilities make it ideal for growing commercial installations.

Energy-Efficient Design
With Auto Ramp and direct-drive constant power technology, the CM41 is Energy Star certified, delivering high-quality sound while minimizing energy usage.

Specifications

Mixer:

• Mixing Capability: 4 inputs – 1 output

Audio Inputs:

• 1 x 5-pin Euroblock mic/line input (Channel A)

• 3 x 3-pin Euroblock mic/line inputs + 3 x stereo RCA (Channels B, C, D)

• Impedance: 20 kΩ balanced mic/line, 10 kΩ unbalanced line/RCA

• Max Input Level: 4.88 V (+16 dBu)

• Microphone Phantom Power: 48 V

Audio Outputs:

• 3-pin Euroblock connector

• Gain Range: -∞ to +10 dB

• Max Output Level: 9.6 V (+22 dBu)

Controls:

• Front: Power standby, input/output gain, bass & treble

• Rear: Mic/line switch, vox/ducking threshold, phantom power, input routing (2-channel models only)

Tone Controls:

• Bass: ±10 dB @ 100 Hz

• Treble: ±10 dB @ 10 kHz

Indicators:

• Power: On (blue), Force Standby (red), Standby (yellow)

• Inputs: Signal (green LED > -36 dBu), Clip (red LED +16 dBu)

• Master: Signal (green LED > -50 dBu), Limit (red LED +12 dBu)

System & Connectivity:

• Remote: 1 x RJ-45 Ethernet

• Distortion: <0.05%

• Frequency Response: 20 Hz – 20 kHz (+0.5 / -1 dB)

• Crosstalk (2-channel models): >70 dB

• S/N Ratio: >97 dBA

Power Supply:

• Voltage: 100–240 V~, 50/60 Hz

• Fuse: T 3.15 A L 250 V

• Power Consumption: 10 W

• Mains Connector: Standard IEC

Dimensions / Weight:

• H x W x D: 44 x 218 x 299 mm (1.8 x 8.6 x 11.8")

• Weight: 2.1 kg (4.6 lbs)

• Finish: Brushed black anodized aluminum with black painted steel bottom

Approvals:
CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B
