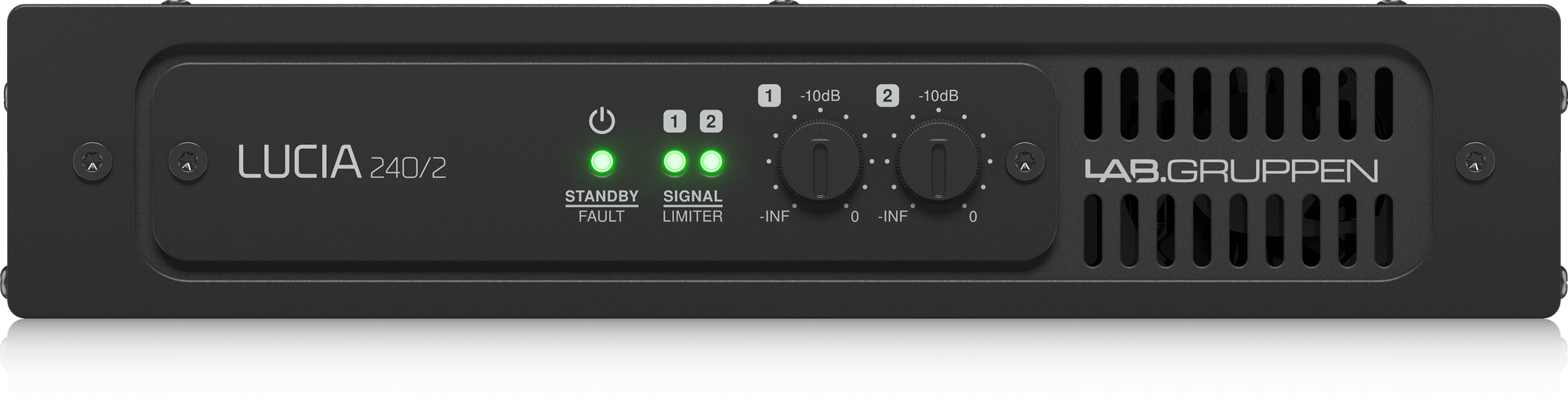

The Lab Gruppen LUCIA 240/2 is a compact 2-channel amplifier delivering 2 × 120 W of decentralized power for installation applications. Engineered for ease of installation, energy efficiency, and superior sound quality, LUCIA brings power, processing, and control exactly where it’s needed in AV systems. Its ultra-compact form factor allows discreet placement behind displays, on walls, or integrated into furniture, while all connections are conveniently accessible on Euroblock screw terminals with parallel RCA inputs.
The LUCIA 240/2 integrates a digital front end with a 2 × 2 Mix Matrix and comprehensive DSP, including Automatic Dynamic Loudness Contouring (ADLC™) and flexible EQ filters. This reduces or eliminates the need for external mixers and processors, saving time and cost. Configuration is simplified via a software wizard or offline presets downloadable via USB.
ENERGY STAR qualified, the LUCIA 240/2 automatically enters standby mode after 20 minutes with no signal, consuming less than 1 W, and powers up automatically when a signal is detected. Remote monitoring and control are possible via GPIO or RS232 with an open protocol supported by multiple third-party systems.
Featuring Auto Load Sense and advanced low-impedance amplification, the LUCIA 240/2 adapts to any speaker load for maximum performance, delivering high-quality audio in a cost-efficient, flexible package.
Key Features
2-channel installation amplifier, 2 × 120 W output
Compact, wall-mountable design (supplied bracket included)
Digital front end with 2 × 2 Mix Matrix and DSP
ADLC™ ensures consistent, full-range sound at all levels
Auto Load Sense optimizes power for 2–8 Ω loads
ENERGY STAR qualified; <1 W standby consumption
Front-panel level control with detented potentiometers
USB firmware updates and configuration
GPI/GPO and RS232 remote control and monitoring
Temperature-controlled fan cooling (front-to-rear airflow)
Specifications
General
Output Power (All Channels Driven)
2 / 4 / 8 ohms: 120 W
16 ohms: 60 W
Performance
THD (20 Hz – 20 kHz @ 1 W, 8 Ω): <0.3%
THD (1 kHz, 1 dB below clipping): <0.2%
SNR: >101 dBA
Crosstalk (1 kHz): >60 dBA
Frequency response: 5 Hz – 22 kHz
Input impedance: 10 kΩ
Connectors & Control
Inputs: 3-pin detachable screw terminals (balanced), RCA (unbalanced)
Outputs: 2-pin detachable screw terminals
Level control: Front-panel potentiometers, –∞ to 0 dB
GPI/GPO: Contact closure for power/fault monitoring
RS232: Remote control and monitoring
USB: Firmware updates and preset configuration
Processing Features
4 EQ sections per input, 4 EQ sections per output
2 × 2 mix-matrix routing
User-adjustable output limiter and ADLC™
Latency: 9.15–137 ms adjustable
Power & Cooling
Nominal voltage: 100–240 VAC
Operating voltage: 85–265 VAC
Standby consumption: <1 W
Mains connector: IEC inlet
Cooling: Single temperature-controlled fan, front-to-rear airflow
Dimensions & Weight
Finish
