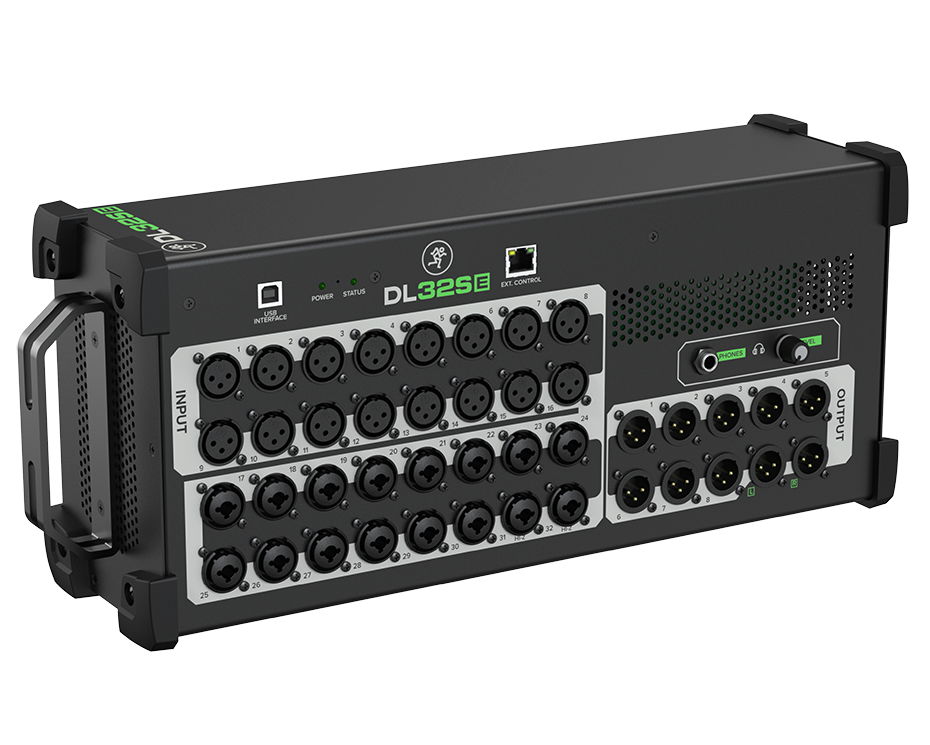

Mackie DL32SE 32 Channel Digital Rack Mixer

32-Channel Digital Rack Mixer

The Mackie DL32SE digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in a stage-friendly, rack-mountable design. Just connect to your wireless router and take total control with the intuitive Master Fader SE app.

EXPERIENCE YOUR BEST MIX EVER

Master Fader SE is the main user interface for your DL32SE digital mixer. Rather than knobs, faders and buttons on a large piece of hardware, you get powerful mixing tools on your tablet, Mac or PC — up to 20 different devices simultaneously. The proven design of the Master Fader SE app makes managing your mix, large or small, easy and efficient. Organize your channels with view and mute groups, utilize subgroups with full bus processing, control levels of channel groups simply with VCAs, and even lock out devices from specific capabilities within the app. And when you get a mix you like, you can save it all into a snapshot.

Product features

32 total inputs with Onyx+ preamps

Stagebox design with included rack ears

Connect to wireless router via Ethernet

Control with Master Fader SE app

Powerful processing with EQ, filters, compression, FX and more

32x32 USB audio interface

Waveform™ OEM software included

Full features

MAIN FEATURES

Convenient stagebox/rack design with built-in handle

32 input channels with Onyx+ preamps (16 XLR, 16 XLR/TRS combo with 2 Hi-Z)

10 fully assignable XLR outputs plus headphone output

Connect to your wireless router and control with Master Fader SE app

Per-channel EQ, filters, gate, compression and RTA/Spectrograph

4 stereo FX busses with studio-quality reverbs, delays, chorus and more

Multitrack 32x32 USB audio interface for recording and playback

Waveform OEM professional software and plugins included

WIRELESS MIXING

Take complete control via iOS, Android, macOS or Windows devices

No set FOH position — mix from anywhere

Control from up to 20 separate devices at once

Access Limiting allows performers to control their own monitor mixes without giving access to critical mixer functionality

Universal Ethernet connection supports your wireless router of choice

POWERFUL PROCESSING & ROUTING

32 input channels with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph

32 stereo-linkable input channels plus stereo return channel

10 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph

8 stereo-linkable aux sends

6 stereo-linkable subgroups

Main L/R bus

6 VCAs and 6 mute groups

4 stereo FX processors featuring studio-quality reverbs, delays, choruses, flangers and many more with dedicated sends and returns

Full I/O routing with A/B sources per channel

Assignable oscillator including pink/white noise and sine waves

Modern and Vintage options for comp/gate and EQ

MULTITRACK RECORDING & PLAYBACK

32x32 USB 2.0 audio interface for Mac or PC

Record the show for later mixdown

Perform a virtual sound check

Play intermission music, backing tracks and more directly into a dedicated stereo return channel

Flexible, low-cost studio recording solution

Utilize Mac or PC audio plug-ins in a live environment

MASTER FADER SE CONTROL APP

Intuitive and easy to master

Fast navigation with view groups and overview

Quick setup with tons of factory and user-definable presets

Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users

Quickly access channel processing, signal routing and a massive suite of great sounding effects with presets to get you started

Export presets, shows and complete system backups via Dropbox, email and more

Set up the show before you arrive at the venue with offline show creation

Available on iOS, Android, macOS and Windows

RECORD & PRODUCE LIKE A PRO

Waveform™ OEM professional software and plugin packages included

The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equalizer, Compressor, Reverber8 and Limiter
