12" 2000W High-Performance Powered Loudspeaker
New industry standard for portable loudspeakers
Mackie SRM212 V-Class sets a new industry standard for portable loudspeakers, bringing the best-in-class performance, clarity and technology you need when compromise isn’t an option.
STAGE MEETS STUDIO
Every song deserves to be heard the way it was intended. Upgrade to Mackie SRM V-Class, the high-performance loudspeaker that is as clear and articulate as a professional studio monitor.
Tech Specs
2000W Class-D Amplifier
Our most advanced amplifier platform ever, delivering incredible stability, headroom and audio fidelity
Highest SPL in its class
Unrivaled reliability and rock-solid operation can withstand the most demanding applications
Universal power supply (100-240 VAC) with Power Factor Correction for stable operation even with unstable AC power
Custom Transducers
Large, powerful magnets partner with robust motors, specially designed voice coils and spiders to provide the highest possible efficiency and transient accuracy
12” low-frequency driver designed for powerful yet balanced low end
Additional cooling vents surrounding the voice coil plus directional cabinet porting ensures maximum heat dispersion and reliability
Premium polymer high-frequency driver provides the flattest possible response for incredibly smooth highs that sound natural and balanced
Custom Sym-X™ Horn
Allows for total efficiency from the HF transducer, minimizing distortion and increasing output
Creates a perfectly symmetrical, flat response at the crossover point for exceptionally smooth midrange
The horn-loading frequency is set below the LF capability of the driver for maximum efficiency and optimal performance at the crossover point
Advanced Impulse™ DSP
Crystal-clear sound across the entire dispersion zone means the whole room is the sweet spot
Precision crossover and transducer time-alignment ensures balanced and accurate sound
Transparent System Protection
Dedicated processing module monitors and protects the amplifier in real time
Sound quality and tonal balance is maintained even under heavy limiting—no “pumping” when you crank the speaker
Utilizing powerful multi-band compression, the amplifier can target specific frequency ranges to prevent the system from being overloaded rather than turn everything down at the expense of overall output
Input limiting keeps your source signal in check so if you’re sending audio that’s a bit too hot, the speaker will cool it down
Intelligent Bass Management™
Proprietary LF management technology maintains tonal balance and output level when operating at very high volumes
Keeps the bass tight, punchy and articulate—essential for DJs and electronic musicians
SRM Mix Control™
Dual independent channels that support mic, line and instrument signals with XLR/TRS combo inputs
Dedicated 1/8” stereo aux channel
Direct outputs on channels 1 and 2 plus mix output
High-contrast full color display for easy single-knob access to mixer and processing
Adjust channel levels and EQ
Application and venue-specific voicing modes
Variable crossover point
Alignment delay—up to 100 ms
Save and recall up to 10 user presets
Screensaver plus dimmer and contrast control
System lock with 4-digit passcode
Change front LED function: Green, white, off, signal present, multi (cycle through colors)
SRM Connect™ App
The SRM Connect™ app gives you access to all adjustments and settings including EQ, levels and presets
Control two speakers at once, wirelessly
DJs can dial in the right mix from the dance floor with their phone
Bluetooth® Streaming and Linking
Wirelessly link two SRM V-Class speakers for music streaming applications plus complete control over both speakers
Bluetooth® technology allows up to 100 meters of range between linked speakers
Stereo or dual zone linking modes allows discrete control over the inputs and outputs of the entire system across two rooms or zones
Creates an incredibly clean setup in minutes
Versatile Configuration Options
Dual-angled cabinet design allows for use as a PA speaker or high-performance floor monitor
Pole mount provides optimal coverage and minimal reflections in most venues, with optional 7-degree downward tilt for elevated stages

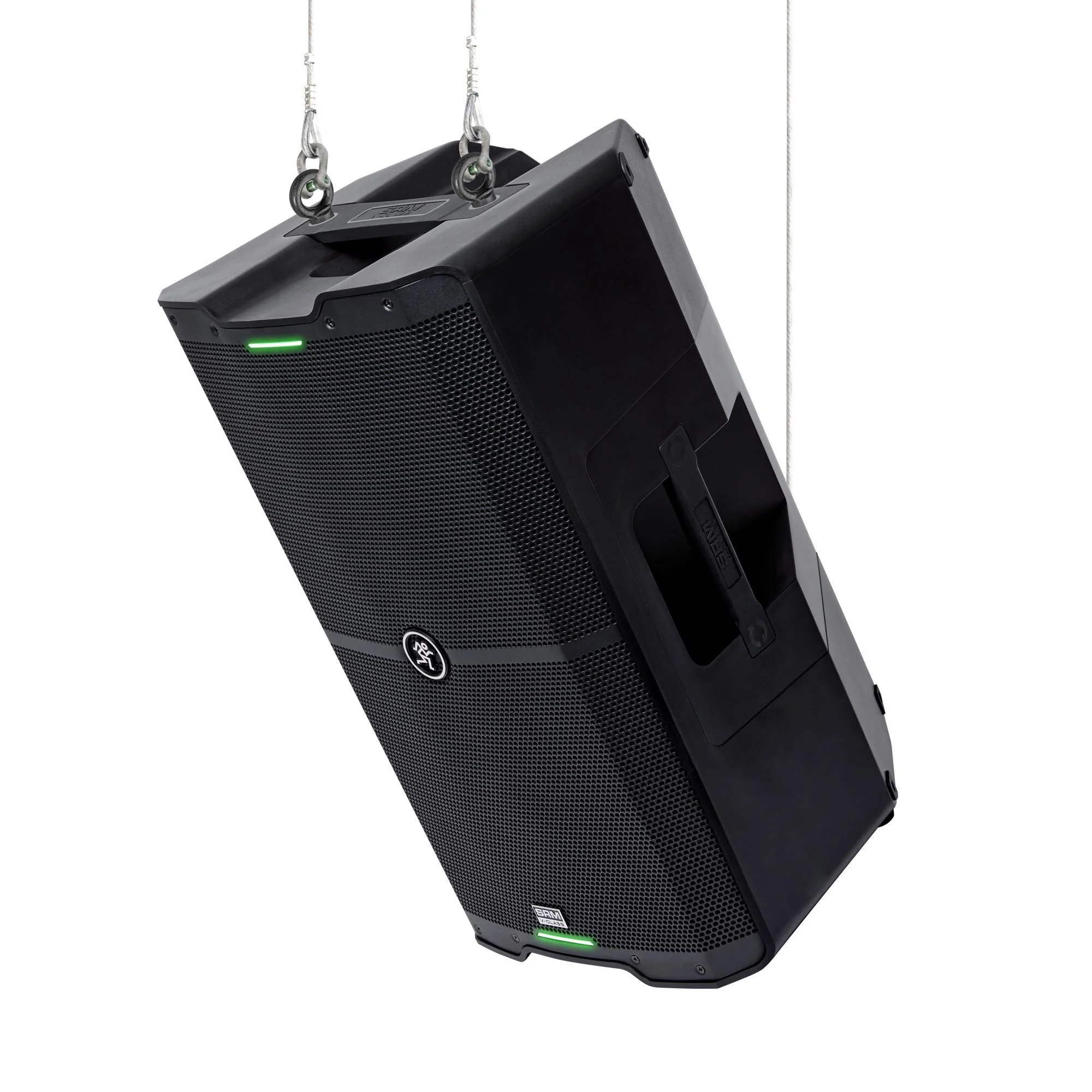

M10 fly points are ideal for permanent overhead installations
T100 tripod stand for elevating speaker (sold separately)
SPM400 speaker pole for mounting over subwoofer (sold separately)
PA-A3 eyebolt kit for suspending speaker (sold separately)
Physical Specifications
Maximum SPL Peak: 135 dB
Frequency Response: 42 Hz - 20 kHz
Horizontal Coverage Angle: 90°
Vertical Coverage Angle: 60°
Height: 25.9 in / 658 mm
Width: 15.2 in / 386 mm
Depth: 14.2 in / 361 mm
Weight: 40.6 lb / 18.4 kg
