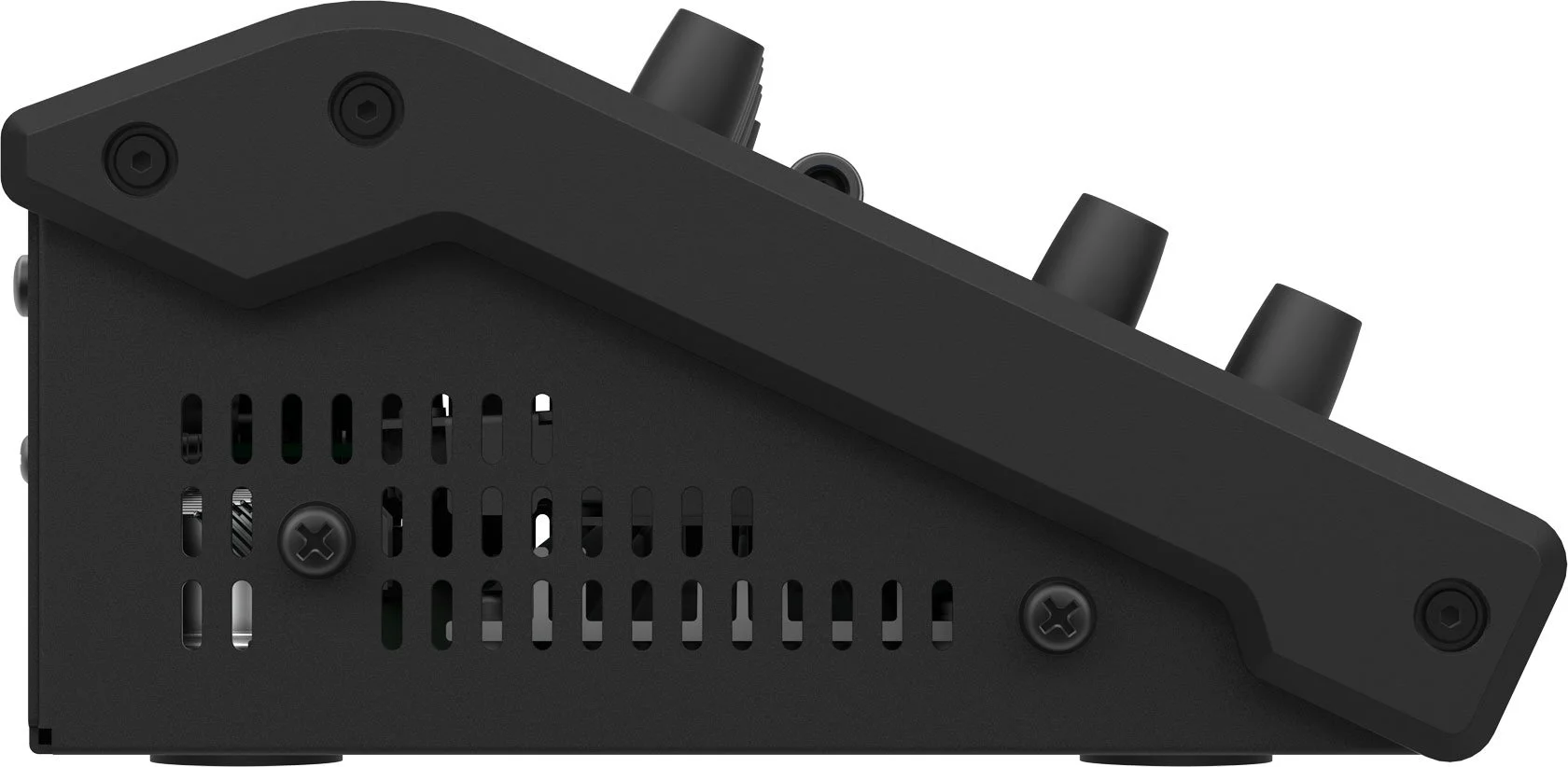

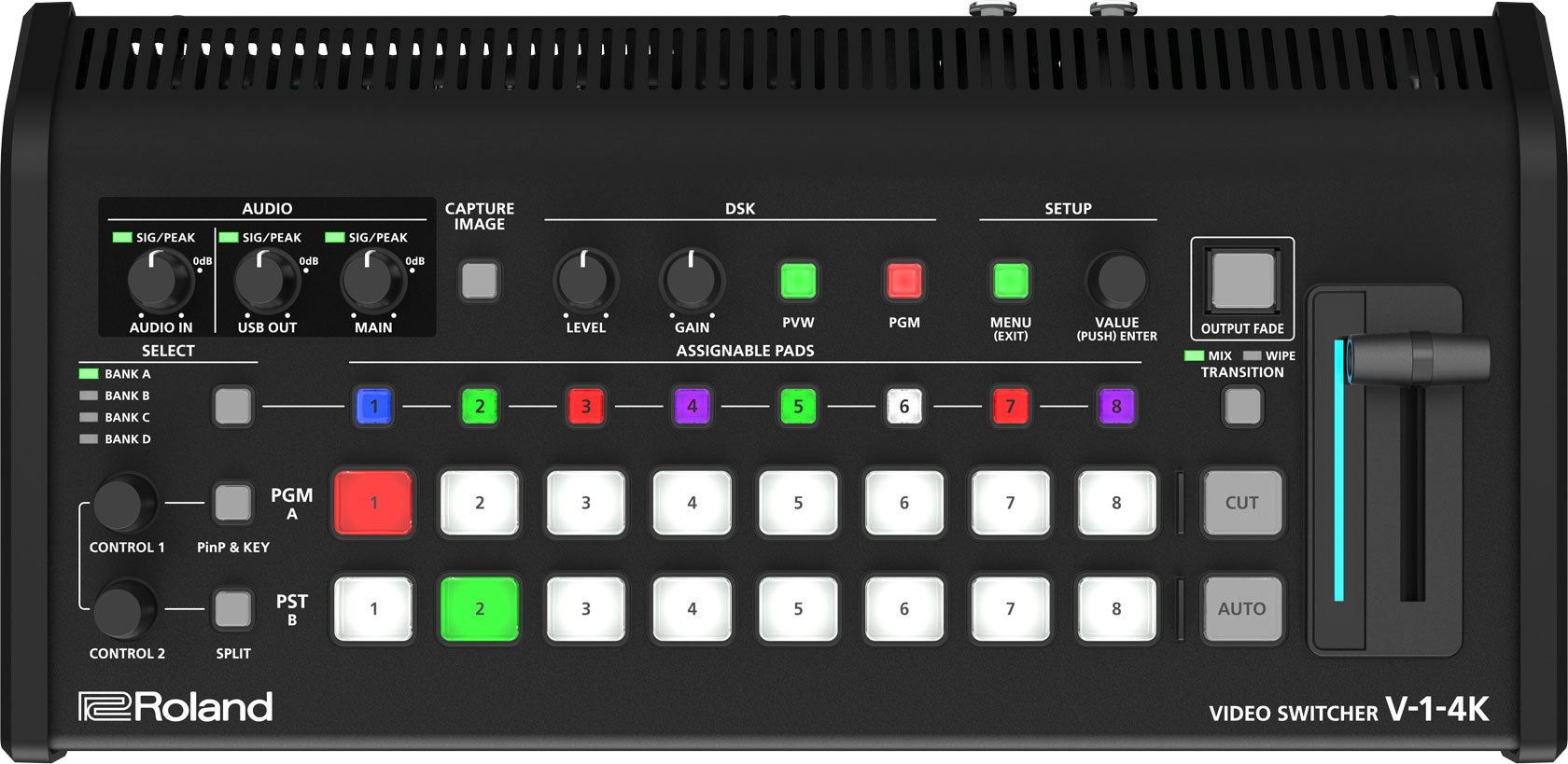

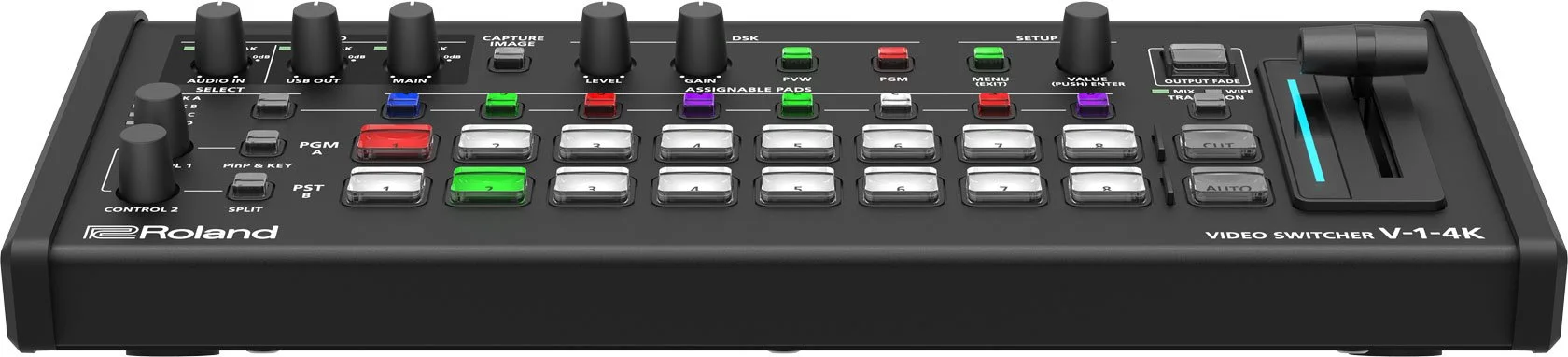

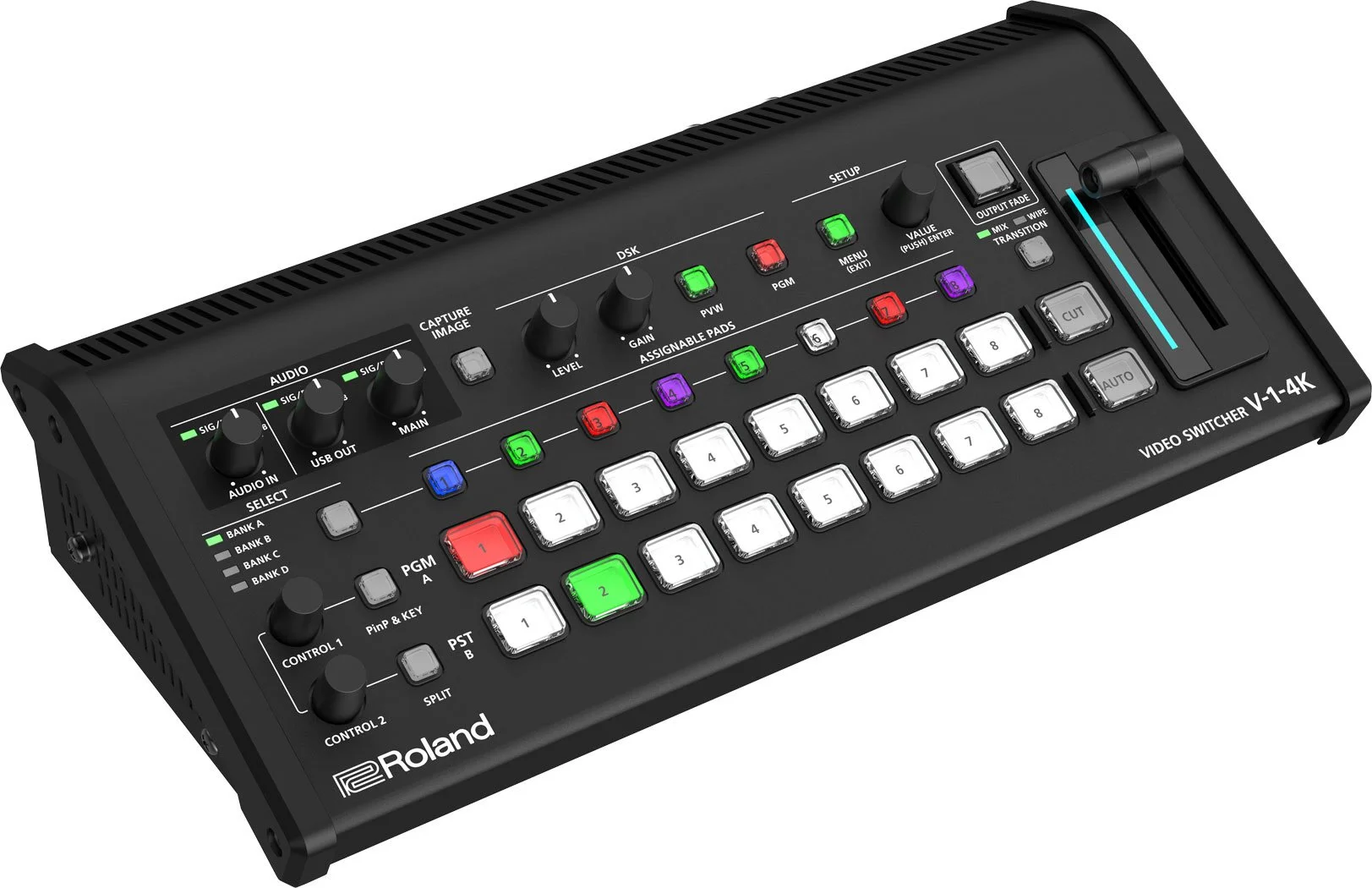

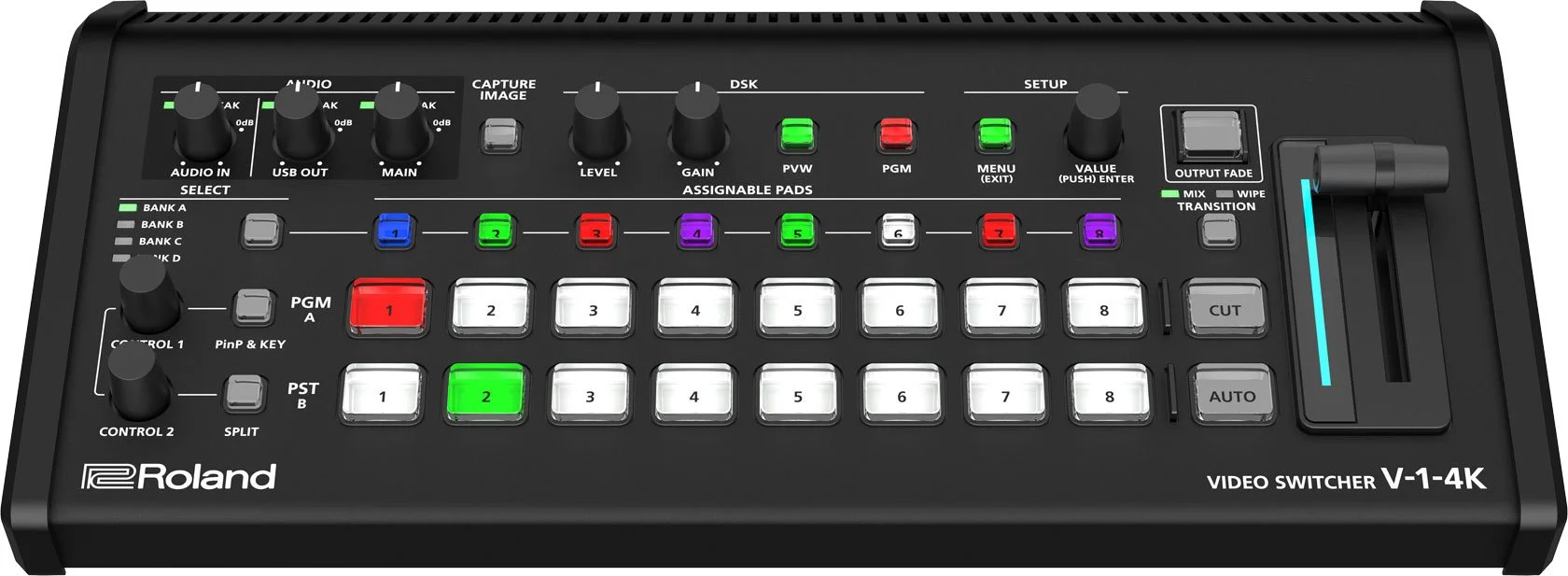

Roland V-1-4K 4K Video Switcher

The V-1-4K Video Switcher delivers a complete 4K 60p switching solution in a streamlined and easy-to-operate package. HDMI, USB 3.0, and LAN connections provide flexible I/O, while multi-channel mixing and effects bring high-end audio polish to every production. You also get integrated control for PTZ cameras, plus remote operation via dedicated control apps. And with our powerful Graphics Presenter software, it’s simple to enhance productions with impressive titles, motion graphics, and more.


Roland’s popular V-1 series has led the industry since 2004, redefining entry-level video switching with innovative, professional-grade products that are easy for anyone to operate with minimal training. The V-1-4K sets a new benchmark, offering comprehensive support for today’s 4K 60p workflows in a compact, accessible, and user-friendly hub for live events, houses of worship, conference rooms, livestreaming, and more.


Specifications:

VideoVideo Processing4:2:2 (Y/Pb/Pr), 8-bitNumber of Video Channels5 channelsVideo Input FormatsHDMI IN 1--5:

720/60p, 59.94p, 50p

1080/59.94i 1, 50i 1

1080/60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p

2160/60p 2, 59.94p 2, 50p *2, 30p, 29.97p, 25p, 24p, 23.98p

UXGA(1600x1200/60Hz), WUXGA(1920x1200/60Hz), WQHD(2560x1440/60Hz) *3

* Conforms to CEA-861-G, VESA CVT.

* HDMI IN 5 support Roland FILL+KEY signal

* Color Gamut and Dynamic Range are the same as the system format.

*1 The input interlaced video signal is converted to progressive video signal by internal processing.

*2 HDMI IN 1--3 supports YUV420.

*3 Reduced BlankingVideo Output FormatsHDMI OUT 1--2:

1080/60p 1, 3

1080/59.94p 1, 4

1080/50p 1, 5

1080/30p 1, 6

1080/29.97p 1, 7

1080/25p 1, 8

1080/24p 1, 9

1080/23.98p 1, 10

2160/60p 2, 3

2160/59.94p 2, 4

2160/50p 2, 5

2160/30p 2, 6

2160/29.97p 2, 7

2160/25p 2, 8

2160/24p 2, 9

2160/23.98p 2, 10

*1 System Format = 1080p

*2 System Format = 2160p

*3 Frame Rate = 60 Hz

*4 Frame Rate = 59.94 Hz

*5 Frame Rate = 50 Hz

*6 Frame Rate = 30 Hz

*7 Frame Rate = 29.97 Hz

*8 Frame Rate = 25 Hz

*9 Frame Rate = 24 Hz

*10 Frame Rate = 23.98 Hz

HDMI OUT 3--4:

1080/60p 1, 3, *4

1080/59.94p 1, 3, *5

1080/50p 1, 3, *6

1080/30p 1, 3, *7

1080/29.97p 1, 3, *8

1080/25p 1, 3, *9

1080/24p 1, 3, *10

1080/23.98p 1, 3, *11

2160/60p 2, 4

2160/59.94p 2, 5

2160/50p 2, 6

2160/30p 2, 7

2160/29.97p 2, 8

2160/25p 2, 9

2160/24p 2, 10

2160/23.98p 2, 11

*1 System Format = 1080p

*2 System Format = 2160p

*3 System Format = 2160p and Down-convert = ON

*4 Frame Rate = 60 Hz

*5 Frame Rate = 59.94 Hz

*6 Frame Rate = 50 Hz

*7 Frame Rate = 30 Hz

*8 Frame Rate = 29.97 Hz

*9 Frame Rate = 25 Hz

*10 Frame Rate = 24 Hz

*11 Frame Rate = 23.98 Hz

* Color Gamut: Rec.709, Rec.2020

* Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG

* HDMI OUT 3--4 can be Down-convert out (1080p) when system format is 2160p.

* Conforms to CEA-861-G.

HDMI OUT 5 (MULTI-VIEW):

1080/60p

* Color Gamut: Rec.709

* Dynamic Range: SDR

* Conforms to CEA-861-G.

USB STREAM:

1080/60p, 59.94p, 50p, 30p, 29.97p, 25p

2160/60p, 59.94p, 50p, 30p, 29.97p, 25p

*Supports Uncompressed Video (YUY2) and Compressed Video (Motion JPEG).Still ImageBitmap File (.bmp) Up to 3840 x 2160 pixels, 24-bit color, uncompressed.

* It can be stored up to 2 files in the internal memory.Video EffectsTransition: Cut, Mix (Dissolve), WIPE (8 types), SPLIT (2 types)

Composition: PinP x 1 (Square), Keyer x 1 (Luminance Key, Chroma Key), DSK (Luminance Key), Roland FILL+KEY Mode

Other: Multi-View (1 types), Still Image capture, Still Image playback, Output fade (Audio, Video: Black), Test pattern outputAudioAudio ProcessingSample rate: 24 bits, 48 kHzNumber of Audio Channels14 channelsAudio FormatsUSB STREAM (input/output): Linear PCM, 16 bits, 48 kHz, 2 ch

HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch

HDMI OUT: Linear PCM, 24 bits, 48 kHz, 2 chAudio EffectsChannel Effects: High pass filter, Noise gate, Compressor, 4-Band equalizer, Delay, Auto mixing

Master Effects: 4-Band equalizer, Compressor/Limiter, 15-Band GEQ, Delay

Other: Output fade, Test tone outputCommon SectionOther FunctionsMemory (8 types)

Panel lock function

EDID Emulator

Auto Switching

Smart Tally

Remote Camera Control (Up to 5 units)ConnectorsVideo Input ConnectorsHDMI IN 1--5: HDMI type A x 5 (HDMI2.0)

* HDCP 1.4 2.2 Supported

* Multi-format SupportedVideo Output ConnectorsHDMI OUT 1--4: HDMI type A x 4 (HDMI2.0)

* HDCP 1.4 2.2 Supported

HDMI OUT 5: HDMI type A x 1 (HDMI1.4)

* HDCP 1.4 Supported

USB STREAM: USB Type-C (R) (USB2.0 / USB3.2 Gen1)Audio Input ConnectorsAnalog:

AUDIO IN 1--2: XLR type

Digital:

USB STREAM: USB Type-C (R)

HDMI IN 1--5: HDMI type A x 5Audio Output ConnectorsAnalog:

AUDIO OUT 1--2: RCA phono type

PHONES: Stereo miniature phone type

Digital:

USB STREAM: USB Type-C (R)

HDMI OUT 1--5: HDMI type A x 5Other ConnectorsUSB HOST: USB A type (for USB flash drive)

USB STREAM: USB Type-C (R) (for remote control from PC and iPad)

LAN CONTROL: RJ45, 100BASE-T (for Remote Control)Audio Input/Output CharacteristicsInput LevelAUDIO IN 1, 2: +4 dBu (Maximum: +24 dBu)Input ImpedanceAUDIO IN 1, 2: 16 k ohmsOutput LevelAUDIO OUT 1, 2: -10 dBu (Maximum: +10 dBu)

PHONES: 92 mW + 92 mW (32 ohms)Output ImpedanceAUDIO OUT 1, 2: 1 k ohms

PHONES: 10 ohmsOthersPower SupplyAC adaptorCurrent Draw4 APower Consumption52 WOperation Temperature+0 to +40 degrees Celsius

+32 to +104 degrees FahrenheitDimensions330 (W) x 164 (D) x 79 (H) mm

13 (W) x 6-1/2 (D) x 3-1/8 (H) inchesWeight (excluding AC adaptor)1.9 kg

4 lbs 4 ozAccessoriesStartup Guide

Leaflet "USING THE UNIT SAFELY"

AC adaptor

Power cord
