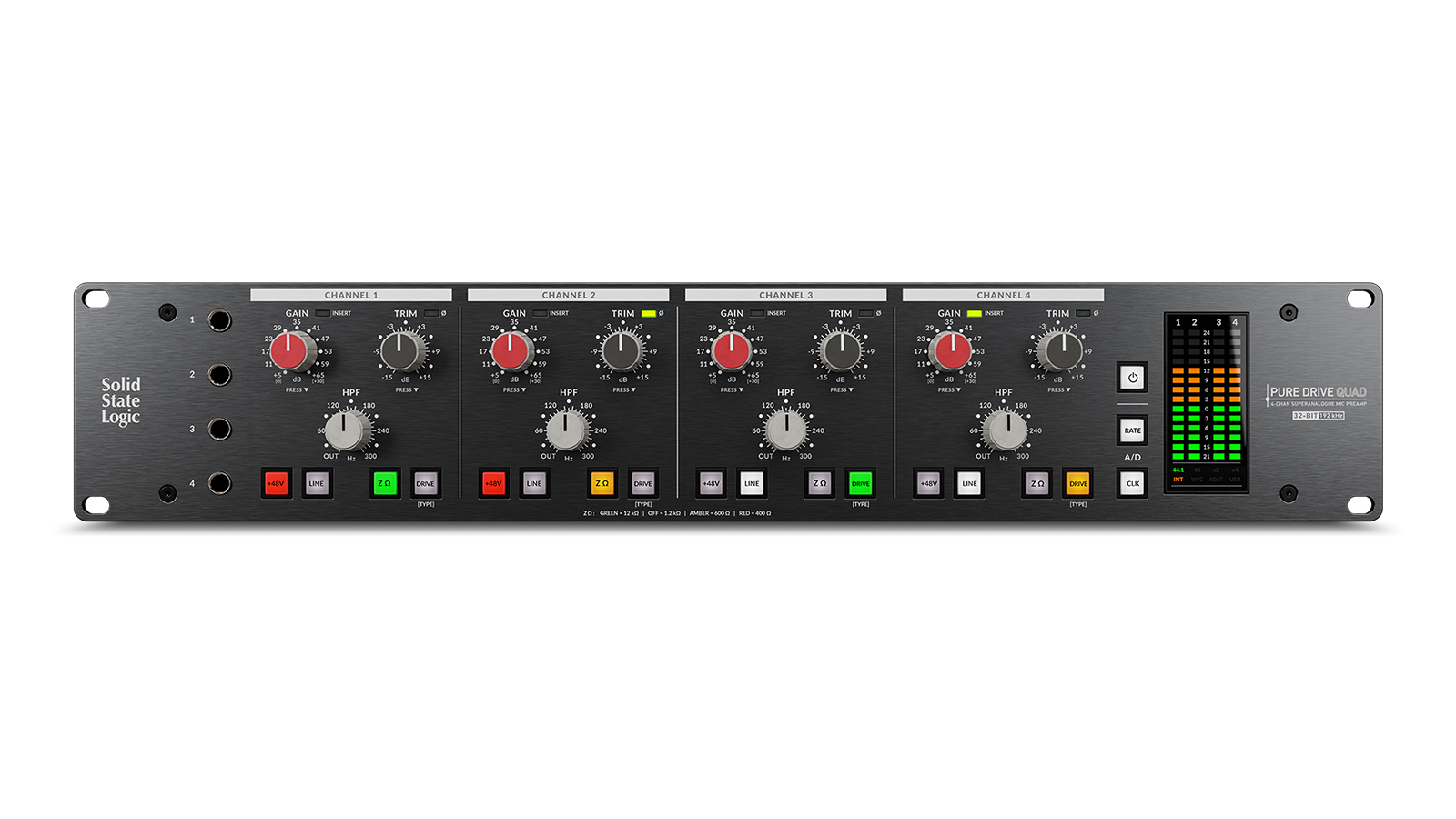

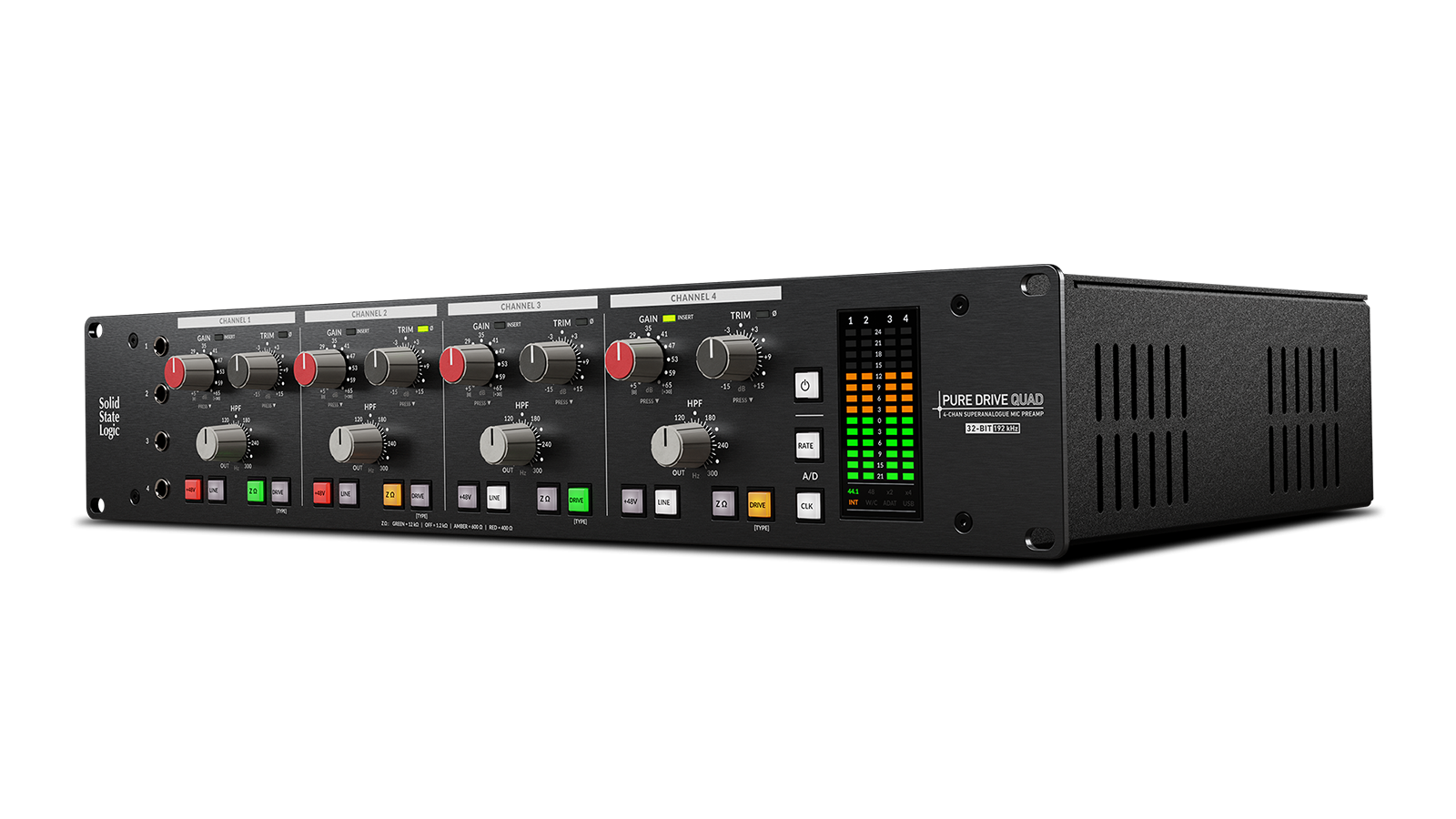

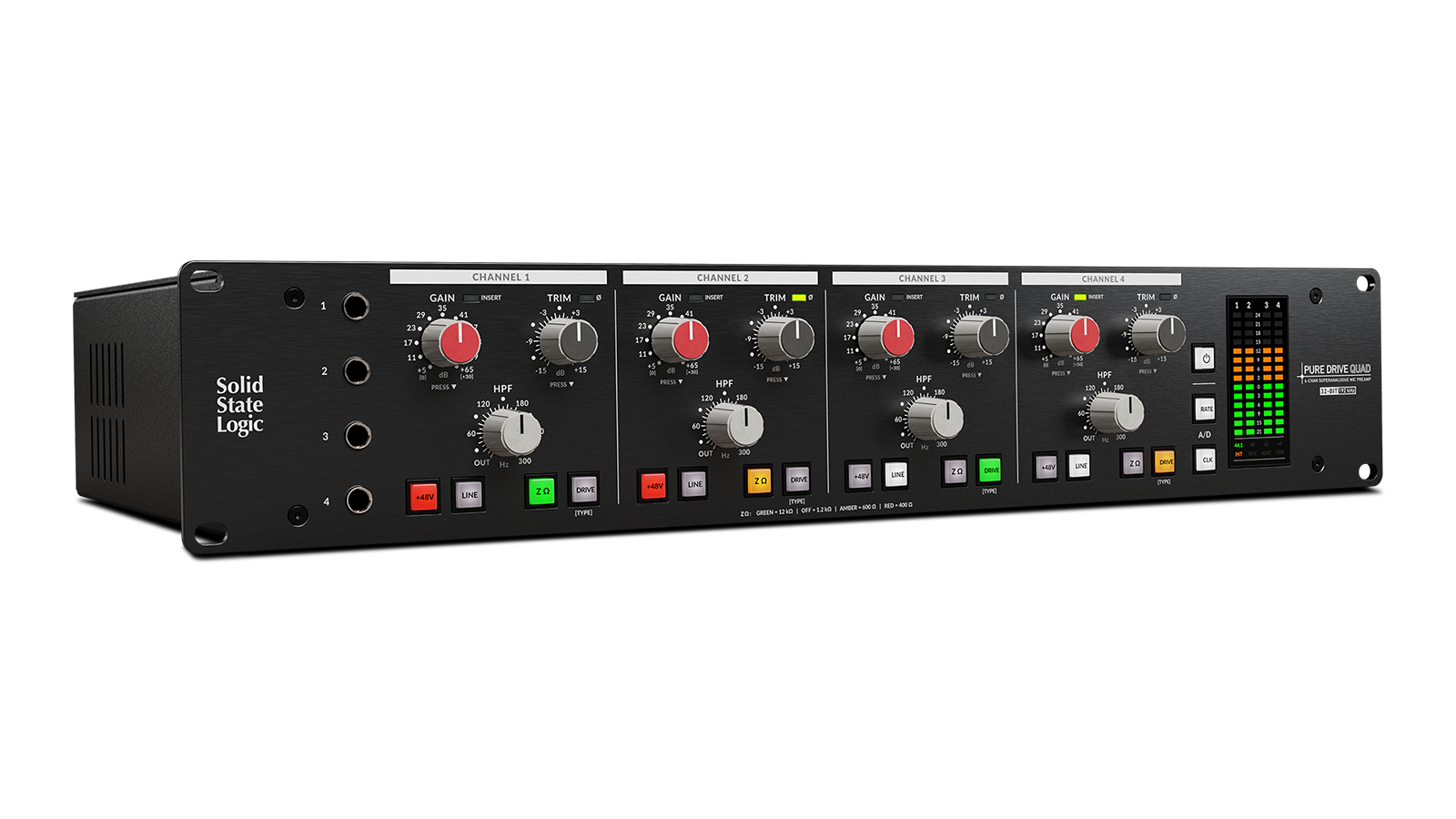

Solid State Logic Pure Drive Quad 4-Channel Microphone Preamplifier

Solid State Logic Pure Drive Quad 4-Channel Microphone Preamplifier

Mic Pre’s with Prestige
The PURE DRIVE QUAD brings Solid State Logic’s celebrated SuperAnalogue PureDrive™ microphone preamp technology—first introduced in the ORIGIN console—into a powerful 4-channel 2U rack unit. With an added DRIVE mode, expanded connectivity, and advanced digital conversion, it delivers the clarity, punch, and warmth SSL preamps are famous for. The original PureDrive™ circuit offered a pristine sound with the option to shift into a harmonically rich driven tone, and PURE DRIVE QUAD carries that legacy forward.

ORIGIN consoles paired with PureDrive™ preamps are found in some of the world’s most prestigious studios. Whether you’re capturing delicate acoustic performances in PURE mode or adding analog thickness to drums in DRIVE mode, the PureDrive™ design offers unmatched versatility and musicality.

Analogue Obsession
PURE DRIVE QUAD delivers four premium mic preamps featuring PURE and DRIVE modes, plus a new Asymmetric DRIVE option, enhanced digital connectivity, and an integrated USB interface. Each channel provides four impedance settings, independent +48V phantom power, polarity invert, and a fully sweepable High Pass Filter.

Built with digitally controlled analogue circuits—no mechanical switches or pots in the signal path—PURE DRIVE QUAD ensures long-term reliability, precise recall, and perfectly matched channels. Each preamp can switch between three DRIVE flavours: Clean, Classic Drive, and Asymmetric Drive.

Three Distinct Sonic Flavours

Clean Mode (White)
Ultra-low noise, transparent SSL preamp performance that captures the source with exceptional detail.

Classic Drive (Amber)
Symmetrical DRIVE that generates predominantly odd harmonics—identical to the ORIGIN console.

Asymmetric Drive (Green)
A new colouration option exclusive to PURE DRIVE, emphasising even harmonics for extra weight, warmth, and softened transients.

Mic Impedance Input
Four selectable impedance values allow precise mic matching or creative tonal shaping—particularly powerful when using ribbon and dynamic microphones.

Independent Gain, Trim & HPF Controls
• Gain: Stepped control up to +65 dB
• Trim: 31-step precision control for fine level matching or driving the input for colour
• HPF: Variable high-pass filter up to 300 Hz

Advanced Connectivity

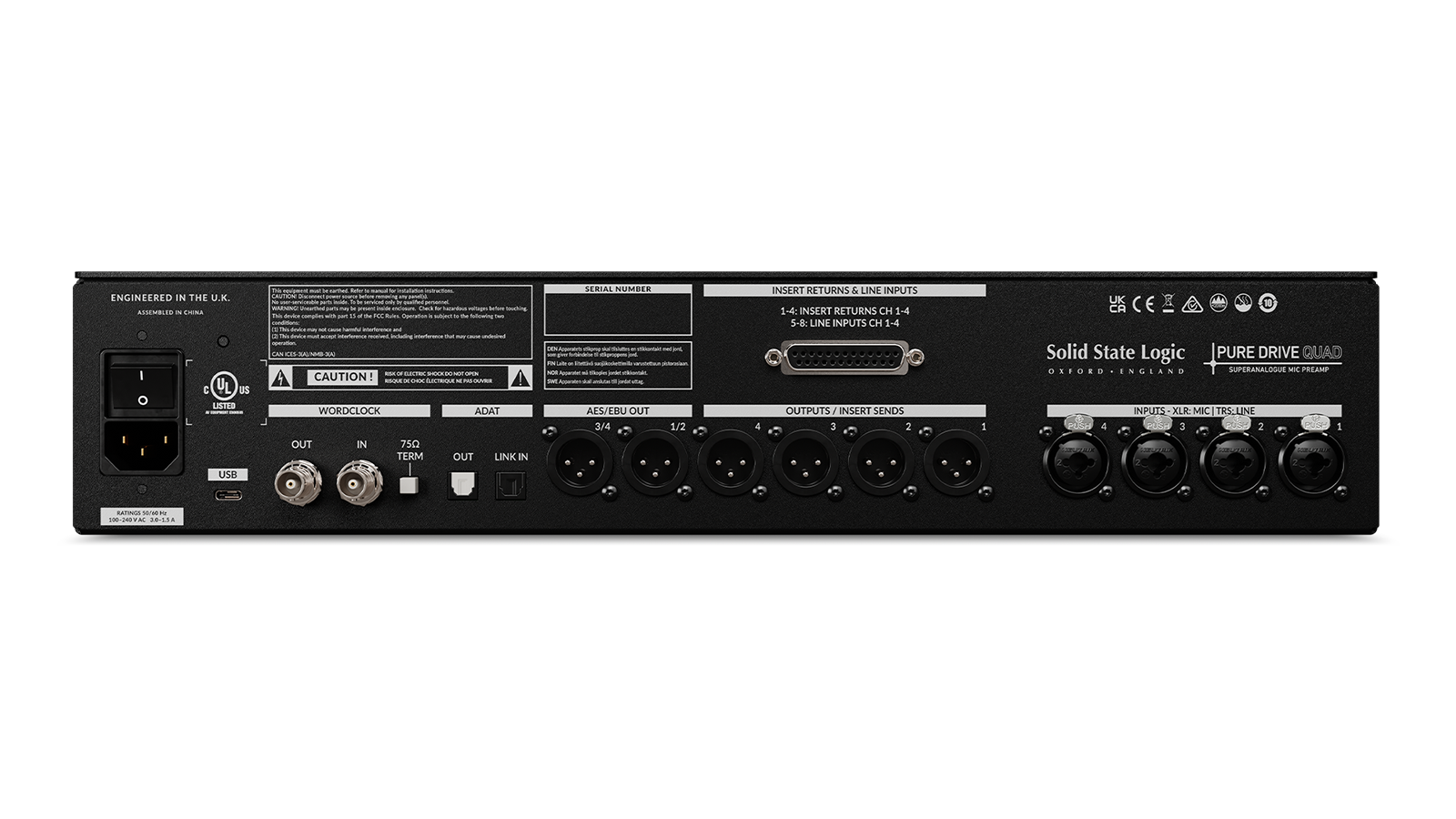

PURE DRIVE QUAD offers extensive analogue and digital I/O for professional studio, project studio, and location recording environments. Rear combo XLR inputs, front Hi-Z/DI inputs with auto-detection, and three D-Sub connectors support both line-level input and insert paths. Insert returns/ADC inputs accept up to +24 dBu.

Digital options include an integrated USB soundcard (up to 32-bit/192 kHz), dual AES/EBU output pairs, ADAT out, and ADAT LINK IN for cascading two units. AES and ADAT outputs can also be repurposed to route DAW audio from the USB soundcard. Auto-ranging word clock I/O ensures solid digital clocking.

Key Features

• Four high-performance SuperAnalogue PureDrive™ mic preamps

• +48V phantom power, polarity invert, and 3rd-order high-pass filter

• Stepped Gain up to +65 dB

• 31-step Trim with 1 dB increments for precise level control

• Three DRIVE modes per channel: Clean, Classic Drive, Asymmetric Drive

• Mic/Line switching via XLR, TRS, or D-Sub

• Four Hi-Z/DI instrument inputs with auto-detection

• Four mic preamp input impedance options for tonal shaping

• Balanced analogue outputs and insert sends

• +24 dBu line-level insert returns/ADC inputs

• Digital connectivity via ADAT, AES, and USB

• ADAT/AES outputs can source from DAW via USB

• USB soundcard mode: 12-in / 12-out @ 44.1/48 kHz

• Digitally controlled analogue electronics for recall and matching

• Up to 192 kHz / 32-bit conversion

• Selectable Auto-Sleep mode

• Auto-ranging Wordclock In/Out
