Solid State Logic SixChannel Analogue 2U Stereo Processor

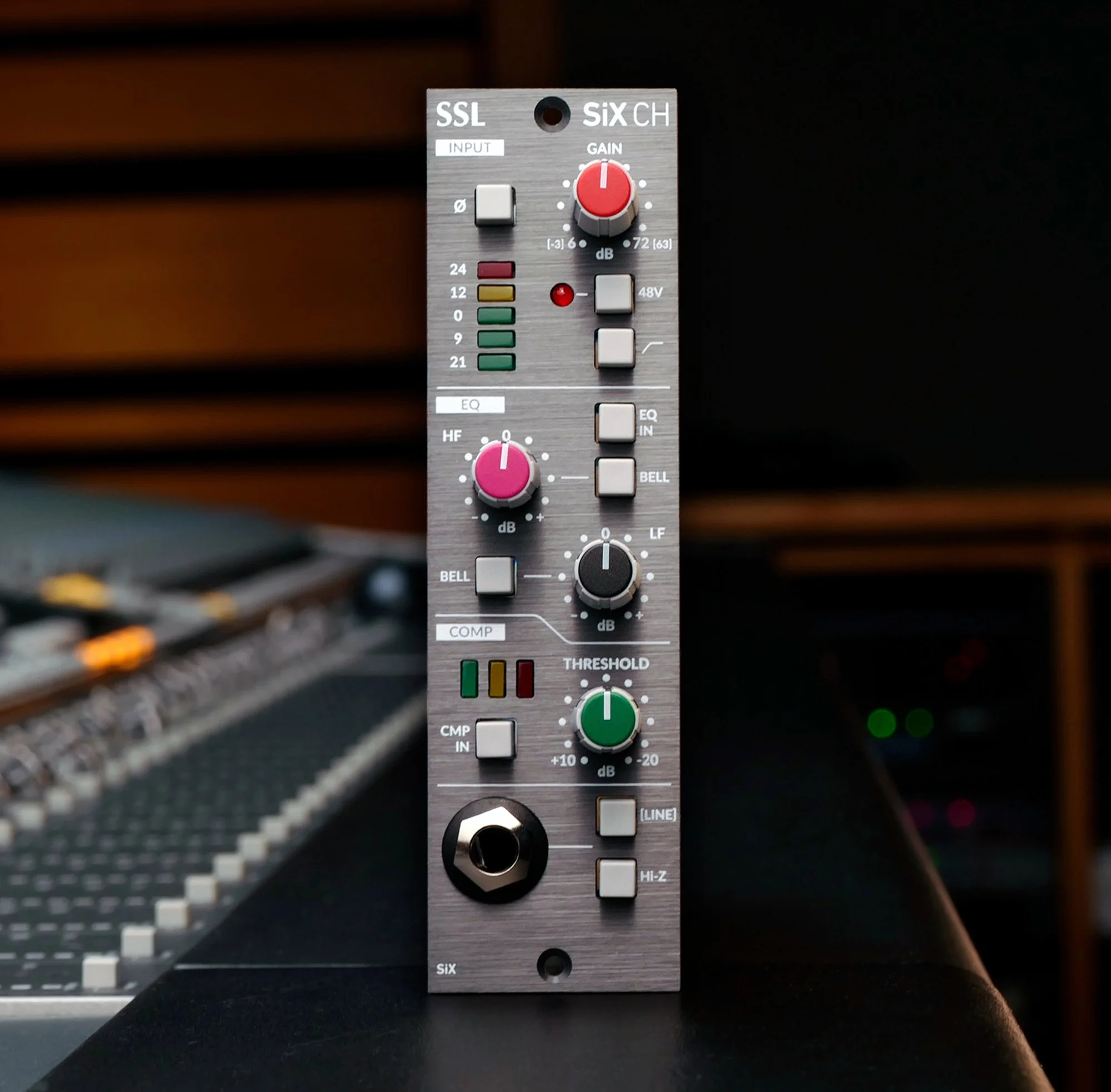

SSL SiX Channel Strip (SiX CH) – 500 Series

Deceptively simple. Extremely powerful.
The SSL SiX CH brings the renowned SuperAnalogue™ channel processing from the SSL SiX console into a compact single-slot 500 Series module. With its premium mic preamp, musical 2-band EQ, versatile one-knob compressor, and convenient front-panel line input, the SiX CH is a professional-grade channel strip suitable for any studio setup.

Key Features

SuperAnalogue™ Mic Preamp

• Ultra-clean, fast, and punchy SSL preamp design

• Wide gain range for all source types

• Low noise performance

• +48V phantom power

• Phase invert switch

High Pass Filter

• 12 dB/octave HPF at 75 Hz

• Helps remove rumble and low-end noise

Classic SSL HF & LF EQ

• 2-band musical EQ taken from the SSL SiX console

• High shelf: 3.5 kHz / Bell: 5 kHz

• Low shelf: 60 Hz / Bell: 200 Hz

• ±15 dB gain range

• Switchable between shelf and bell curves

One-Knob Channel Compressor

• SSL feed-forward design

• Program-dependent attack

• Automatic makeup gain

• Transparent yet effective compression

Front-Panel TRS Line Input

• Fast access for instruments & external gear

• Switchable Hi-Z mode (1MΩ input impedance)

• Ideal for guitars, basses, and high-impedance sources

• Can be used as a feature-rich summing module input

Metering

• 5-segment LED meter in dBu for precise level monitoring

Technical specifications

Module signal: Mono

Pre-Amp Gain: Variable from +6 to +72 dB (Mic), -3 to +63dB (Line)

Mic Pre EIN: Typically 129dB

THD+N: <0.0015%

CMRR: >80dB (Mic), >70dB (Line)
