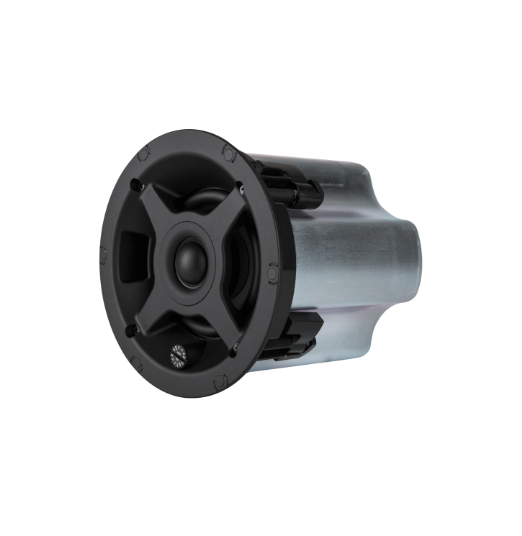

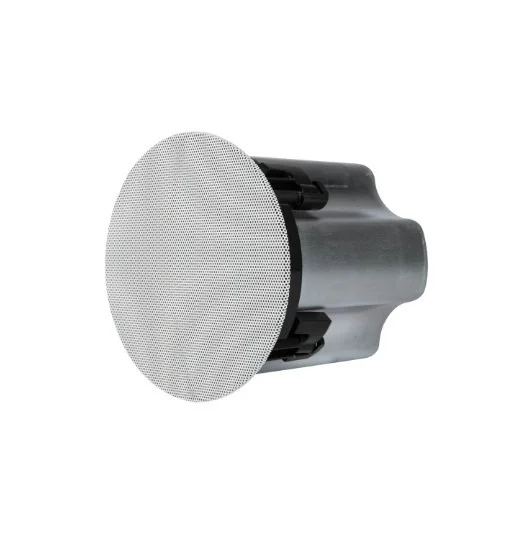

Sonance PS-C43RT Professional 4" In Ceiling Speaker

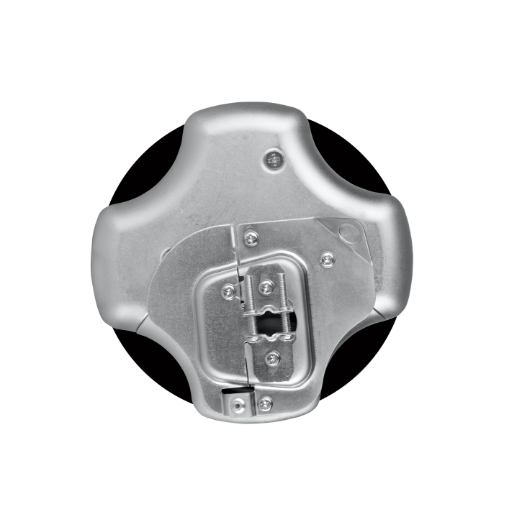

The Sonance PS-C43RT in-ceiling speaker features a bezel-less magnetic grille, optional square adapter, high-excursion woofer, and pivoting tweeter for precise sound coverage. Its sealed metal enclosure includes cable clamping, a removable Euro block connector, and seismic attachment. UL 1480 and UL 2043 certifications ensure safety and reliability in installations.


Key Features

• Class-leading sensitivity & sonic performance

• Exceptional off-axis response

• Heavy duty voice coil for longevity and reliability

• Full-fidelity transformer for uncompromised tonality

• Consistent voicing across product range

• Bezel-less design for clean and minimalistic aesthetic

• Optional black grilles in round or square

• Magnetic grille retention for fast installation and removal

• Finger-adjustable selector tap

• One-step simplified painting process

  Specifications

  SKU

  45130 (White)

  HF Driver

  1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled

  LF Driver

  4" (100mm) Polypropylene Cone, Butyl Rubber Surround

  Frequency Response (+/- 10db)

  57Hz - 25kHz

  Frequency Response (+/- 3db)

  75Hz - 20kHz

  Power Handling (RMS)

  60W program, 30W pink noise

  Sensitivity

  87dB (2.83V/1m)

  Rated Maximum SPL

  105dB @ 1 meter (3.3 feet), 110dB peak

  Nominal Impedance (Ohms)

  8 ohms

  Transformer Taps

  70 V / 100 V: 30W, 15W and 7.5W 70 V: 3.8W

  Dimensions (Diameter x D)

  6.3" x 7.01" (160.02mm x 178.05mm)

  Cut-Out Dimensions (Diameter)

  5.875" (149.23mm)

  Knockout

  One, Side mounted 0.75" (19mm)

  Weight

  5.63 lbs. (2.55kg)

  Grille

  One Piece Paintable Grille with Magnetic Retention

  Input Connector

  Four pin, Euroblock with loop output connections

  Certifications

  UL 1480; UL 2043; NFPA 90A; NFPA 70

  Suspension Points

  One, on top surface

  Maximum SPL (Peak)

  110dB peak

  Architectural Specifications

  The loudspeaker shall be of the two-way type comprising a single flush mount enclosure containing
