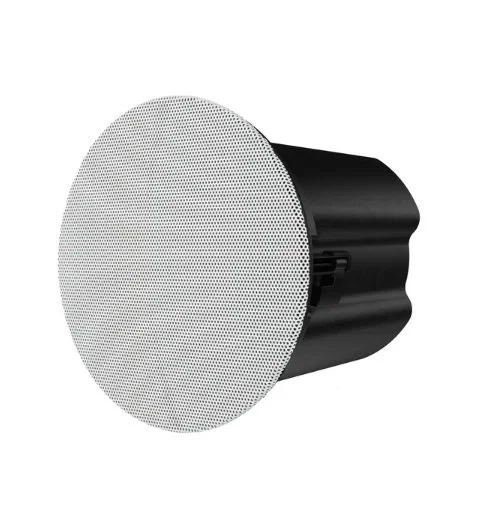

Sonance PS-C61RT-WH Professional In Ceiling Speaker

The Sonance PS-C61RT In Ceiling Speaker features a bezel less, magnetically secured grille for easy installation. It includes a 6.5" woofer for deep bass and a .75" tweeter for clear highs. With a UL94V-0 enclosure, integrated cable management, and multiple certifications, it ensures safety and seamless aesthetic integration.


Key Features

• Class-leading sensitivity & sonic performance

• Exceptional off-axis response

• Heavy duty voice coil for longevity and reliability

• Full-fidelity transformer for uncompromised tonality

• Consistent voicing across product range

• Bezel-less design for clean and minimalistic aesthetic

• Optional black grilles in round or square

• Magnetic grille retention for fast installation and removal

• Finger-adjustable selector tap

• One-step simplified painting process


  Specifications

  SKU

  45166 (White)

  HF Driver

  0.75" (19mm) Cloth Dome, Ferrofluid Cooled

  LF Driver

  6.5" (165mm) Polypropylene Cone, Butyl Rubber Surround

  Frequency Response (+/- 10db)

  60Hz-25khz

  Frequency Response (+/- 3db)

  83Hz - 20kHz

  Power Handling (RMS)

  100W program, 50W pink noise

  Sensitivity

  91dB (2.83V/1m)

  Rated Maximum SPL

  108dB @ 1 meter (3.3 feet), 116dB peak

  Nominal Impedance (Ohms)

  8 ohms

  Transformer Taps

  70 V / 100 V: 32W, 16W and 8W 70 V: 4W

  Dimensions (Diameter x D)

  9.13" x 8.86" (231.9mm x 225.04mm)

  Cut-Out Dimensions (Diameter)

  8.25" (209.55mm)

  Knockout

  One, Side mounted 0.75" (19mm)

  Weight

  6.88 lbs. (3.12kg)

  Input Connector

  Four pin, Euro block with loop output connections

  Certifications

  UL1480A; UL2043; EN 54; NFPA90A; NFPA70; CSA-C22.2 No.205; CSA C22.1

  Suspension Points

  One, on top surface

  Maximum SPL (Peak)

  116dB peak

  Architectural Specifications

  The loudspeaker shall be of the two way type comprising a single flush mount enclosure containing...
