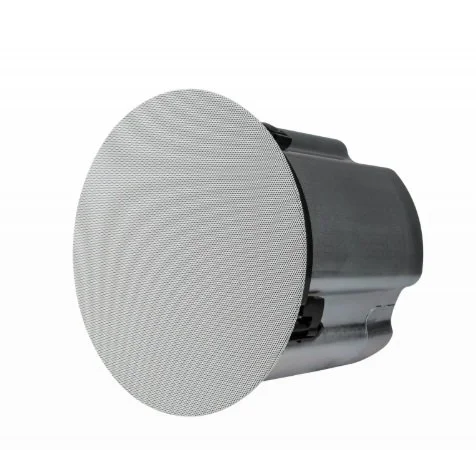

Sonance PS-C83RWT-WH Professional 8" In Ceiling Speaker

The Sonance PS-C83RWT in-ceiling woofer features a bezel-less magnetic grille, optional square adapter, and an ultra-high-excursion 8" woofer for powerful bass. Its sealed metal enclosure includes cable clamping, a removable Euroblock connector, and seismic attachment. UL 1480 and UL 2043 certified, it ensures safety and reliable bass augmentation.


Key Features

• Class-leading sensitivity & sonic performance

• Exceptional off-axis response

• Heavy duty voice coil for longevity and reliability

• Full-fidelity transformer for uncompromised tonality

• Consistent voicing across product range

• Bezel-less design for clean and minimalistic aesthetic

• Optional black grilles in round or square

• Magnetic grille retention for fast installation and removal

• Finger-adjustable selector tap

• One-step simplified painting process



  Specifications

  SKU

  40133 (White)

  LF Driver

  8" (203mm) Polypropylene Cone, Butyl Rubber Surround

  Frequency Response (+/- 10db)

  32Hz – 300Hz

  Frequency Response (+/- 3db)

  50Hz – 150Hz

  Power Handling (RMS)

  200W program, 125W pink noise

  Sensitivity

  89dB (2.83V/1m)

  Rated Maximum SPL

  110dB @ 1 meter (3.3 feet, 116dB peak

  Nominal Impedance (Ohms)

  8 ohms

  Transformer Taps

  70 V / 100 V: 120W, 60W and 30W 70 V: 15W

  Dimensions (Diameter x D)

  11.06" x 9.84" (280.92mm x 249.94mm)

  Cut-Out Dimensions (Diameter)

  10.125" (257.18mm)

  Knockout

  One, Side mounted 0.75" (19mm)

  Weight

  14.95 lbs. (6.78kg)

  Grille

  One Piece Paintable Grille with Magnetic Retention

  Input Connector

  Four pin, Euroblock with loop output connections

  Certifications

  UL 1480; UL 2043; NFPA 90A; NFPA 70

  Suspension Points

  One, on top surface

  Maximum SPL (Peak)

  116dB peak

  Architectural Specifications

  The loudspeaker shall be of the woofer-type comprising a single flush mount enclosure containing
