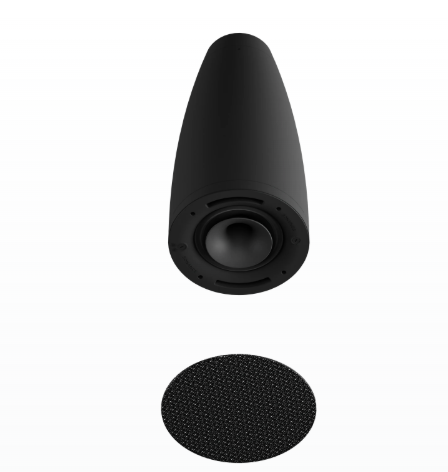

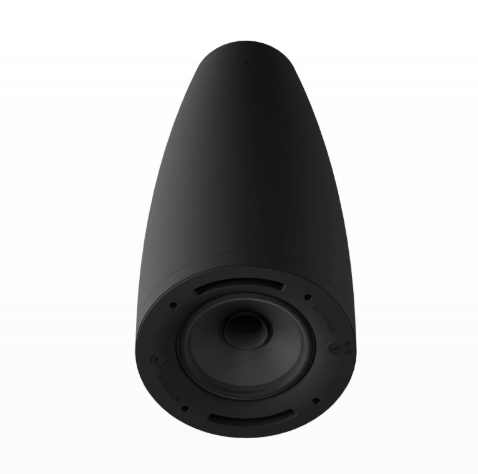

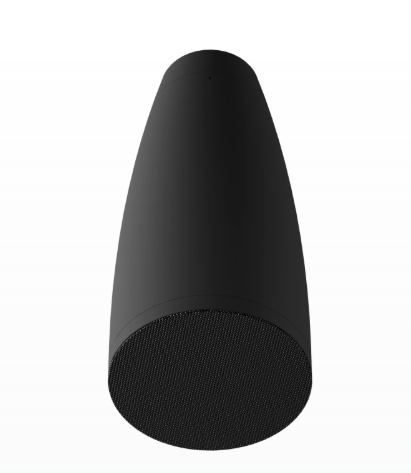

Sonance PS-P85T Black Professional Pendant Speaker

The PS-P85T is a high-output pendant loudspeaker for professional commercial installations. Sharing the same 8" aluminum cone driver and neodymium compression driver platform as the PS-C85RT, it delivers 88dB sensitivity and selectable 120°/80° dispersion with full 70V/100V transformer compatibility.


Key Features

• Field-selectable 120° or 80° dispersion coverage

• Horn and collar assembly ships in-box; field-adjustable

• 1.4" compression driver engineered for high-SPL commercial environments

• Extended low-frequency response

• Integrated 70V/100V transformer, 120W max tap

• Part of a complete High Output form factor family


  Specifications

  SKU

  40234 (Black - RAL 7021), 40233 (White - RAL 9003)

  HF Driver

  1.4" (36mm) aluminum dome compression driver, 36mm Voice Coil Size, 1" (25mm) Exit Size, Neodymiu...

  LF Driver

  8" (203mm) aluminum cone, Santoprene surround, 60.55mm Voice Coil Size, Ferrite Magnet

  Frequency Response (+/- 10db)

  36.6Hz - 25kHz

  Frequency Response (+/- 3db)

  41.4Hz - 20kHz

  Power Handling (RMS)

  150 watts (600 watts peak), 100 hours

  Sensitivity

  88dB SPL

  Enclosure

  Polypropylene plastic (UL94V-0)

  Rated Maximum SPL

  109dB, 115dB peak

  Nominal Impedance (Ohms)

  8 ohms

  Transformer Taps

  70 V / 100 V: 120W, 60W and 30W 70 V: 15W

  Coverage Pattern 1kHz to 10kHz

  120 or 80 Degree Axis Symmetric

  Dimensions (Diameter x D)

  11.17" x 24.69" (283.72mm x 627.13mm)

  Weight

  23.55 lbs. (10.68kg)

  Grille

  Steel

  Input Connector

  Four pin, Euroblock with loop output connections

  Certifications

  UL 1480A;CSA-C22.2 No.205;NFPA70;NFPA 90A

  Suspension Points

  Back

  Maximum SPL (Peak)

  115dB peak

  Architectural Specifications

  The loudspeaker shall be of the two-way type comprising a single pendant mount enclosure
