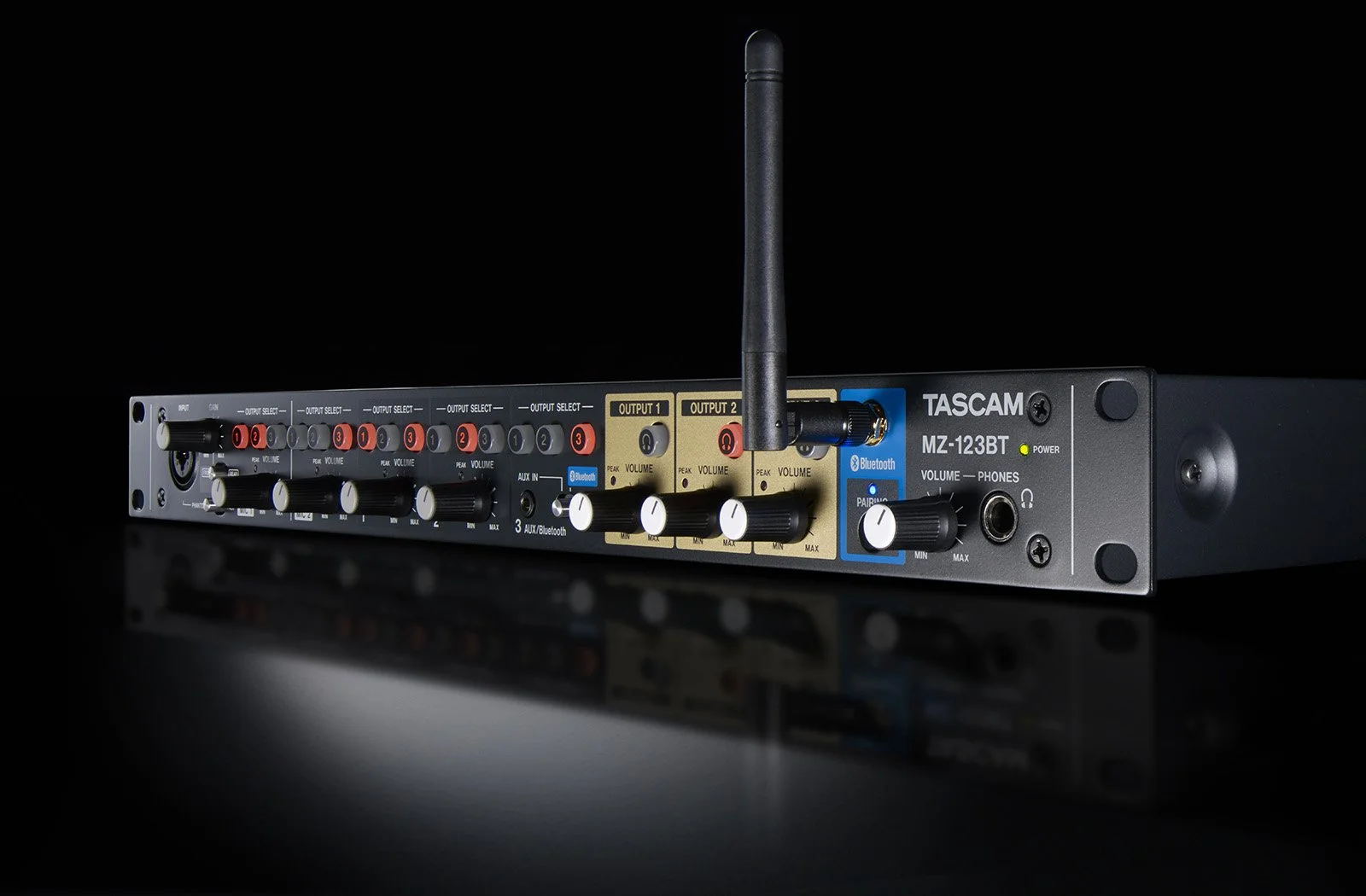

TASCAM MZ-123BT
Compact 1U Multi-Channel, Multi-Zone Professional Installation Mixer
The TASCAM MZ-123BT is a compact 1U mixer designed for professional installations, offering versatile routing, mixing, and distribution of up to three channels of music and announcements. Perfect for commercial environments such as retail stores, restaurants, bars, cafes, hotels, or any space requiring independent audio routing and announcement capabilities. The Bluetooth®-enabled mixer features a simple, intuitive layout for easy operation, two versatile mic inputs, and automatic attenuation of background music for clear announcements or paging.
Discrete Zone Audio Control and Routing
The MZ-123BT provides three discrete zone outputs with individual volume control, allowing background music to be routed to specific areas or rooms in restaurants, hotels, retail stores, or other commercial spaces.
Three Outputs with Euroblock Connectors

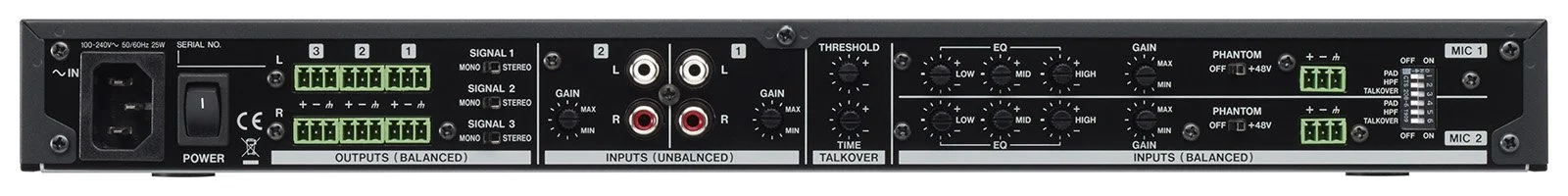

The back panel features three pairs of stereo outputs with Euroblock connectors for fixed installations. Each output has a MONO/STEREO switch for flexible configuration.
Three Input Channels
Channel 1: LINE input (RCA, Unbalanced)
Channel 2: LINE input (RCA, Unbalanced)
Channel 3: Bluetooth® / 3.5mm (1/8") AUX input
Each input includes a Volume Control knob and a Zone Routing button (1, 2, or 3) for routing audio to desired areas.
MIC Inputs and Talk Over
Two mic inputs allow announcements or paging.
Individual +48V phantom power switch on each mic channel.
MIC 1 can be connected via front panel XLR/TRS combo jack or rear Euroblock connectors.
Talk Over feature automatically attenuates background music in the desired zone when mic audio is detected.
3-band EQ and high-pass filter for adjusting input channel tone and quality.
Simple Layout for Ease of Operation

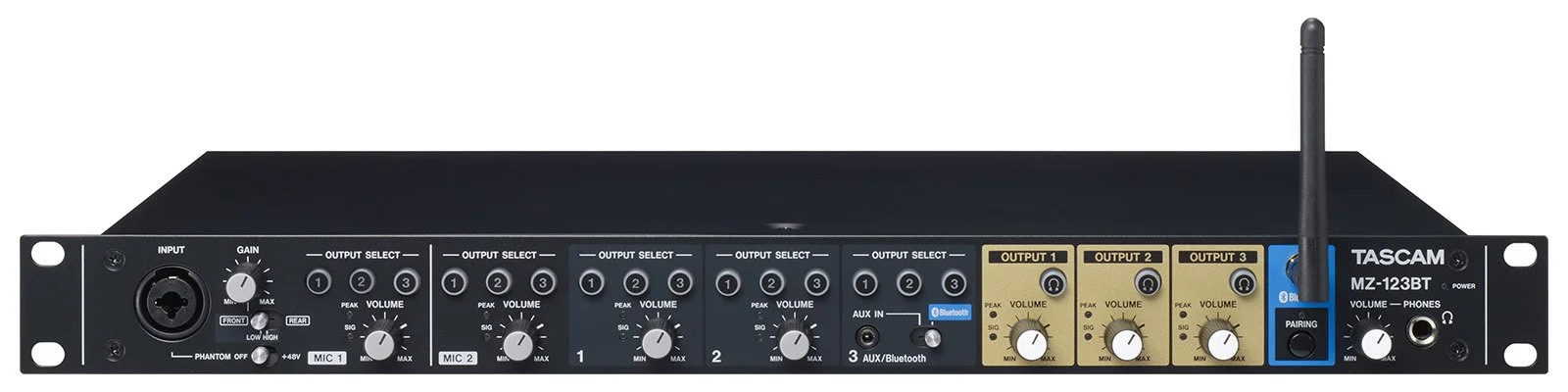

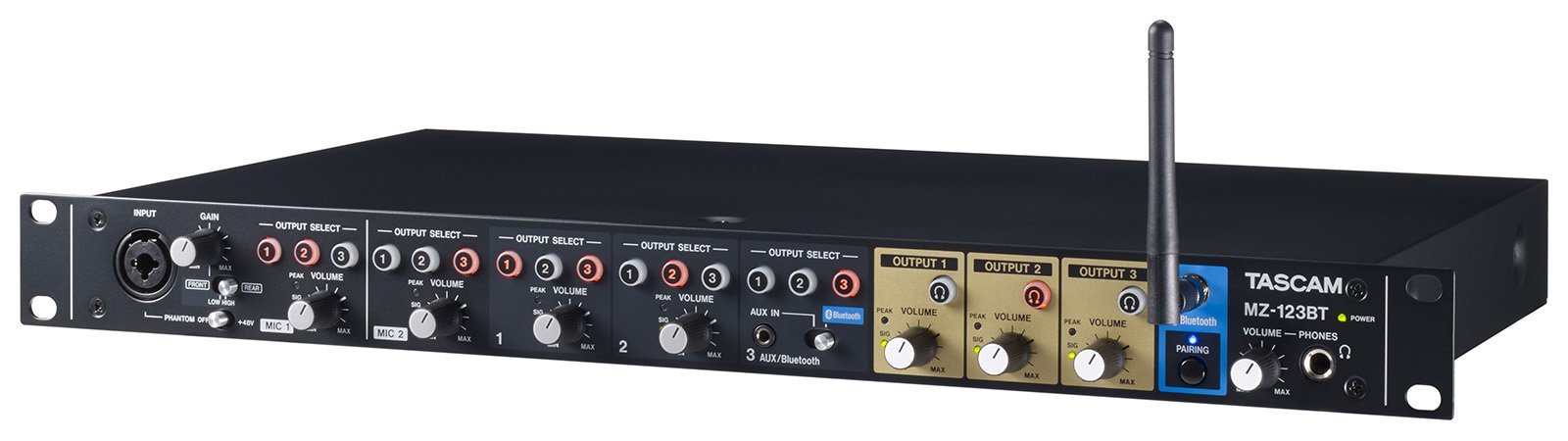

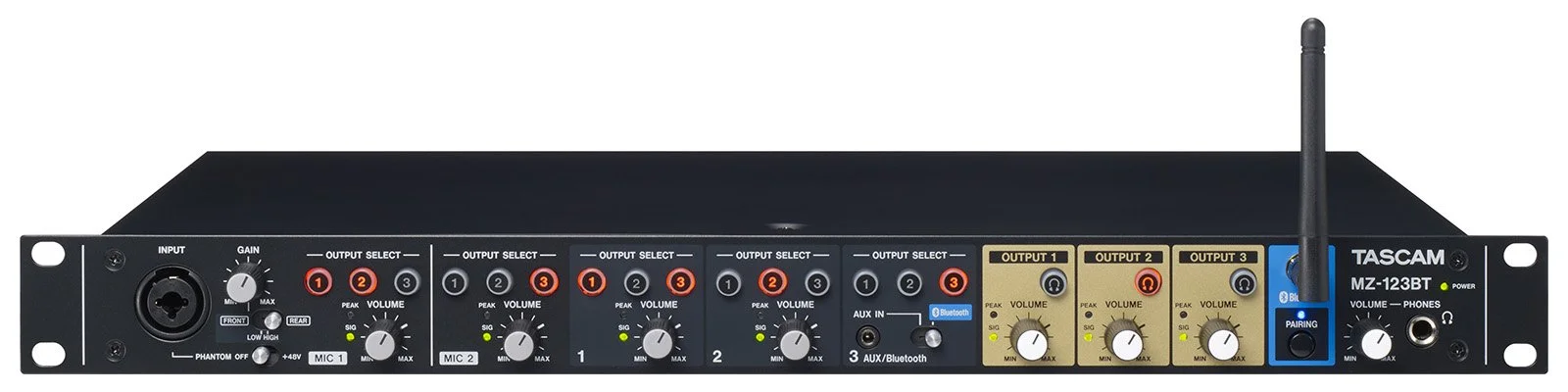

Front-panel controls allow intuitive operation of volume, output, zone selection, and Bluetooth® pairing. Advanced configuration for EQ, gain, and threshold is available via dedicated back panel knobs. A headphone jack enables monitoring of each output channel.
Features
Input channel sources can be easily assigned to each of the three individual Zone Outputs.
MONO/STEREO select switch on each output channel for flexible configuration.
Euroblock connectors provide seamless connection and setup for fixed installations.
3 Input Channels:
Channel 1: LINE input (RCA, Unbalanced)
Channel 2: LINE input (RCA, Unbalanced)
Channel 3: Bluetooth® / 3.5mm (1/8") AUX input
Microphone Inputs:
2 MIC inputs for announcements or Talk Over.
Individual +48V phantom power switch on each mic channel.
3-band EQ and High Pass Filter for adjusting input channel tone and quality.
MIC 1 connection available via front panel XLR/TRS combo jack or rear Euroblock connectors.
Additional Features:
Talk Over feature automatically attenuates background music in the desired zone when mic audio is detected.
Headphone jack for monitoring each output channel.
Compact 1U rack-mount size for easy installation in standard racks.
