Introducing Waves IONIC 24: The Pinnacle of Live Sound Quality
Experience unmatched punch, clarity, and precision with the Waves IONIC 24 stage box. Engineered for excellence, it enhances every input—from vocals to snare drums—delivering rich, detailed sound with uncompromising accuracy and warmth.
At its core are Waves Signature Preamps, featuring fully discrete analog circuits that provide maximum headroom, lightning-fast transient response, and an incredibly low noise floor. Choose between transparent preamp sound or harmonically enhanced analog tone per input.
Designed as the perfect I/O expansion for the eMotion LV1 live mixing console, IONIC 24 complements the LV1’s world-class performance with seamless integration and fast, reliable setup.
Key Features
24 in / 18 out SoundGrid stage box with superior audio quality
Seamless integration with the eMotion LV1 live mixing console
24 mic/line inputs with original-design Waves Signature Preamps
18 line outputs (selectable between 18 dBu / 24 dBu)
Stereo AES: 1 in / 2 out, plus two independent headphone outputs
Optional analog-modeled harmonic enhancement per input
Sample rates: 44.1, 48, 88.2, and 96 kHz
Analog input impedance selector: classic 2kΩ or modern 7kΩ
Rugged 3U rack-mountable chassis for touring durability
2-year warranty upon registration
Optional external power supply available separately
Unmatched Preamp Performance
At the heart of IONIC 24 are the new Waves Signature Preamps—fully discrete, high-end analog circuits designed for wide dynamic range and flawless signal handling. The result is enormous headroom, ultra-clean transients, and minimal noise—perfect for achieving a clear, powerful live mix.
Timeless Analog Warmth
IONIC 24 gives your sources a rich, full-bodied tone with the analog-modeled HMX harmonic enhancer. This feature can be activated or bypassed per channel, allowing total control between transparent fidelity or classic analog warmth.
Crystal-Clear Outputs
From stage wedges and in-ear monitors to full PA systems, IONIC 24’s 18 line outputs and dual headphone outs deliver pristine audio with exceptional headroom—ensuring clarity and presence across any setup.
Seamless LV1 Integration
IONIC 24 integrates effortlessly with the Waves eMotion LV1 mixer. Configuration is quick and automatic, while full preamp and output control is accessible directly from the LV1 interface—so you can focus entirely on your mix, not the setup.
Enhanced Mic Flexibility
Choose your sonic character with the analog impedance selector—switch between classic 2kΩ or modern 7kΩ settings to match the response of your stage microphones and instruments perfectly.
Introducing Waves IONIC 24: The Pinnacle of Live Sound Quality
Experience unmatched punch, clarity, and precision with the Waves IONIC 24 stage box. Engineered for excellence, it enhances every input—from vocals to snare drums—delivering rich, detailed sound with uncompromising accuracy and warmth.
At its core are Waves Signature Preamps, featuring fully discrete analog circuits that provide maximum headroom, lightning-fast transient response, and an incredibly low noise floor. Choose between transparent preamp sound or harmonically enhanced analog tone per input.
Designed as the perfect I/O expansion for the eMotion LV1 live mixing console, IONIC 24 complements the LV1’s world-class performance with seamless integration and fast, reliable setup.
Key Features
24 in / 18 out SoundGrid stage box with superior audio quality
Seamless integration with the eMotion LV1 live mixing console
24 mic/line inputs with original-design Waves Signature Preamps
18 line outputs (selectable between 18 dBu / 24 dBu)
Stereo AES: 1 in / 2 out, plus two independent headphone outputs
Optional analog-modeled harmonic enhancement per input
Sample rates: 44.1, 48, 88.2, and 96 kHz
Analog input impedance selector: classic 2kΩ or modern 7kΩ
Rugged 3U rack-mountable chassis for touring durability
2-year warranty upon registration
Optional external power supply available separately
Unmatched Preamp Performance
At the heart of IONIC 24 are the new Waves Signature Preamps—fully discrete, high-end analog circuits designed for wide dynamic range and flawless signal handling. The result is enormous headroom, ultra-clean transients, and minimal noise—perfect for achieving a clear, powerful live mix.
Timeless Analog Warmth
IONIC 24 gives your sources a rich, full-bodied tone with the analog-modeled HMX harmonic enhancer. This feature can be activated or bypassed per channel, allowing total control between transparent fidelity or classic analog warmth.
Crystal-Clear Outputs
From stage wedges and in-ear monitors to full PA systems, IONIC 24’s 18 line outputs and dual headphone outs deliver pristine audio with exceptional headroom—ensuring clarity and presence across any setup.
Seamless LV1 Integration
IONIC 24 integrates effortlessly with the Waves eMotion LV1 mixer. Configuration is quick and automatic, while full preamp and output control is accessible directly from the LV1 interface—so you can focus entirely on your mix, not the setup.
Enhanced Mic Flexibility
Choose your sonic character with the analog impedance selector—switch between classic 2kΩ or modern 7kΩ settings to match the response of your stage microphones and instruments perfectly.

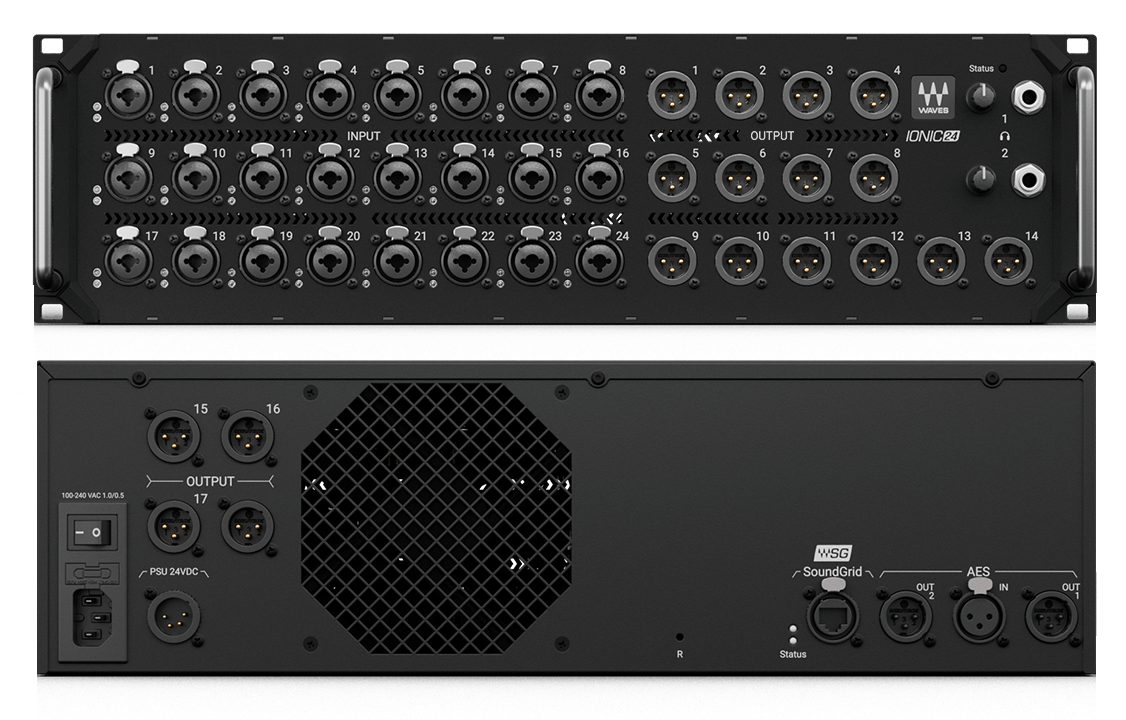

Image 1 of 3

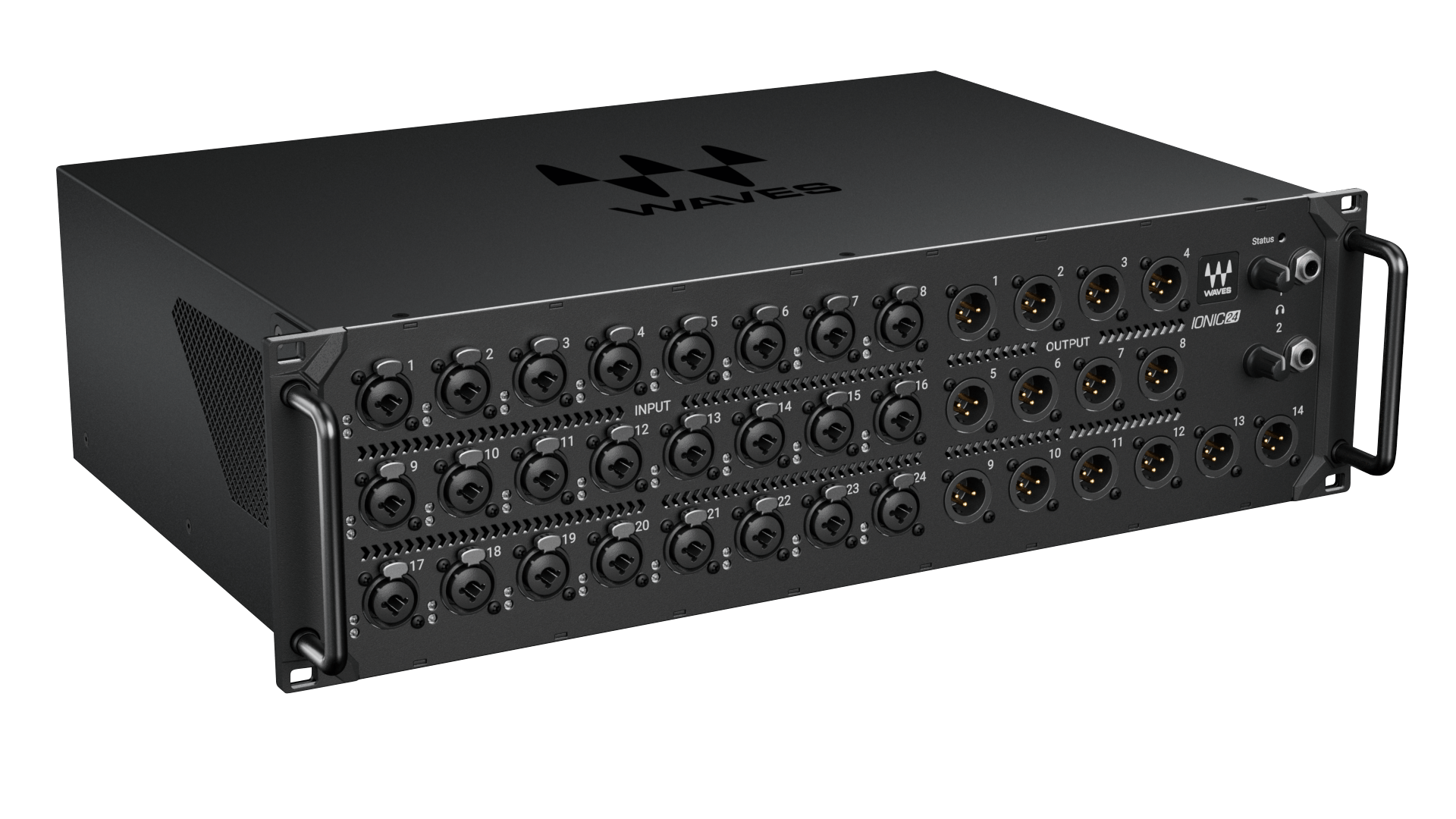

Image 2 of 3

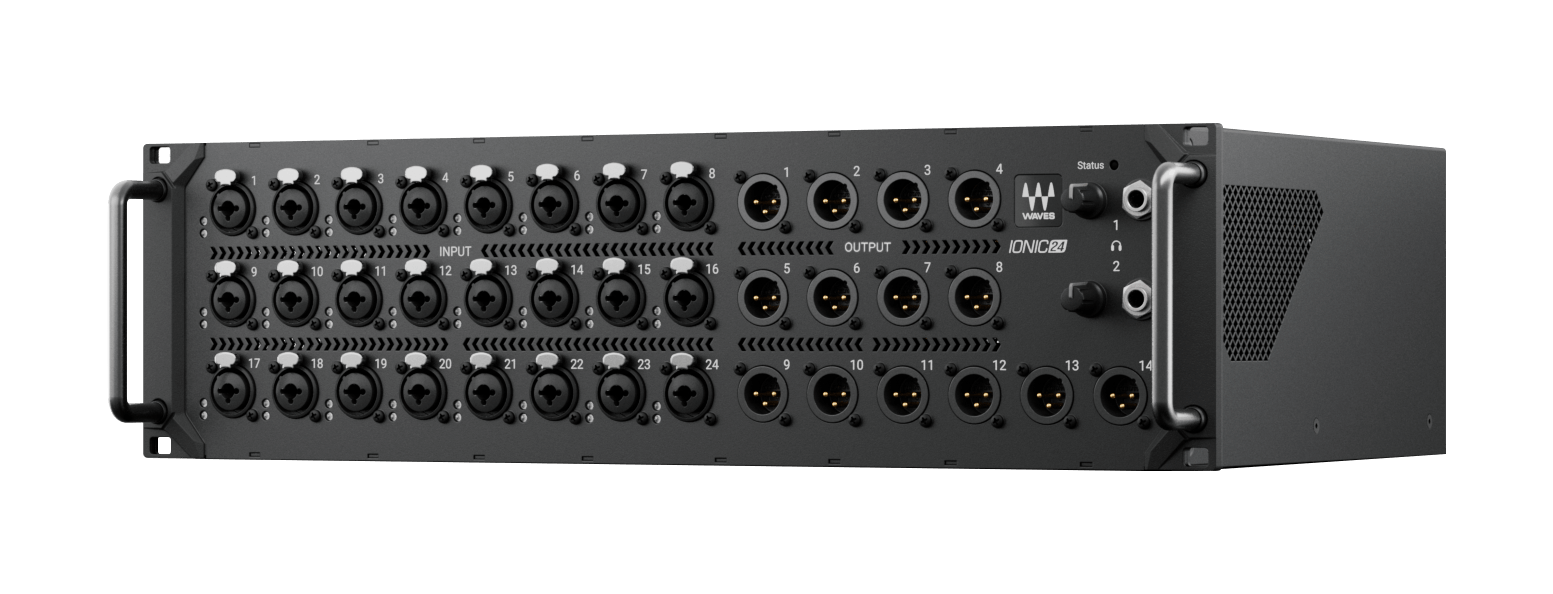

Image 3 of 3
