Robust Amplification for Large Venues
Redefine the audio experience in large venues with Scalable and Reliable Performance.
Designed to bring life to large venues, our product offers a world-class blend of flexibility, power, control, and durability. The DM’s 240-Watt Mixer Amplifier invites you to express your sound and amplify it like never before in a large-scale setting. With Toshiba amp transistors and copper toroidal transformers working harmoniously within, this is much more than a device; it’s a tool built for creators aspiring to leave a resonance in every corner of the room.
** 1 year Manufacturer’s warranty **

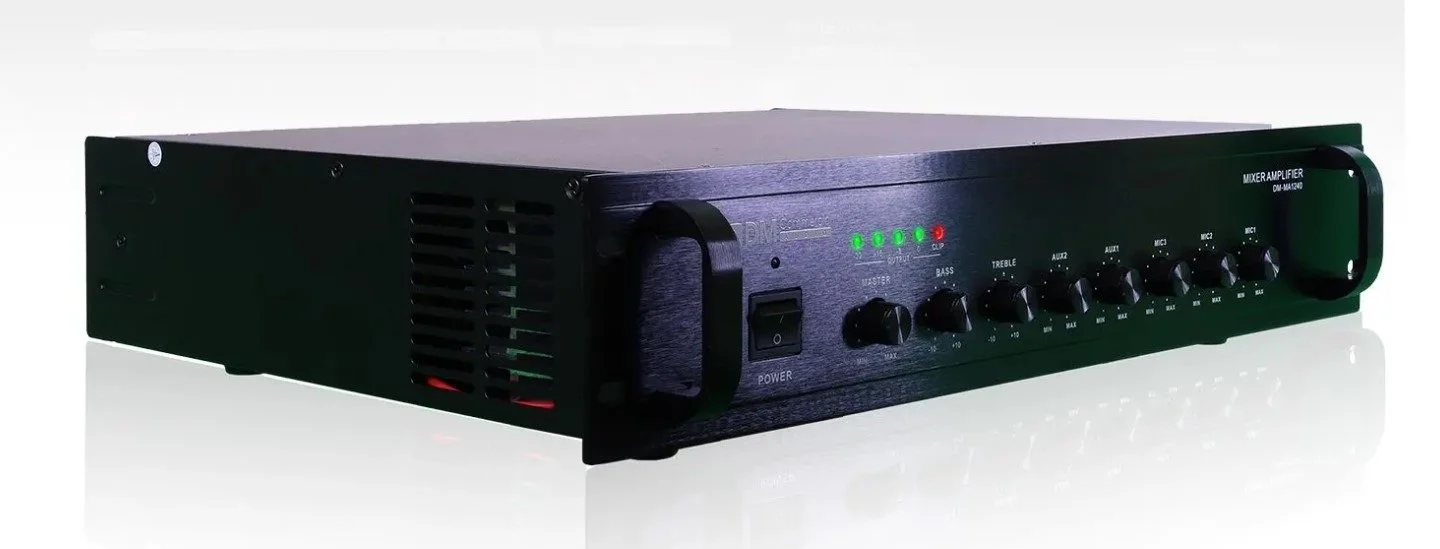

The DM-MA1240 is a 1-channel, 240-watt mixer amplifier designed for use in background music, paging, and public address applications. The unit is built with high-end internal components, made to withstand the rigors of long-term use in commercial environments. Perfect for retail stores, hotels, bowling alleys, grocery stores, larger restaurants and office buildings.
The DM-MA1240 Commercial Mixer Amplifier is made using high-quality Toshiba amplifier transistors and 100% pure copper toroidal transformers.
The amplifier provides intelligent protection against short circuits, overloads, and high temperatures. The built-in fan uses an intelligent startup function to reduce energy consumption and maximize heat dissipation.
The DM-MA1240 is easy to install and is made for long-term use in professional audio applications.
Key Features
Certification: CE & RoHS certified

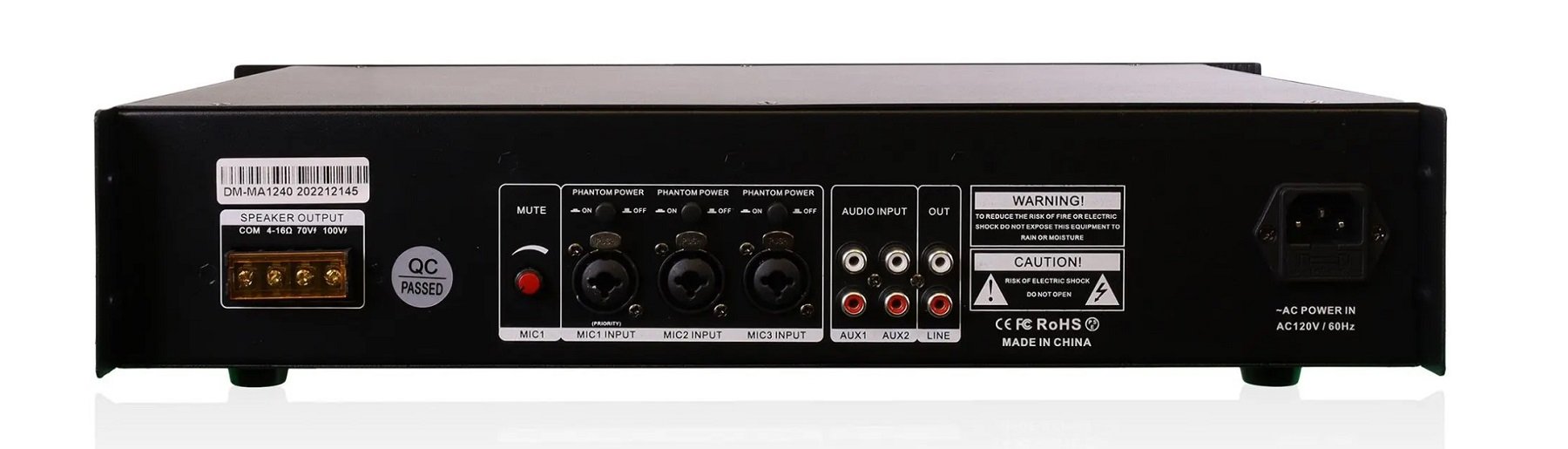

Inputs & Outputs: Equipped with (2) MIC inputs, (2) AUX inputs, (1) EMC, and (1) Line-Output Converter
Advanced MIC Features: MIC inputs provide phantom power, mute sensitivity, and MIC1 priority overriding MIC2/AUX1/AUX2 with 0–30 dB attenuation
Output Configuration: Supports 70V, 100V, and 4–16Ω speaker outputs

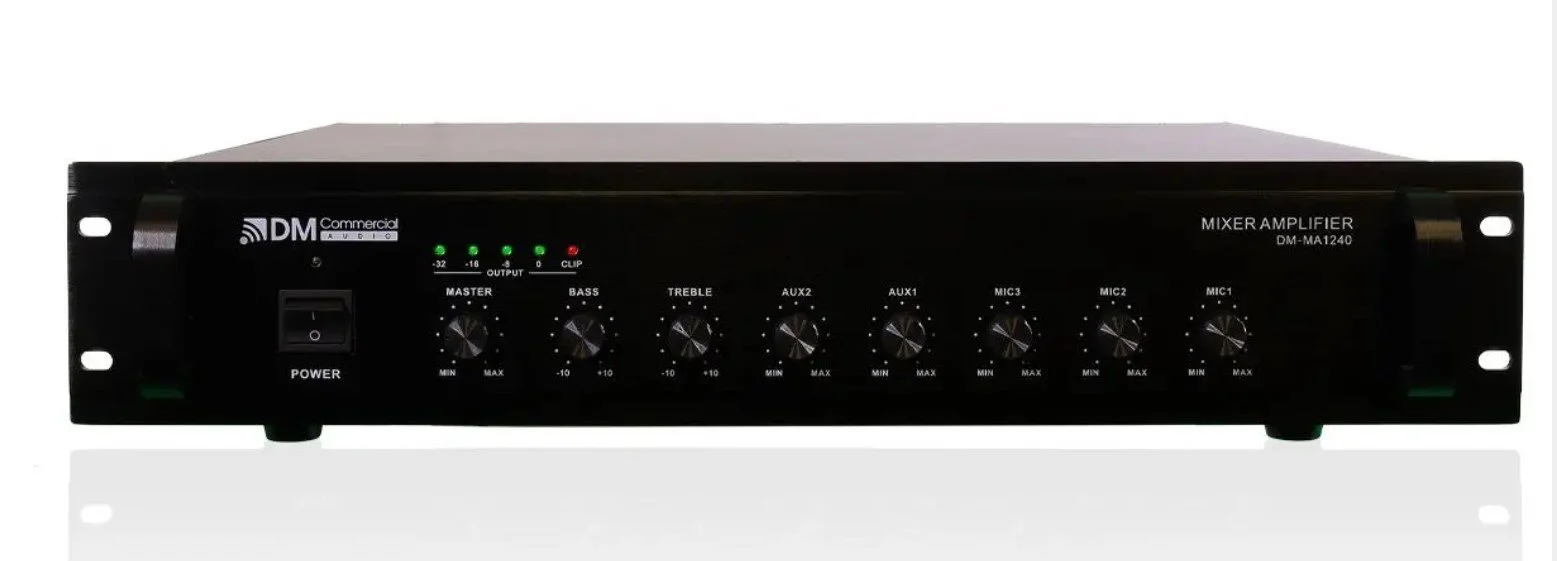

Dedicated Controls: Individual volume controls for MIC and AUX inputs, plus a master volume controller and independent BASS and TREBLE tone adjustment
Chassis Architecture: Premium aluminum alloy front panel with standard 19” 2U rack-mount height
Technical Specifications
ParameterSpecificationModelDM-MA1240Rated Power240 WattsSpeaker Output Modes
Low Impedance: 4–16 Ohms
Line Voltage: 70 Volt (20 Ohms) / 100 Volt (41 Ohms)
Microphone Inputs
MIC1 & MIC2: 600 Ohms (10mV)
Connectors: XLR and 6.35mm Combo Types
Aux Inputs2 RCA Groups (AUX1 & AUX2): 10k Ohms (200–470mV), UnbalancedLine OutputSingle RCA Connector: 0.775V (0dB)Frequency Response60Hz – 15kHz (±3dB)Total Harmonic Distortion (T.H.D.)<1% at 1kHz, 1/3 rated powerSignal-to-Noise Ratio (S/N)>75dBTone Adjustment
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10k Hz
Hardware Controls: Volume, Tone, Mute, Power Status Indicators: Signal, Clip, Protection, PowerAC Power Supply AC120V / 60Hz (AC Fuse: T6A)Power Consumption: 460W Dimensions
3.5”(H) x 19”(W) x 14.4”(D)
[89mm(H) x 483mm(W) x 366mm(D)]
Weight 29.7 lbs. (13.50 kg)
Package Contents:
(x1) Amplifier
(x1) User Manual
(x1) AC Power Cord
(x1) Audio Cable
